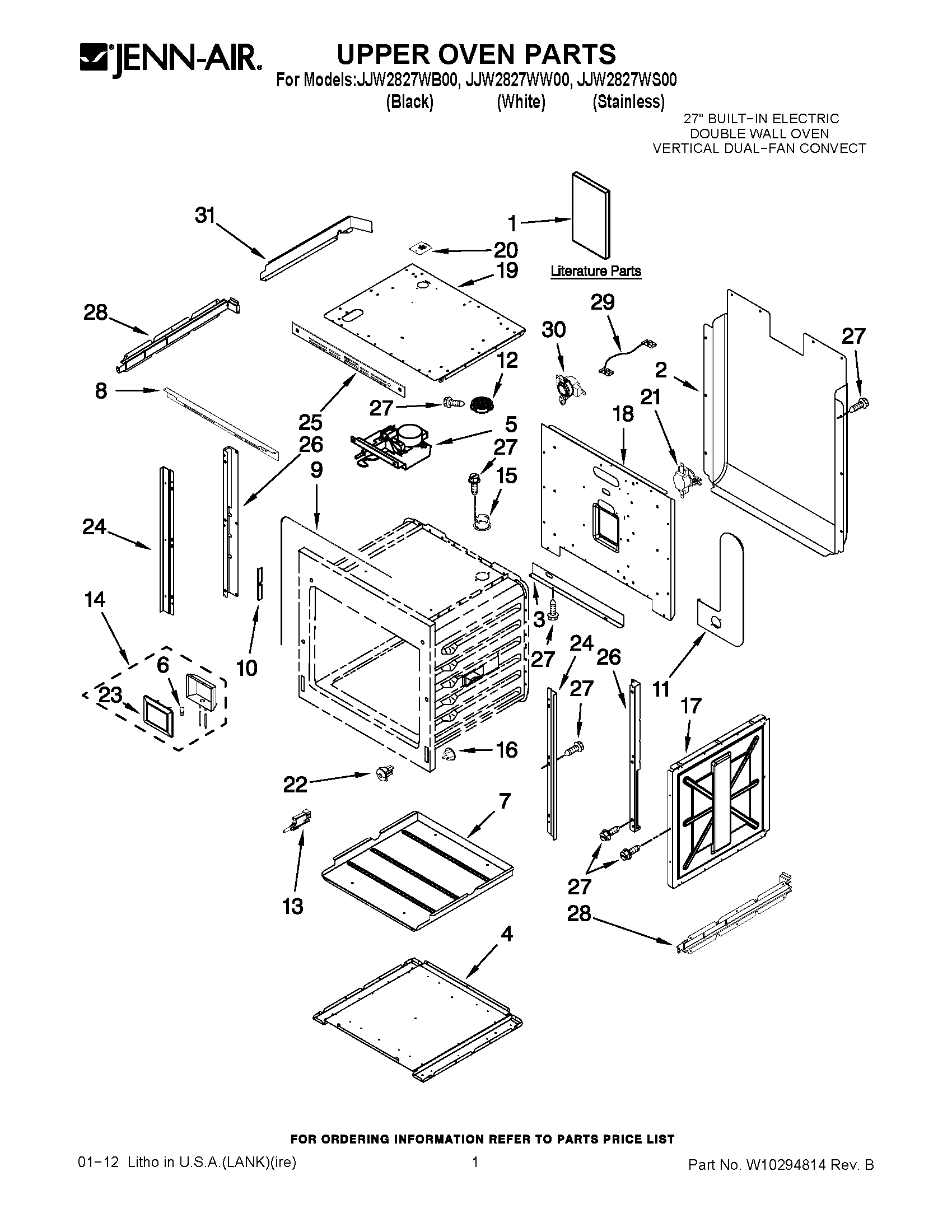

JJW2827WB00 01 – UPPER OVEN PARTS
Written by
in
JJW2827WB00 01 – UPPER OVEN PARTS
Products
Position
Product
NI
MAY W10213747
NI
MAY W10186990
1
TIPS, SAFE COOKING (ENGLISH)
1
MAY W10221394
1
ENERGY GUIDE
1
MAY W10221386
1
MAY W10213742
1
MAY W10213733
1
TIPS, SAFE COOKING (FRENCH)
2
MAY 2624F051-51
3
MAY W10254160
4
MAY W10280326
5
LATCH, DOOR
6
BULB, OVEN
7
MAY 3401F079-45
8
TRIM, CONTROL PANEL (TOP)
9
MAY W10213819
10
MAY W10176218
11
MAY 4006W218-45
12
SCREEN, SMOKE ELM.
13
MAY W10286173
14
MAY W10175989
15
MAY 8026P066-60
16
MAY 7718P021-60
17
MAY W10175995
18
MAY W10213725
19
MAY W10175999
20
MAY W10213792
21
SWITCH, HI LIMIT
22
MAY W10213745
23
MAY W10187003
24
MAY W10277587
25
MAY W10176015
26
MAY W10277423
26
MAY W10277424
27
MAY 7101P426- 60
28
MAY 3807F669-51
29
JUMPER, THERMAL SECONDARY
30
SWITCH, OVEN LIMIT
31
MAY W10187018
←
