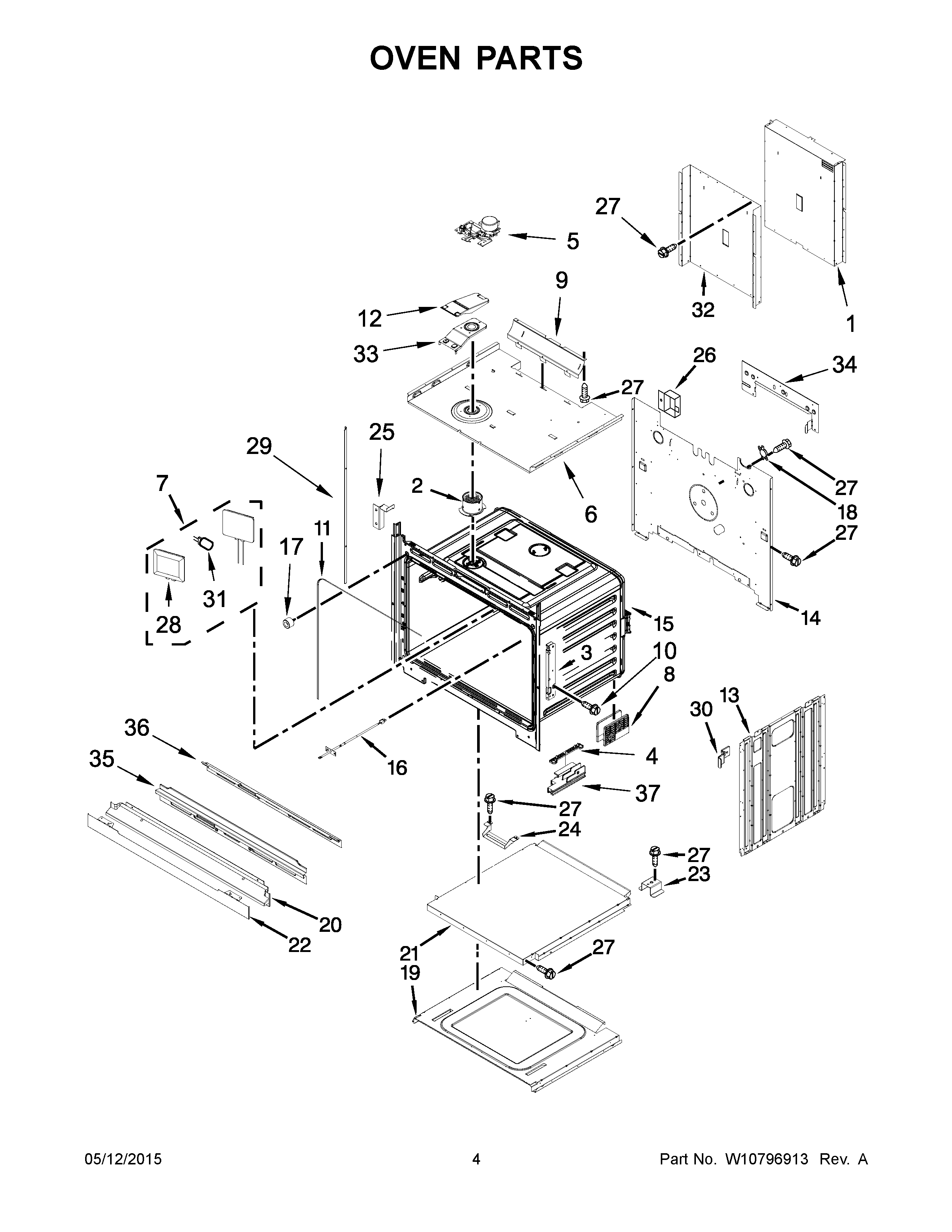

JJW2830DB00 03 – OVEN PARTS

Products

PositionProduct
NIMAY W10282944
NIINSULATION, WRAP
NILINER (NOT A SERVICEABLE PART)
1DUCT, CHASSIS BACK
2MAY W10282946
3MAY W10616802
4SPACER, BASE
5MAY W10314880
6MAY W10730172
7ASSEMBLY, OVEN LIGHT
8FOOT, BASE
9MAY W10641572
10MAY W10254050
11GASKET
12COVER, VENT EXHAUST
13SIDE, CHASSIS (RIGHT)
14MAY W10696134
16MAY W10622170
17BUMPER & SCREW
18THERMOSTAT
19MAY W10282900
20MAY W10351275
21CHASSIS, BOTTOM DUCT
22MAY W10351236
23MAY W10213759
24SPACER, CHASSIS BOTTOM DUCT
25BRACKET, SIDE COVER (LEFT)
25ABRACKET, SIDE COVER (RIGHT)
26MAY 8285593
27MAY 7101P426- 60
28LENS, LIGHT
29COVER, SIDE TRIM (LEFT)
29ACOVER, SIDE TRIM (RIGHT)
30MAY W10618106
31BULB, LIGHT
32DUCT, CHASSIS BACK (LOWER)
33BASE, VENT EXHAUST
34MAY W10588736
35MAY W10283040
36VENT, TOP 30"
37AMAY W10618104
37MAY W10618103
