JJW2830DS00 06 – INTERNAL OVEN PARTS – Aparts

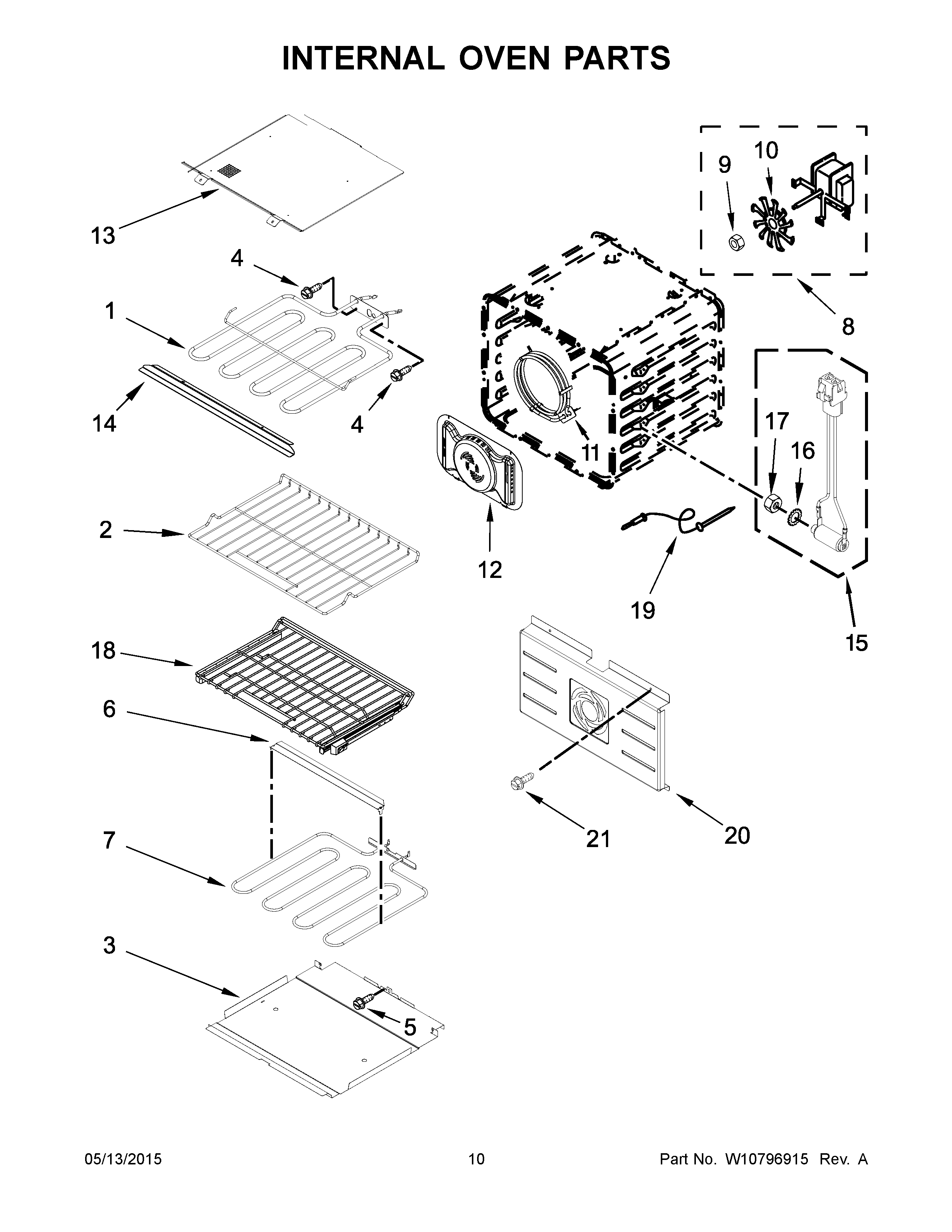

JJW2830DS00 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELEMENT, BROIL
2	RACK, OVEN
3	TRAY, HIDDEN BAKE
4	MAY 7101P376-60
5	MAY 7101P426- 60
6	CROSSBAR, HIDDEN BAKE TRAY
7	MAY W10546517
8	MAY W10722667
9	MAY W10631504
10	MAY W10631503
11	ELEMENT, CONVECTION
12	BAFFLE, BOW TIE
13	SHIELD, BROIL ELEMENT
14	SHIELD, BROIL FRONT
15	MAY W10524044
16	WASHER
17	LOCKNUT
18	MAY W10663550
19	PROBE-MEAT
20	COVER, BAFFLE
21	SCREW
