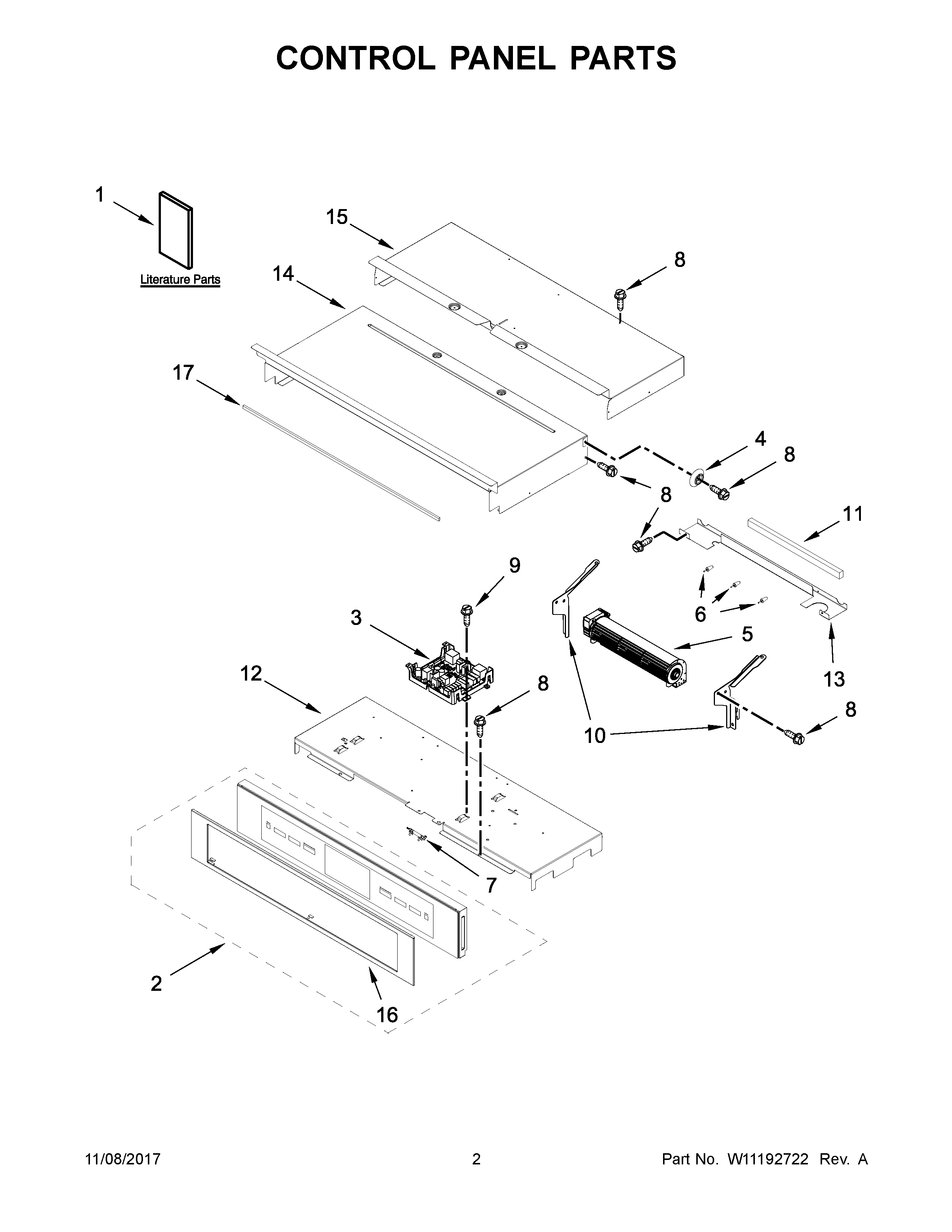

JJW2830DS02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	BRACKET, HARNESS
NI	HARNESS, EOL
NI	CLAMP, CONDUIT
NI	STRAP, LEAD GROUND
NI	MAY W10679413
NI	MAY W10775068
NI	MAY W10522152
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 4450800
NI	MAY W11033086
1A	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1	GUIDE, USE & CARE
2	MAY W10876357
3	CONTROL (WITH POWER SUPPLY)
4	SPACER, LATERAL
5	BLOWER
6	MAY W10351295
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	TRAY, ELECTRONIC
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 30
15	CHASSIS, COVER TOP BACK 30"
16	SKIN, CONTROL PANEL (STAINLESS)
17	GASKET, RUBBER
