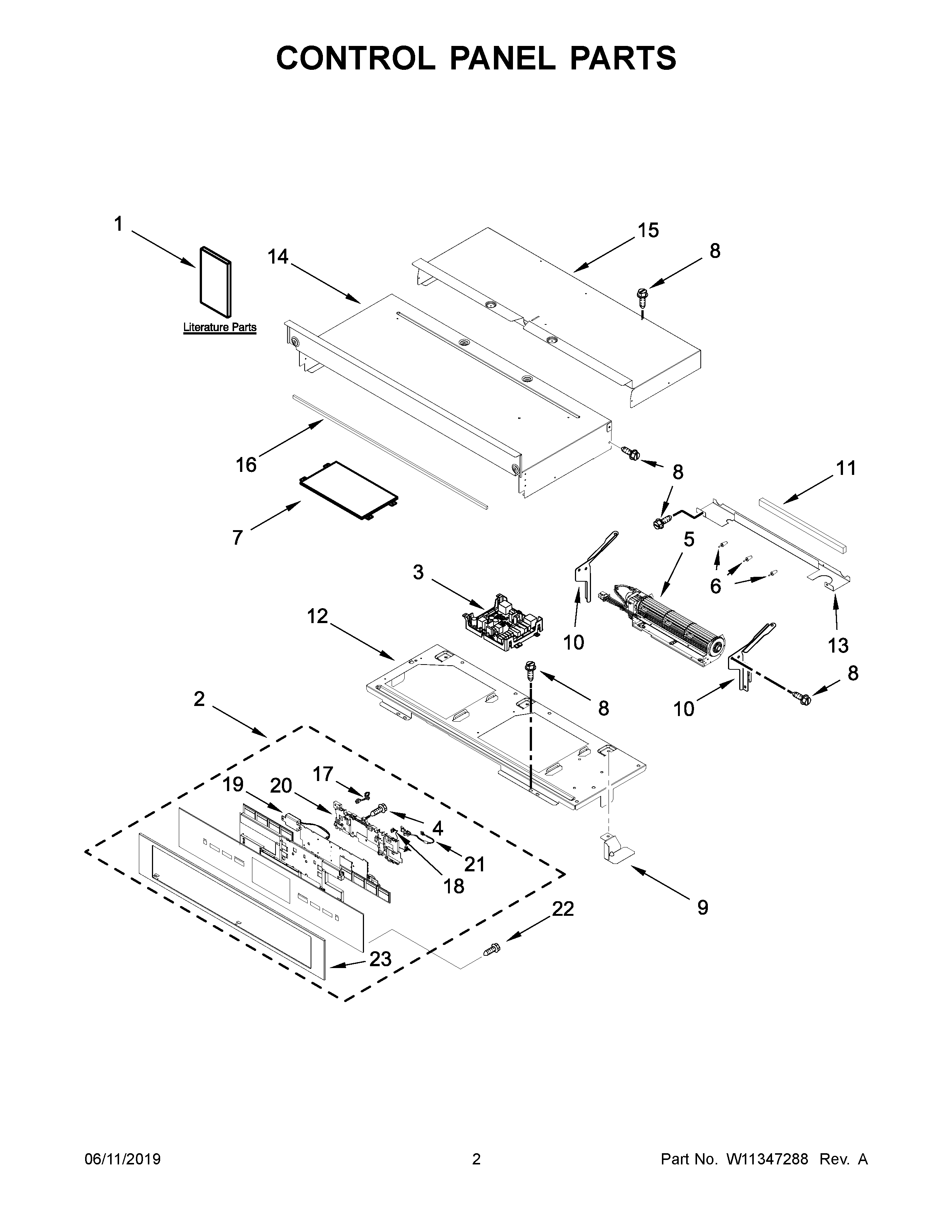

JJW2830IL00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICLIP, HARNESS
NIHARNESS, EOL
NIBRACKET, HARNESS
NISTRAP, LEAD GROUND
NIHARNESS, DOOR LATCH
NIJUMPER TOD
NIBAG, HARDWARE
NIHARNESS, SIGNAL
NIHARNESS, MAIN
NICLAMP, CONDUIT
NILINER (NOT A SERVICEABLE PART)
NIMAY 4450800
1CSHEET, TECH
1BDIAGRAM, WIRING
1GUIDE, USE & CARE (OVEN)
1AINSTRUCTIONS, INSTALLATION
2MAY W11196774
3MAY W11281214
4MAY W10489172
5BLOWER
6MAY W10351295
7SHIELD, CHASSIS TOP COVER
8MAY 7101P426- 60
9SUPPORT, ELECTRONIC TRAY
10BRACKET, BLOWER (LEFT)
10ABRACKET, BLOWER (RIGHT)
11BLOCK, FOAM
12TRAY, ELECTRONIC
13CHASSIS, BACK DIVIDER
14CHASSIS, COVER TOP FRONT 30"
15CHASSIS, COVER TOP BACK 30"
16GASKET, RUBBER
17HARNESS, KEYPAD (LEFT TO CENTER)
18HARNESS, KEYPAD (RIGHT TO CENTER)
19ASSEMBLY, SPEAKER
20HOUSING
21JUMPER HARNESS, POWER SUPPLY
22Screw (2) (Black)
23SKIN, CONTROL PANEL (STAINLESS)
