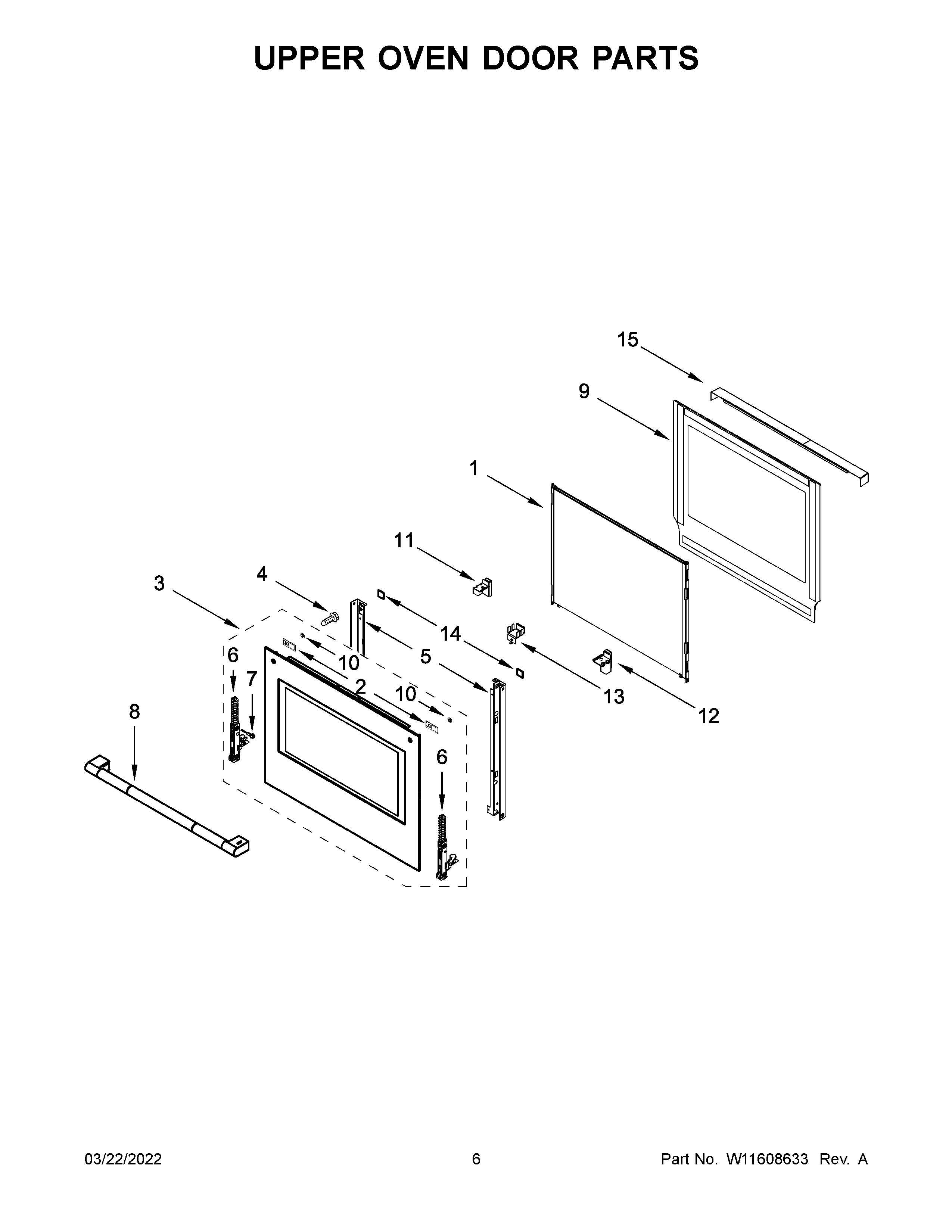

JJW2830LL00 04 – UPPER OVEN DOOR PARTS

JJW2830LL00 04 – UPPER OVEN DOOR PARTS

Written by

in

JJW2830LL00 04 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1W11600213 Whirlpool Oven Door Glass
2W10650497 Whirlpool Spacer
3W11602612 Whirlpool Oven Door Glass
4W11602624 Whirlpool Oven Screw
5W11598126 Whirlpool Support Bracket
5AW11598127 Whirlpool Support Bracket
6HINGE, DOOR (LEFT)
6AHINGE, DOOR (RIGHT)
7WP3196183 Whirlpool Screw
8W11342060 Whirlpool Door Handle
9W11602610 Whirlpool Oven Glass Door
10W11676355 Whirlpool Washer
11W11598130 Whirlpool Oven Support Bracket
12W11598128 Whirlpool Oven Support Bracket
13W11598131 Whirlpool Oven Clip
14WPW10517428 Whirlpool Spacer
15TRIM-VENT
