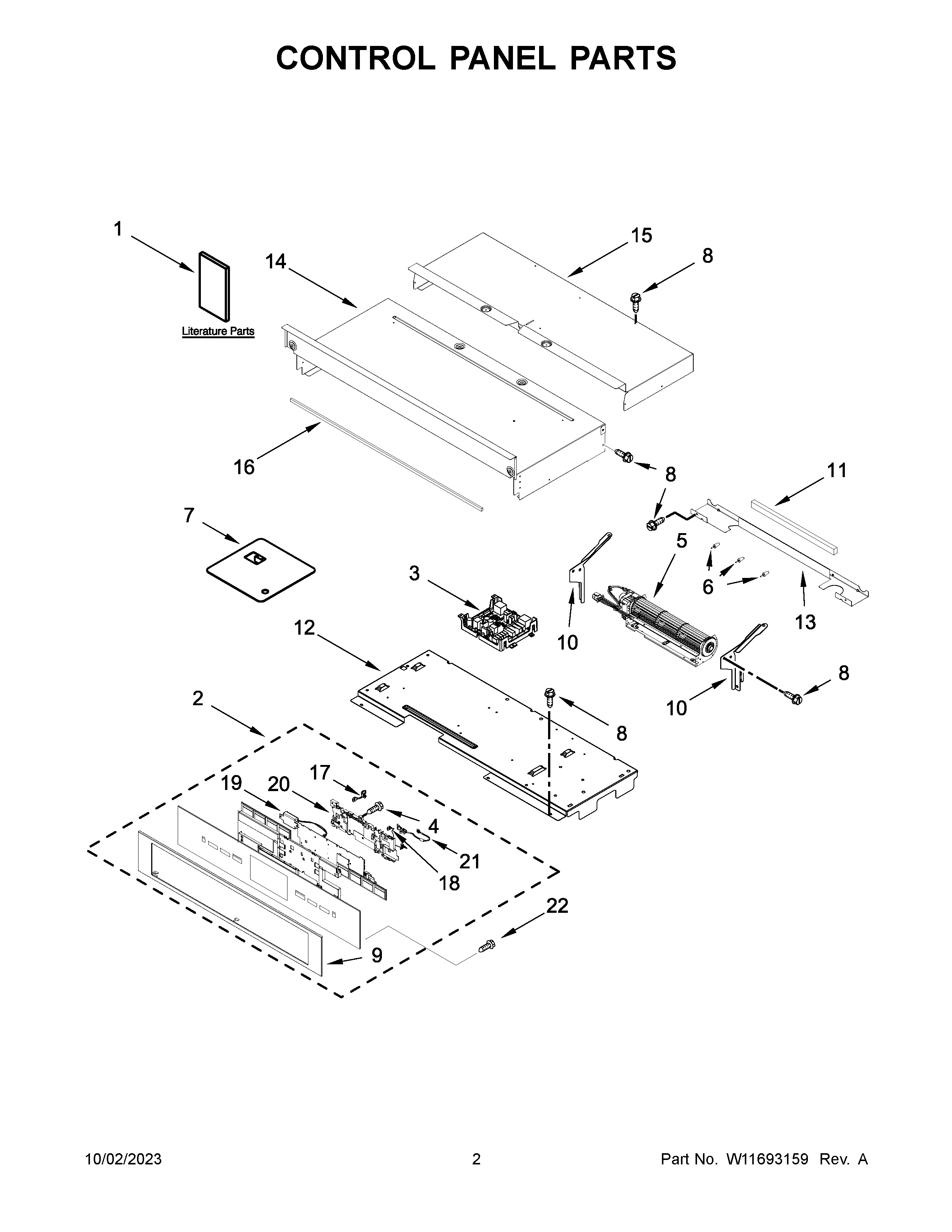

JJW2830LL01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	STRAP, LEAD GROUND
NI	W11727826 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W10655464 Whirlpool Bracket
NI	16515 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	HARNS-WIRE
NI	W11331688 Whirlpool Wire Harness
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W11699910 Whirlpool Wire Harness
1	OWNER'S MANUAL
1B	TECH SHEET
1A	QUICK START GUIDE
2	W11598133 Whirlpool Console + Core
3	W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4	W10489172 Whirlpool Screw
5	BLOWER
6	W10351295 Whirlpool Bumper Assembly
7	COVER, WIFI
8	SCREW
9	W11197498 Whirlpool Oven Control Panel
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	TRAY, ELECTRONIC
13	DIVIDER, CHASSIS BACK
14	COVER, CHASSIS TOP FRONT (30")
15	COVER, 30 IN CHASSIS TOP BACK
16	W10728475 Whirlpool Foam Seal
17	W10566973 Whirlpool Wire Harness
18	W10524350 Whirlpool Wire Harness
19	W11123146 Whirlpool Speaker
20	W10668510 Whirlpool Housing
21	W10575307 Whirlpool Wire Harness
22	SCREW (BLACK)
