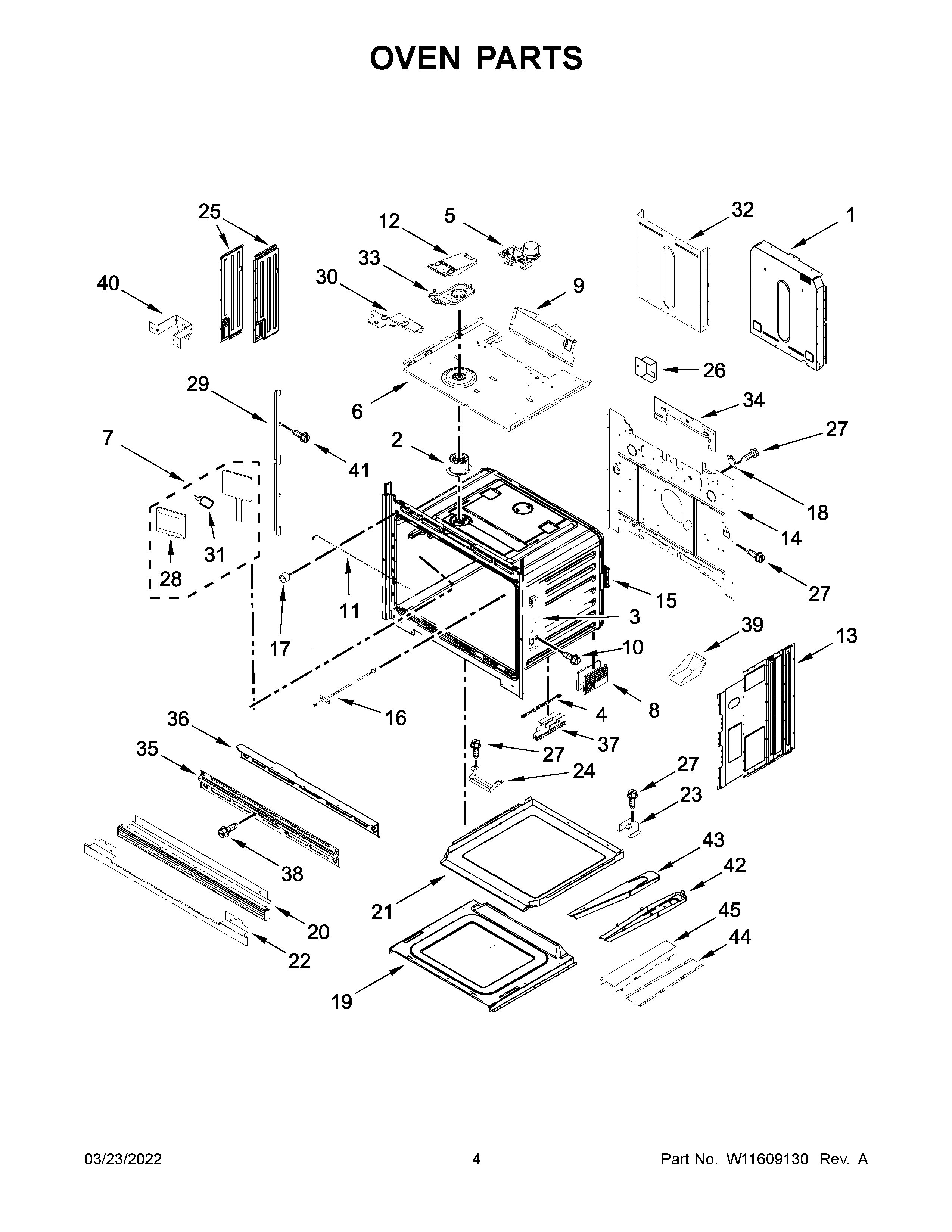

JJW2830LM00 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	INSULATION, CAVITY
NI	CABINET (NOT A SERVICEABLE PART)
1	W11165250 Whirlpool Rear Cover
2	W11240525 Whirlpool Vent Tube
3A	W11712406 Whirlpool Receiver Hinge
3	W11712405 Whirlpool Receiver Hinge
4	W11598152 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11292252 Whirlpool Oven Light
8	W11598170 Whirlpool Level Foot
9	W10904163 Whirlpool Vent Deflector
10	WPW10254050 Whirlpool Screw
11	W11676903 Whirlpool Gasket
12	COVER, VENT EXHAUST
13	W11165274 Whirlpool Side Panel
14	BACK, CHASSIS
16	W11598120 Whirlpool Thermostat
17	W11598125 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	COVR-ACESS
20	W11369889 Whirlpool Heat Deflector
21	COVR-ACESS
22	W11598135 Whirlpool Trim
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25A	W11598151 Whirlpool Side Cover
25	W11598150 Whirlpool Side Cover
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	WPW10519866 Whirlpool Light
29A	W11235461 Whirlpool Rail Mounting
29	W11235460 Whirlpool Mounting Rail
30	BRACKET, TOP FRONT
31	WPW10472384 Whirlpool Light Bulb
32	W11134657 Whirlpool Rear Cover
33	BASE, VENT EXHAUST
34	BRACKET, U-SHAPE
35	W11235482 Whirlpool Exhaust Vent
36	W11715951 Whirlpool Vent Trim
37A	W11598168 Whirlpool Leveling Foot
37	W11598169 Whirlpool Foot Level Assembly
38	WPY706189 Whirlpool Stove Screw
39	DEFLECTOR, LOWER BACK EXHAUST
40	HAT BRACKET, VENT
41	W11602623 Whirlpool Screw
42	BASE, TOP BACK EXHAUST
43	COVER, TOP BACK EXHAUST
44	BASE, LOWER BACK EXHAUST
45	COVER, LOWER BACK EXHAUST
