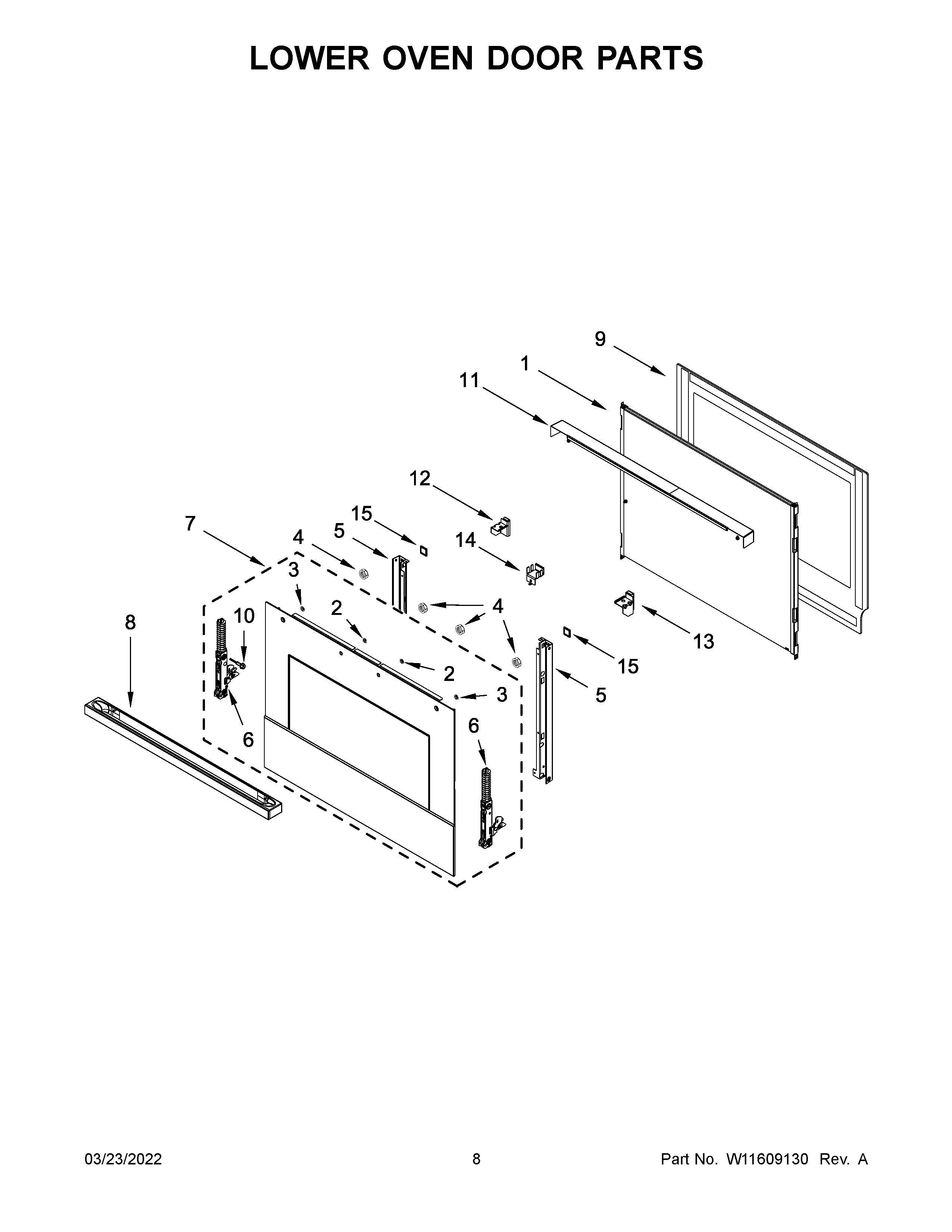

JJW2830LM00 05 – LOWER OVEN DOOR PARTS

JJW2830LM00 05 – LOWER OVEN DOOR PARTS

Written by

in

JJW2830LM00 05 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1W11600213 Whirlpool Oven Door Glass
2SPACER, HANDLE
3W11676355 Whirlpool Washer
4W11602632 Whirlpool Nut Assembly
5W11598126 Whirlpool Support Bracket
5AW11598127 Whirlpool Support Bracket
6HINGE, DOOR (LEFT)
6AHINGE, DOOR (RIGHT)
7W11602613 Whirlpool Door Glass
8W11411894 Whirlpool Door Handle Assembly
9W11602610 Whirlpool Oven Glass Door
10WP3196183 Whirlpool Screw
11TRIM-VENT
12W11598130 Whirlpool Oven Support Bracket
13W11598128 Whirlpool Oven Support Bracket
14W11598131 Whirlpool Oven Clip
15WPW10517428 Whirlpool Spacer
