JJW2830WB02 02 – UPPER OVEN PARTS
Written by
in

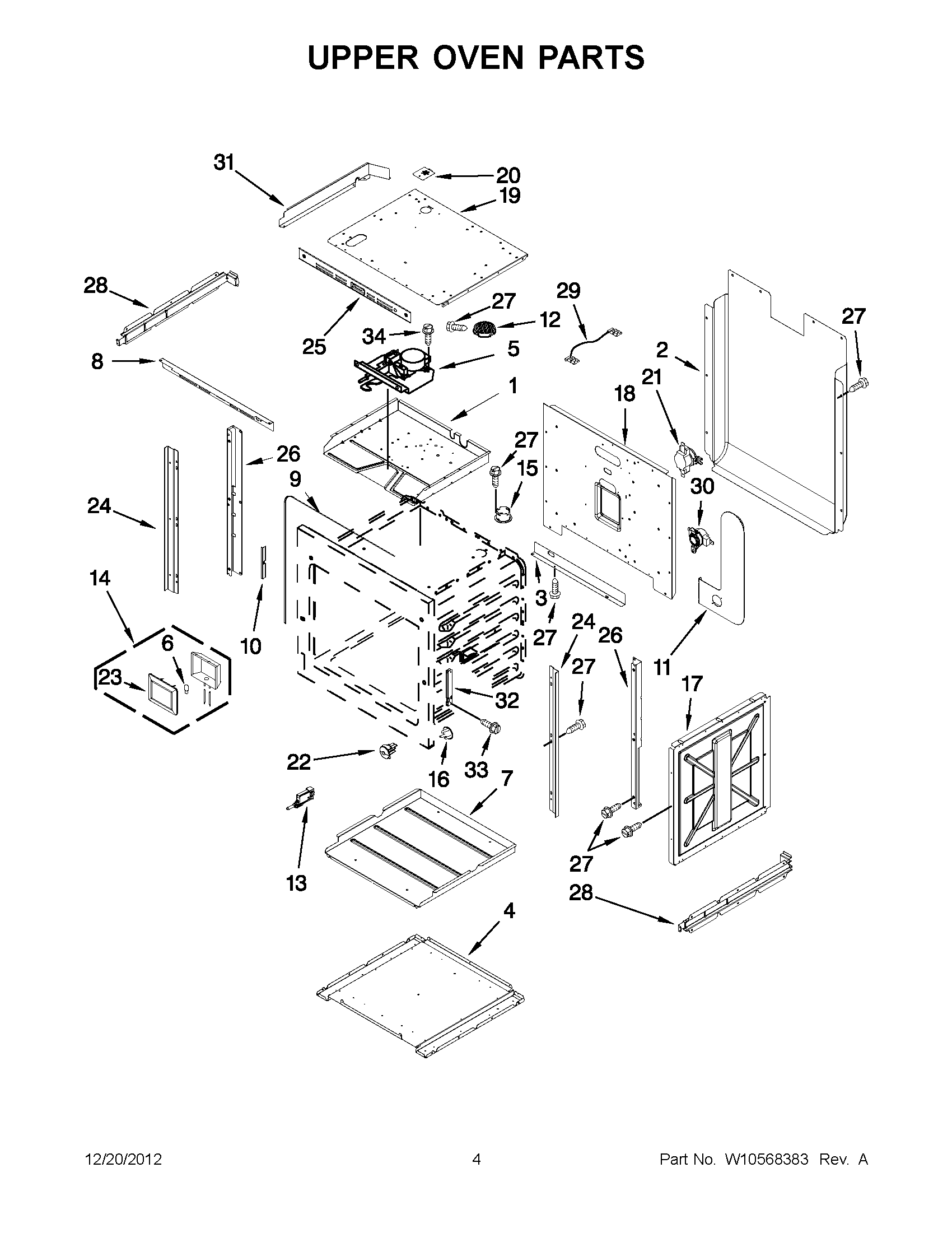

JJW2830WB02 02 – UPPER OVEN PARTS
Products
Position
Product
NI
MAY W10186989
NI
MAY W10213750
1
MAY W10186749
2
MAY 2624F051-51
3
MAY W10254160
4
MAY W10280327
5
LATCH, DOOR
6
BULB, OVEN
7
MAY 3401F079-45
8
TRIM, CTRL PNL TOP
9
MAY W10213818
10
MAY W10176218
11
MAY 4006W217-45
12
SCREEN, SMOKE ELM.
13
MAY W10286173
14
MAY W10175989
15
MAY 8026P065-60
16
MAY 7718P033-60
17
MAY W10175995
18
MAY W10213724
19
MAY W10175998
20
MAY W10213792
21
SWITCH, HI LIMIT
22
MAY W10213745
23
MAY W10187003
24
MAY W10277587
25
MAY W10176014
26
MAY W10277423
26
MAY W10277424
27
MAY 7101P426- 60
28
MAY 3807F669-51
29
JUMPER, THERMAL SECONDARY
30
SWITCH, OVEN LIMIT
31
MAY W10187018
32
MAY W10175993
33
MAY W10254050
34
MAY W10236043
←
