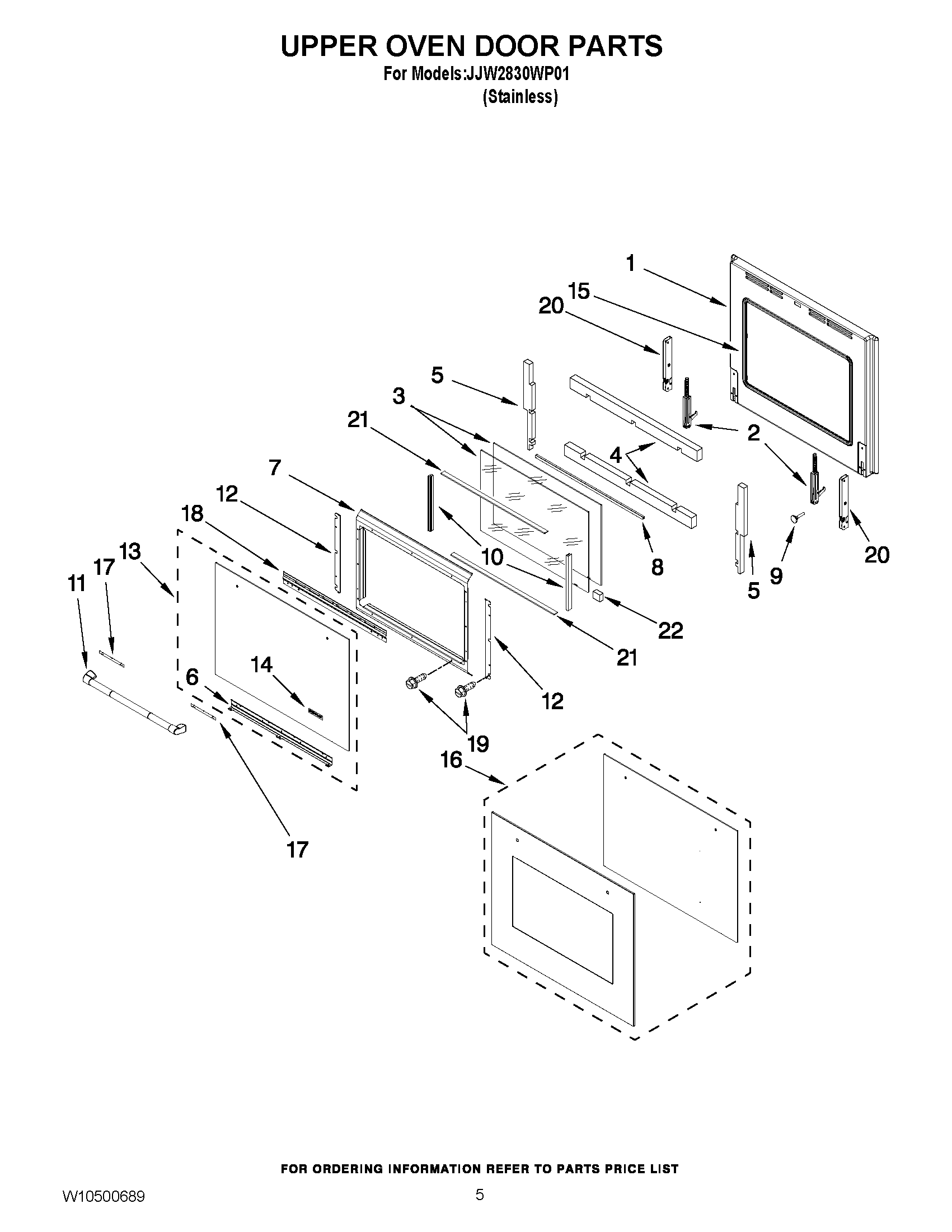

JJW2830WP01 03 – UPPER OVEN DOOR PARTS

JJW2830WP01 03 – UPPER OVEN DOOR PARTS

Written by

in

JJW2830WP01 03 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1MAY W10187019
2HINGE, DOOR (2) (STAINLESS)
3MAY W10176100
4MAY W10273676
5MAY W10273591
6BRACKET, DOOR CLIP
7MAY W10176103
8MAY W10305979
9MAY W10176233
10MAY W10277621
11HANDLE, DOOR
12MAY W10186882
13GLASS, OUTER DOOR ASSY.
14MAY W10159578
15MAY W10213803
16KIT, GLASS ASSY.
17MAY W10213723
18MAY W10213720
19MAY 7101P426- 60
20MAY W10175993
21INSULATION, OVEN DOOR
22MAY W10296505
