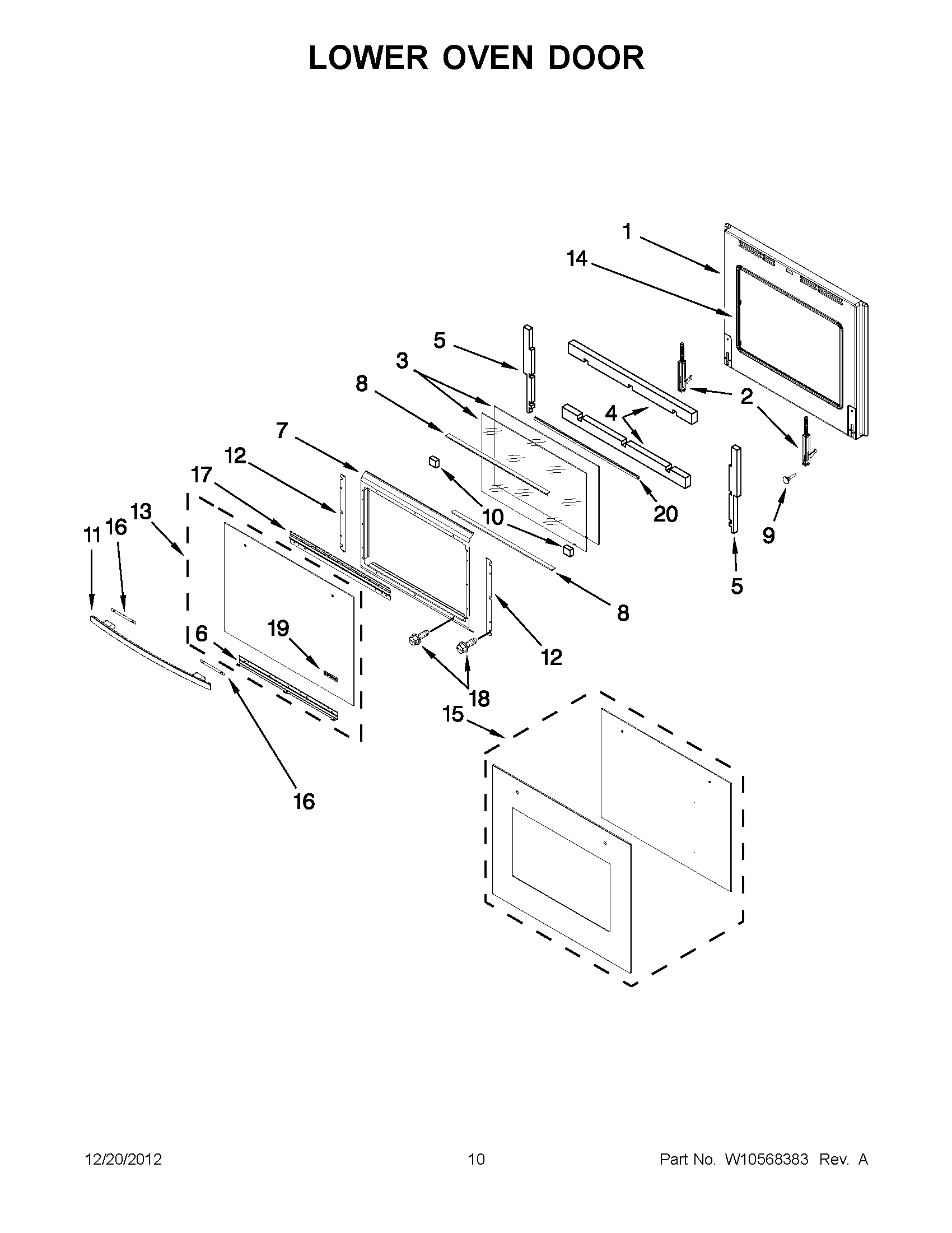

JJW2830WS02 05 – LOWER OVEN DOORadmin2025-04-26T09:31:32+00:00JJW2830WS02 05 – LOWER OVEN DOOR
Products
| Position | Product |
|---|
| NI | MAY 7002P276-60 |
| 1 | MAY W10187019 |
| 2 | HINGE, DOOR (2) (STAINLESS) |
| 2 | HINGE, DOOR (2) (BLK/WHT/OILD BRNZ) |
| 3 | MAY W10176100 |
| 4 | MAY W10273676 |
| 5 | MAY W10273591 |
| 6 | BRACKET, DOOR CLIP |
| 7 | MAY W10176103 |
| 8 | INSULATION, OVEN DOOR |
| 9 | MAY W10176233 |
| 10 | MAY W10296505 |
| 11 | MAY W10186756 |
| 11 | MAY W10186757 |
| 11 | MAY W10186755 |
| 11 | MAY W10186754 |
| 12 | MAY W10186882 |
| 13 | MAY W10186888 |
| 13 | GLASS OUTER DOOR ASSY. (BLACK/OILED BRONZE) |
| 14 | MAY W10213803 |
| 15 | KIT, GLASS ASSY. (STAINLESS) |
| 15 | MAY W10176224 |
| 15 | MAY W10277594 |
| 15 | KIT, GLASS ASSY. (BLACK) |
| 16 | MAY W10213722 |
| 17 | MAY W10176126 |
| 18 | MAY 7101P426- 60 |
| 19 | ASSEMBLY, BADGE (OILED BRONZE) |
| 19 | ASSEMBLY, BADGE (BLACK) |
| 19 | ASSEMBLY, BADGE (WHITE) |
| 19 | ASSEMBLY, BADGE (STAINLESS) |
| 20 | MAY W10305979 |
