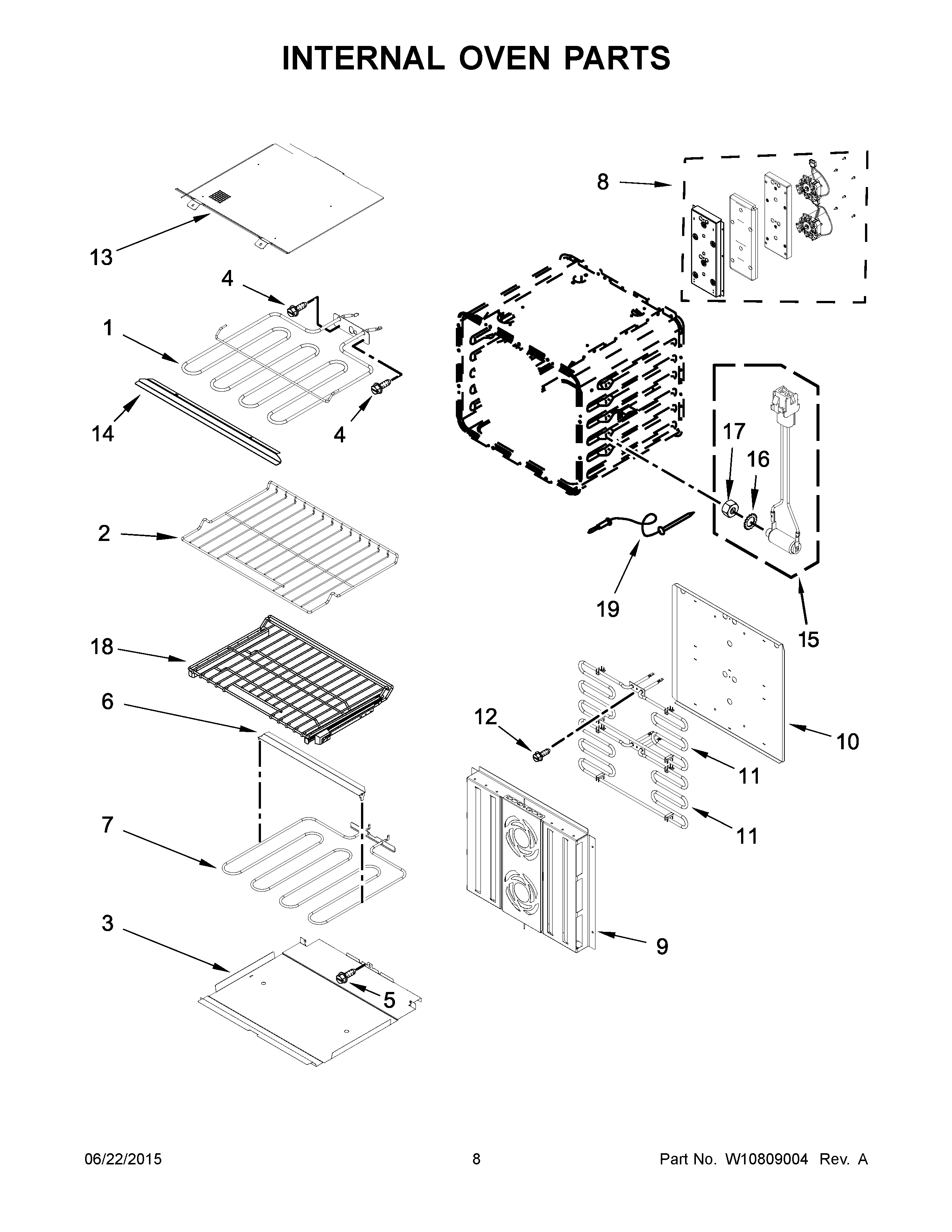

JJW3430DB00 05 – INTERNAL OVEN PARTS

JJW3430DB00 05 – INTERNAL OVEN PARTS

Written by

in

JJW3430DB00 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELEMENT, BROIL
2RACK, OVEN
3TRAY, HIDDEN BAKE
4MAY 7101P376-60
5MAY 7101P426- 60
6CROSSBAR, HIDDEN BAKE TRAY
7MAY W10546517
8MAY W10559986
9ASSEMBLY, BAFFLE
10MAY W10559982
11ELEMENT, CONVECTION
12MAY W10236129
13SHIELD, BROIL ELEMENT
14SHIELD, BROIL FRONT
15MAY W10524044
16WASHER
17LOCKNUT
18MAY W10663550
19PROBE-MEAT
