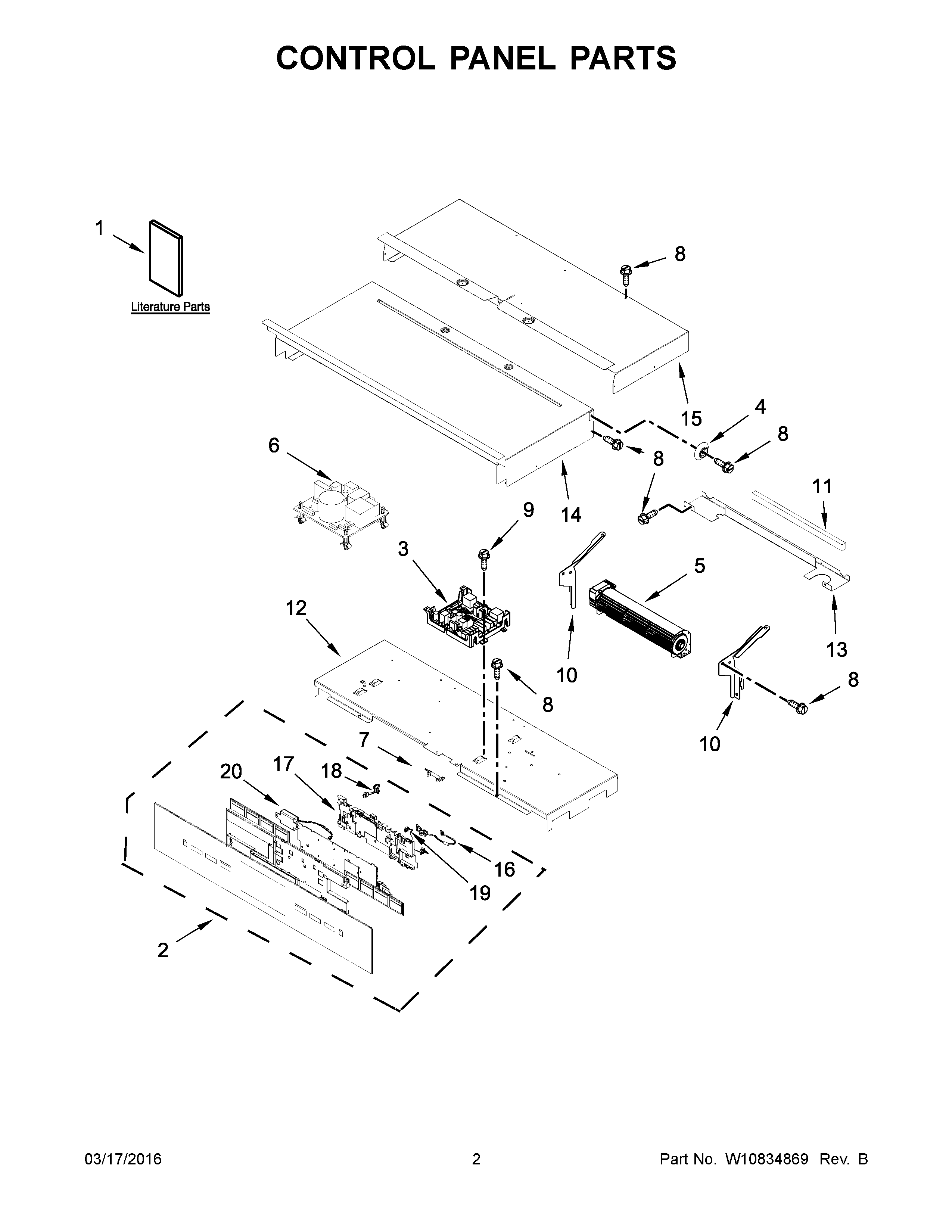

JJW3430DB01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	HARNESS, EOL
NI	CLIP, HARNESS
NI	BRACKET, HARNESS
NI	MAY W10775068
NI	STRAP, LEAD GROUND
NI	HARNESS, SIGNAL
NI	BRACKET, FUSE
NI	ASSEMBLY, ANTENNA & HOUSING
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10571360
NI	MAY 4450800
NI	CLAMP, CONDUIT
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
2	MAY W10524555
3	MANAGER, APPLIANCE
4	SPACER, LATERAL
5	BLOWER
6	BOARD, POWER SUPPLY
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	MAY W10694467
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 30
15	CHASSIS, COVER TOP BACK 30"
16	JUMPER HARNESS, POWER SUPPLY
17	HOUSING
18	HARNESS, KEYPAD (LEFT TO CENTER)
19	HARNESS, KEYPAD (RIGHT TO CENTER)
20	ASSEMBLY, SPEAKER
