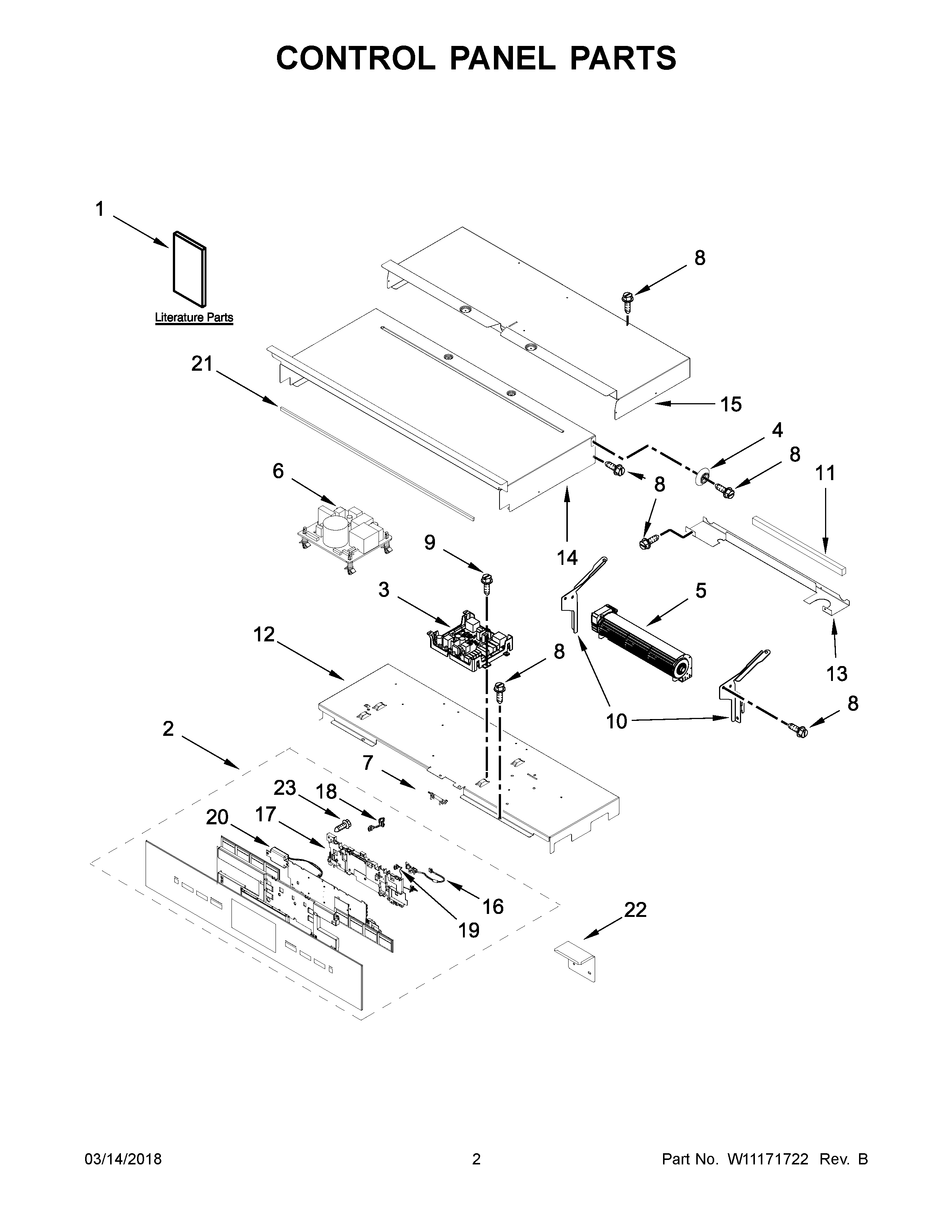

JJW3430DB02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLAMP, CONDUIT
NI	TIE, CABLE
NI	CLIP, HARNESS
NI	HARNESS, EOL
NI	BRACKET, HARNESS
NI	MAY W10775068
NI	STRAP, LEAD GROUND
NI	HARNESS, SIGNAL
NI	ASSEMBLY, ANTENNA & HOUSING
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 4450800
NI	MAY W10571360
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1D	INSTRUCTIONS, UNDERCOUNTER INSTALL
1C	GUIDE, WIFI CONNECTIVITY
2	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
3	MANAGER, APPLIANCE
4	SPACER, LATERAL
5	BLOWER
6	BOARD, POWER SUPPLY
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	TRAY, ELECTRONIC
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 30
15	CHASSIS, COVER TOP BACK 30"
16	JUMPER HARNESS, POWER SUPPLY
17	HOUSING
18	HARNESS, KEYPAD (LEFT TO CENTER)
19	HARNESS, KEYPAD (RIGHT TO CENTER)
20	ASSEMBLY, SPEAKER
21	GASKET, RUBBER
22	SHIELD, WIFI ACCESS
23	MAY W10489172
