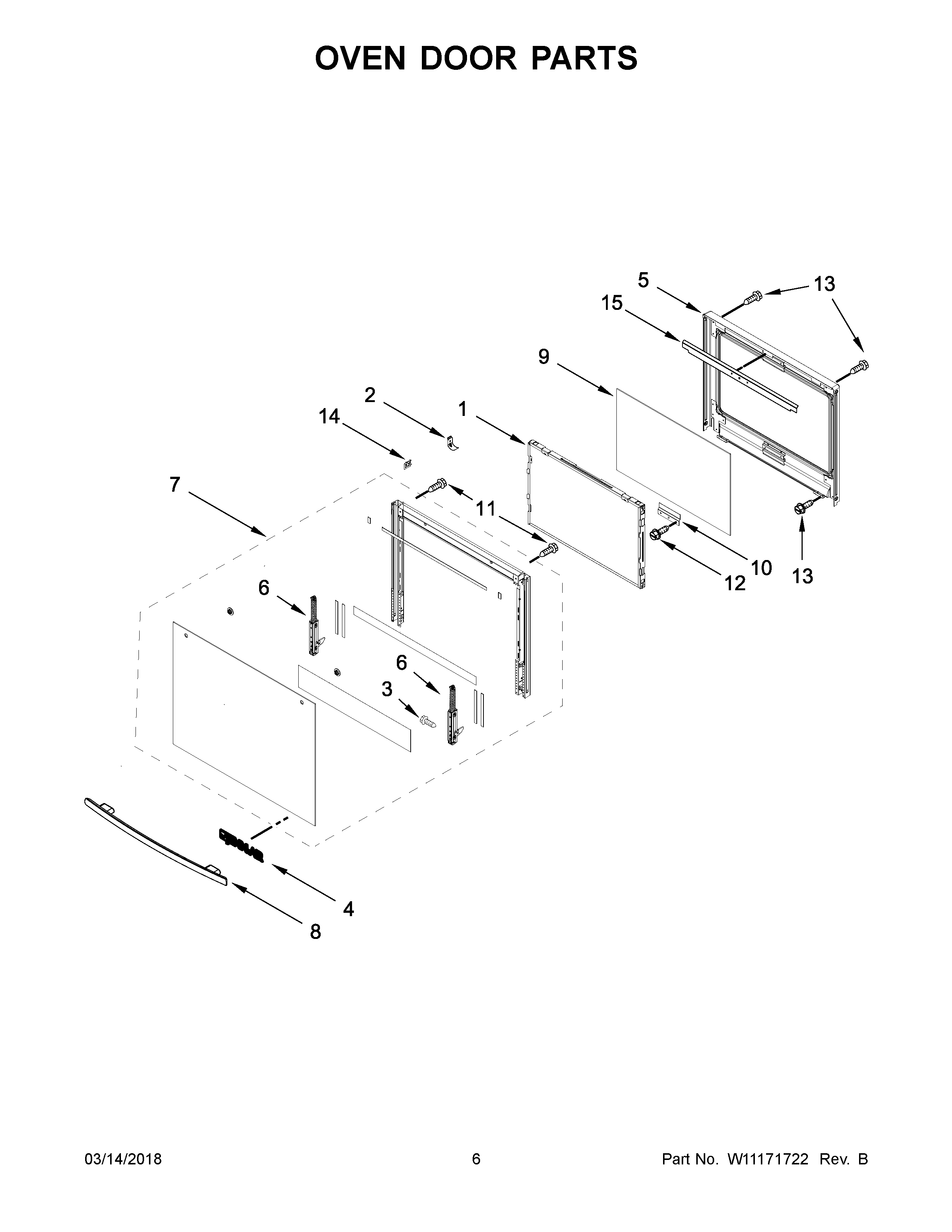

JJW3430DB02 04 – OVEN DOOR PARTS

JJW3430DB02 04 – OVEN DOOR PARTS

Written by

in

JJW3430DB02 04 – OVEN DOOR PARTS

Products

Position	Product
1	MAY W10347596
2	MAY W10284285
3	SCREW
4	ASSEMBLY, BADGE (BLACK)
5	MAY W10709147
6	HINGE, SLOW CLOSE DOOR
7	ASSEMBLY, DOOR (BLACK)
8	ASSEMBLY, DOOR HANDLE (BLACK)
9	GLASS, INNER
10	MAY W10284297
11	SCREW
12	MAY 7101P426- 60
13	Screw (2) (Black)
14	MAY W10653954
15	SHIELD, DOOR LINER
