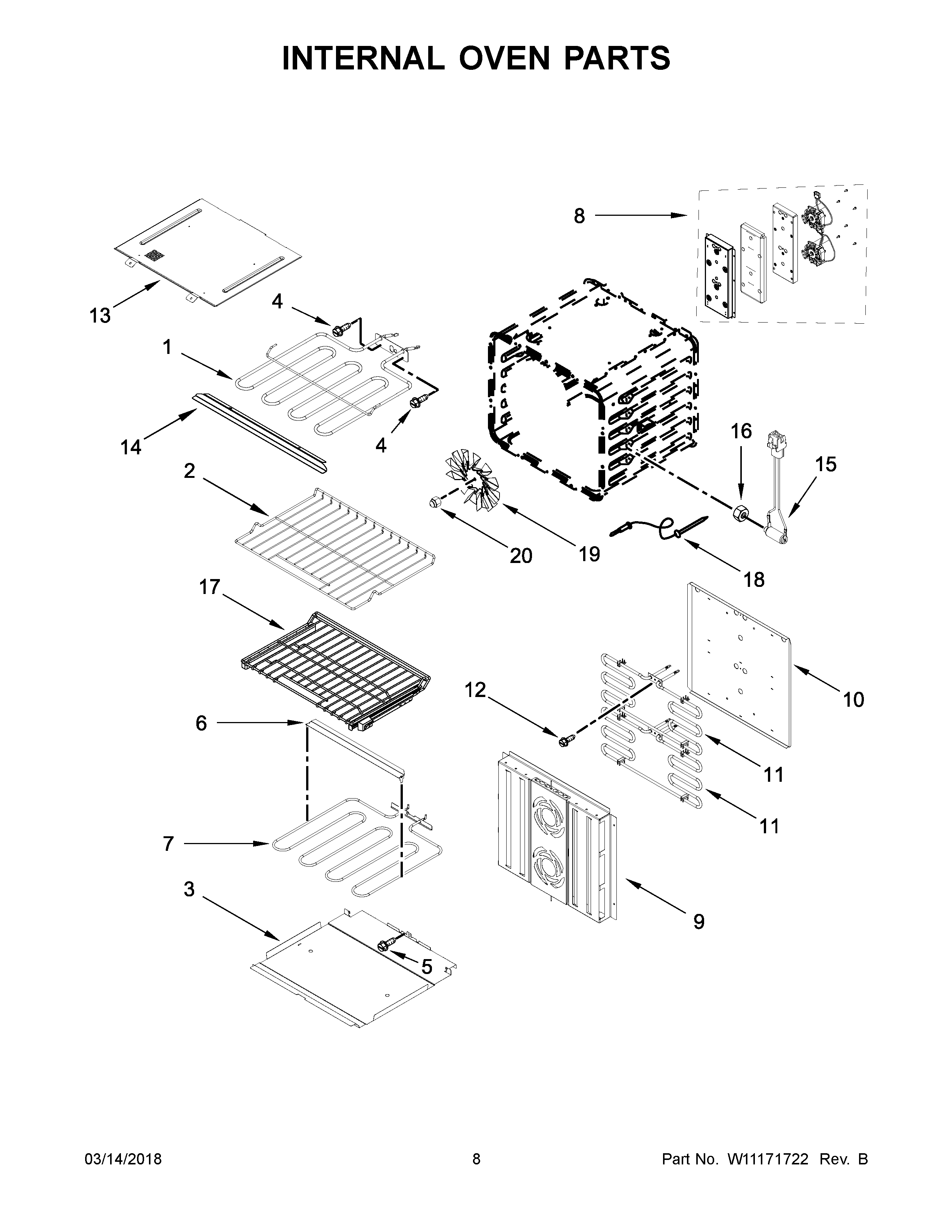

JJW3430DB02 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELEMENT, BROIL
2RACK, OVEN
3TRAY, HIDDEN BAKE
4MAY 7101P434-60
5MAY 7101P426- 60
6CROSSBAR, HIDDEN BAKE TRAY
7MAY W10546517
8ASSEMBLY, CONVECTION MOTOR
9ASSEMBLY, BAFFLE
10SHIELD, CONVECTION
11ELEMENT, CONVECTION
12MAY W10236129
13SHIELD, BROIL ELEMENT
14SHIELD, BROIL FRONT
15JACK, MEAT PROBE
16NUT, LOCKING
17RACK, SLIDING
18PROBE-MEAT
19MAY W10213746
20MAY W10631504
20AMAY W10213749
