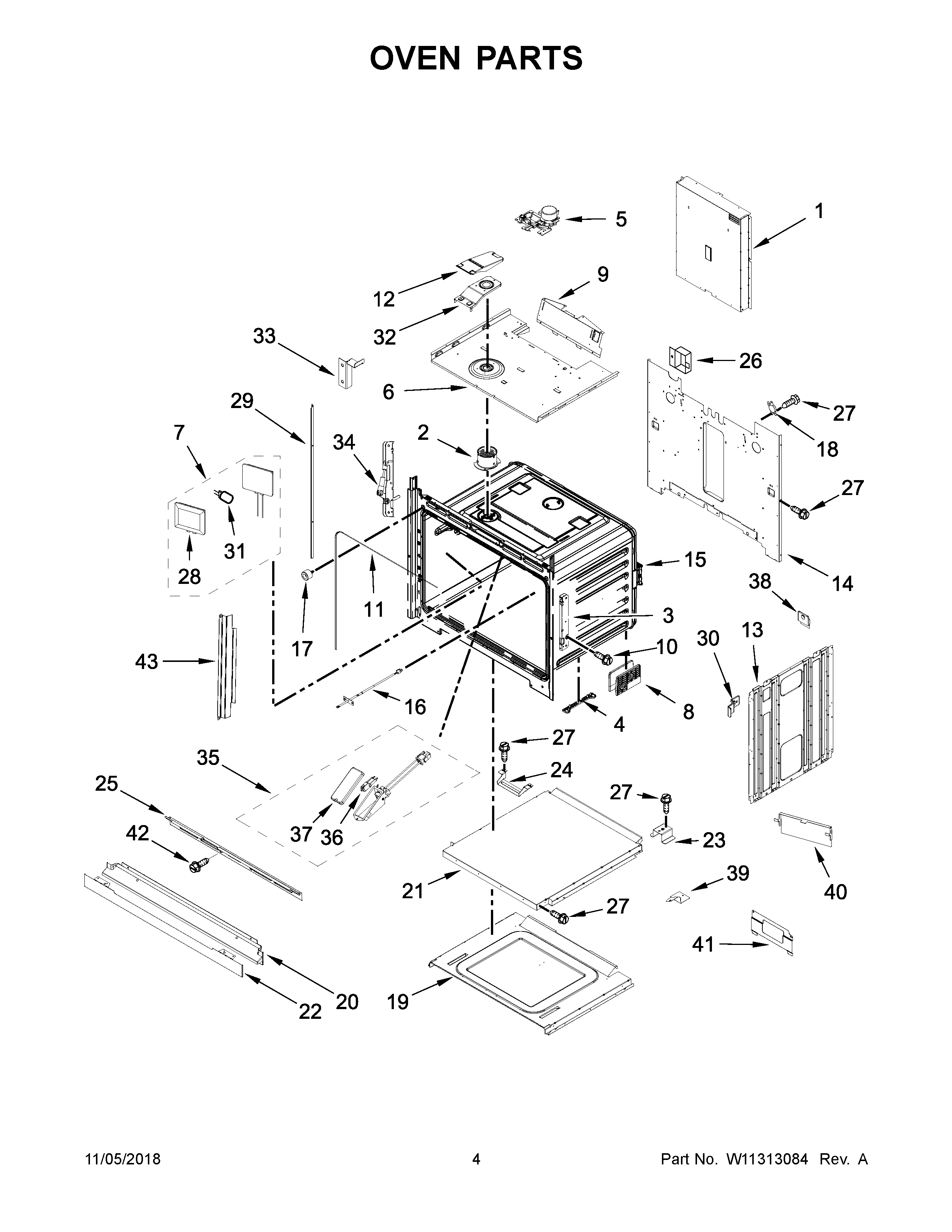

JJW3430DB03 03 – OVEN PARTS

JJW3430DB03 03 – OVEN PARTS

Written by

in

JJW3430DB03 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, CAVITY
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, CONTROL KNOB
NI	INSULATION, WRAP
1	DUCT, CHASSIS BACK
2	TUBE, VENT
3	MAY W10616802
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	ASSEMBLY, OVEN LIGHT
8	FOOT, BASE
9	DEFLECTOR, BLOWER
10	MAY W10254050
11	GASKET
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (LEFT)
13A	SIDE, CHASSIS (RIGHT)
16	MAY W10622170
17	BUMPER & SCREW
18	THERMOSTAT
19	BASE, CHASSIS
20	MAY W10351275
21	CHASSIS, BOTTOM DUCT
22	MAY W10351236
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	VENT, TOP 30"
26	MAY 8285593
27	MAY 7101P426- 60
28	LENS, LIGHT
29A	COVER, SIDE TRIM (BLACK (RIGHT))
29	COVER, SIDE TRIM (BLACK (LEFT))
30	SPACERS, FRONT
31	BULB, LIGHT
32	BASE, VENT EXHAUST
33	BRACKET, SIDE COVER (LEFT)
33A	BRACKET, SIDE COVER (RIGHT)
34	RECEIVER, SLOW CLOSE HINGE
35	ASSEMBLY, LIGHT (TOP)
36	BULB, OVEN
37	LENS
38	SPACER, CENTER
39A	SHIELD. BOTTOM (RIGHT)
39	SHIELD. BOTTOM (LEFT)
40	SHIELD, INNER
41	SHIELD, OUTER
42	MAY 7101P427-60
43	SHIELD, FRONT FRAME HEAT
