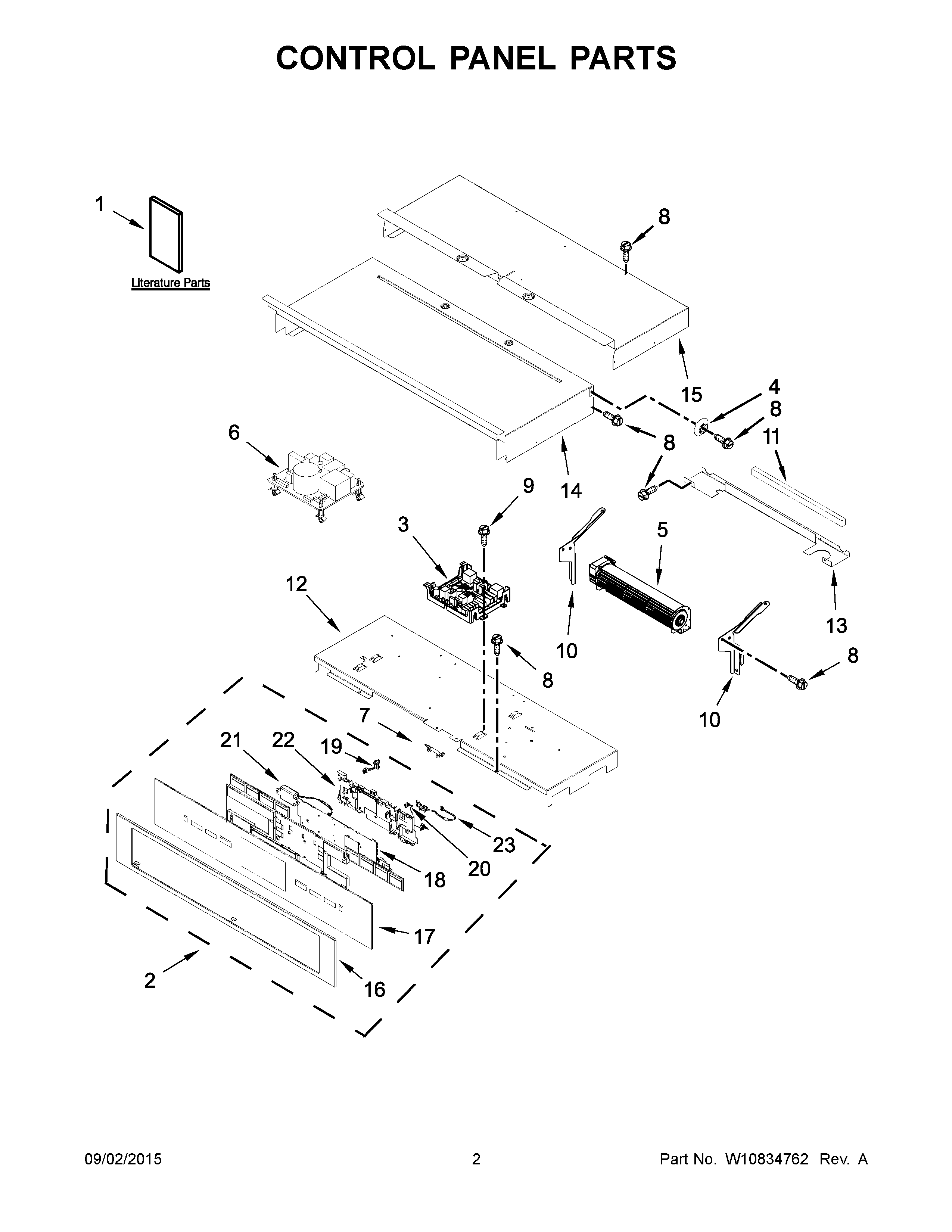

JJW3430DP01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	MAY W10571360
NI	ASSEMBLY, ANTENNA & HOUSING
NI	HARNESS, SIGNAL
NI	HARNESS, DOOR LATCH
NI	STRAP, LEAD GROUND
NI	BRACKET, HARNESS
NI	HARNESS, EOL
NI	CLAMP, CONDUIT
NI	MAY 4450800
NI	LINER (NOT A SERVICEABLE PART)
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
2	MAY W10713566
3	MANAGER, APPLIANCE
4	SPACER, LATERAL
5	BLOWER
6	BOARD, POWER SUPPLY
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	MAY W10694467
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 30
15	CHASSIS, COVER TOP BACK 30"
16	SKIN, CONTROL PANEL (STAINLESS)
17	MAY W10710542
18	MAY W10746725
19	HARNESS, KEYPAD (LEFT TO CENTER)
20	HARNESS, KEYPAD (RIGHT TO CENTER)
21	ASSEMBLY, SPEAKER
22	HOUSING
23	JUMPER HARNESS, POWER SUPPLY
