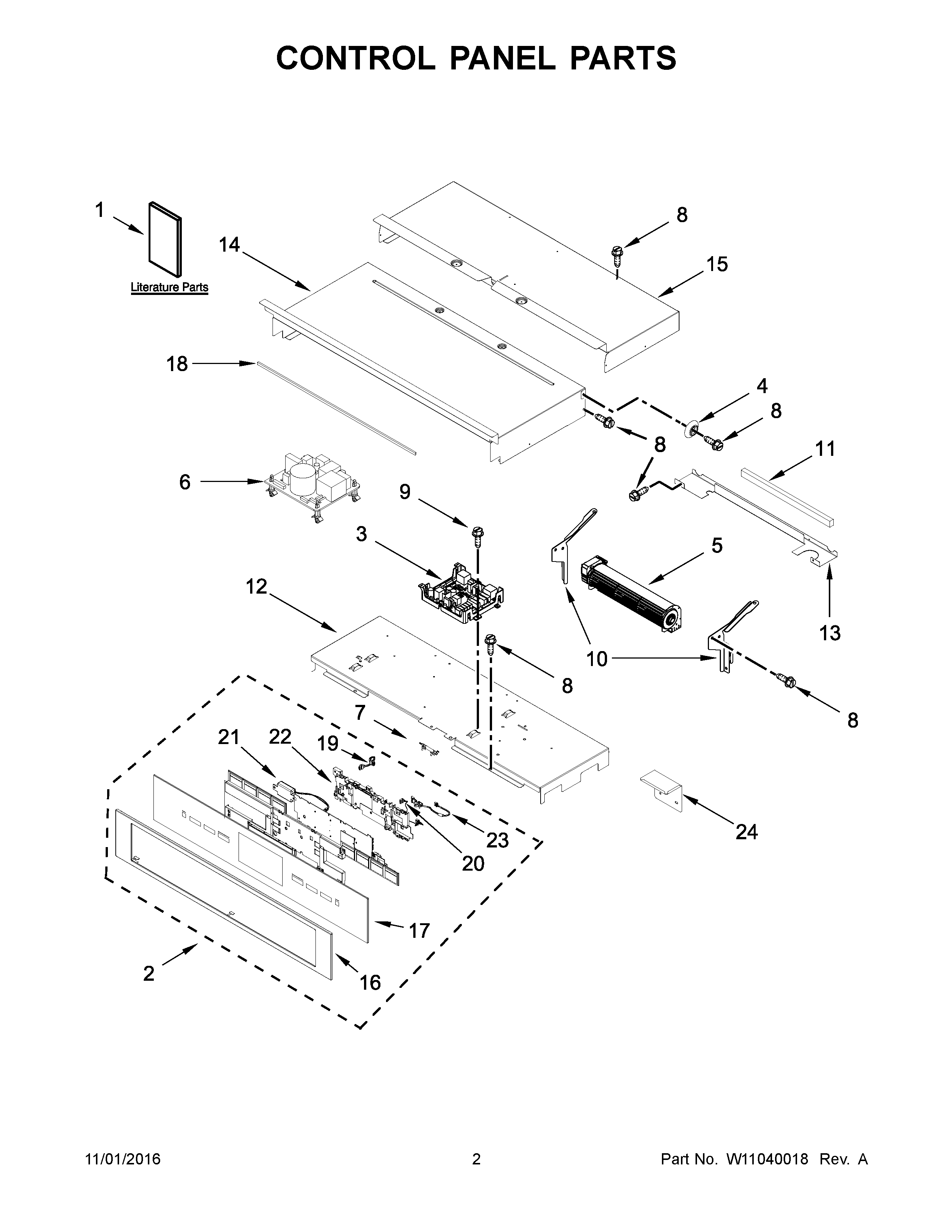

JJW3430DP02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	HARNESS, EOL
NI	MAY W10775068
NI	CLAMP, CONDUIT
NI	STRAP, LEAD GROUND
NI	HARNESS, SIGNAL
NI	ASSEMBLY, ANTENNA & HOUSING
NI	BRACKET, HARNESS
NI	MAY W10571360
NI	MAY 4450800
NI	LINER (NOT A SERVICEABLE PART)
1A	INSTRUCTIONS, INSTALLATION
1D	GUIDE, WIFI CONNECTIVITY
1C	SHEET, TECH
1	GUIDE, USE & CARE
1B	INSTRUCTIONS, UNDERCOUNTER INSTALL
2	ASSEMBLY, CONTROL PANEL (STAINLESS)
3	MANAGER, APPLIANCE
4	SPACER, LATERAL
5	BLOWER
6	BOARD, POWER SUPPLY
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	TRAY, ELECTRONIC
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 30
15	CHASSIS, COVER TOP BACK 30"
16	SKIN, CONTROL PANEL (STAINLESS)
17	MAY W10710542
18	GASKET, RUBBER
19	HARNESS, KEYPAD (LEFT TO CENTER)
20	HARNESS, KEYPAD (RIGHT TO CENTER)
21	ASSEMBLY, SPEAKER
22	HOUSING
23	JUMPER HARNESS, POWER SUPPLY
24	SHIELD, WIFI ACCESS
