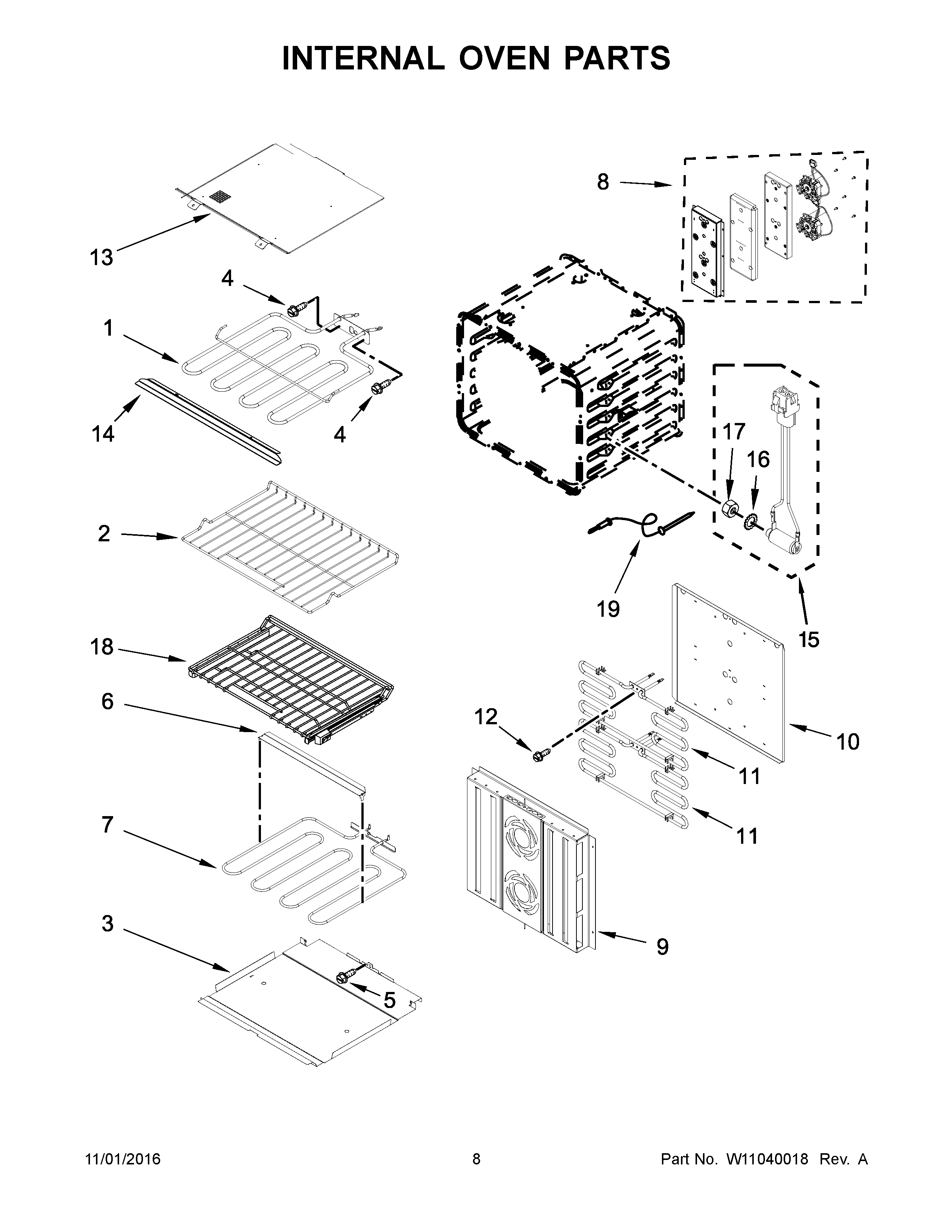

JJW3430DP02 05 – INTERNAL OVEN PARTS

JJW3430DP02 05 – INTERNAL OVEN PARTS

Written by

in

JJW3430DP02 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELEMENT, BROIL
2RACK, OVEN
3TRAY, HIDDEN BAKE
4MAY 7101P434-60
5MAY 7101P426- 60
6CROSSBAR, HIDDEN BAKE TRAY
7MAY W10546517
8ASSEMBLY, CONVECTION MOTOR
9ASSEMBLY, BAFFLE
10SHIELD, CONVECTION
11ELEMENT, CONVECTION
12MAY W10236129
13SHIELD, BROIL ELEMENT
14SHIELD, BROIL FRONT
15JACK, MEAT PROBE
16WASHER
17LOCKNUT
18RACK, SLIDING
19PROBE-MEAT
