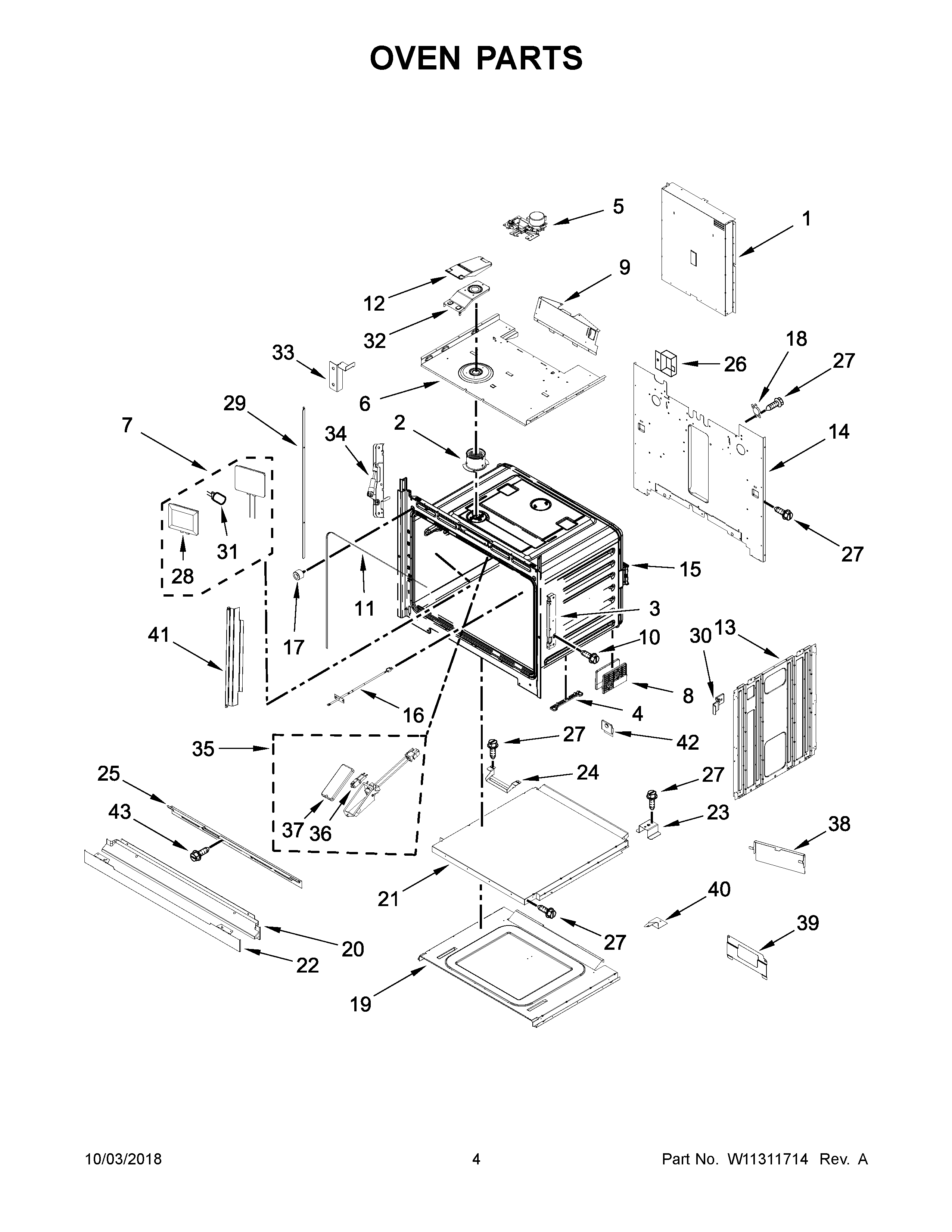

JJW3430DP03 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, CONTROL KNOB
NI	INSULATION, WRAP
NI	INSULATION, CAVITY
NI	LINER (NOT A SERVICEABLE PART)
1	DUCT, CHASSIS BACK
2	TUBE, VENT
3	MAY W10616802
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	ASSEMBLY, OVEN LIGHT
8	FOOT, BASE
9	DEFLECTOR, BLOWER
10	MAY W10254050
11	GASKET
12	COVER, VENT EXHAUST
13A	SIDE, CHASSIS (RIGHT)
13	SIDE, CHASSIS (LEFT)
16	MAY W10622170
17	BUMPER & SCREW
18	THERMOSTAT
19	BASE, CHASSIS
20	ASSEMBLY, BOTTOM VENT (STAINLESS)
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	VENT, TOP 30"
26	MAY 8285593
27	MAY 7101P426- 60
28	LENS, LIGHT
29	COVER, SIDE TRIM (BLACK (LEFT))
29A	COVER, SIDE TRIM (BLACK (RIGHT))
30	SPACERS, FRONT
31	BULB, LIGHT
32	BASE, VENT EXHAUST
33A	BRACKET, SIDE COVER (RIGHT)
33	BRACKET, SIDE COVER (LEFT)
34	RECEIVER, SLOW CLOSE HINGE
35	ASSEMBLY, LIGHT (TOP)
36	BULB, OVEN
37	LENS
38	SHIELD, INNER
39	SHIELD, OUTER
40	SHIELD. BOTTOM (LEFT)
40A	SHIELD. BOTTOM (RIGHT)
41	SHIELD, FRONT FRAME HEAT
42	SPACER, CENTER
43	MAY 7101P427-60
