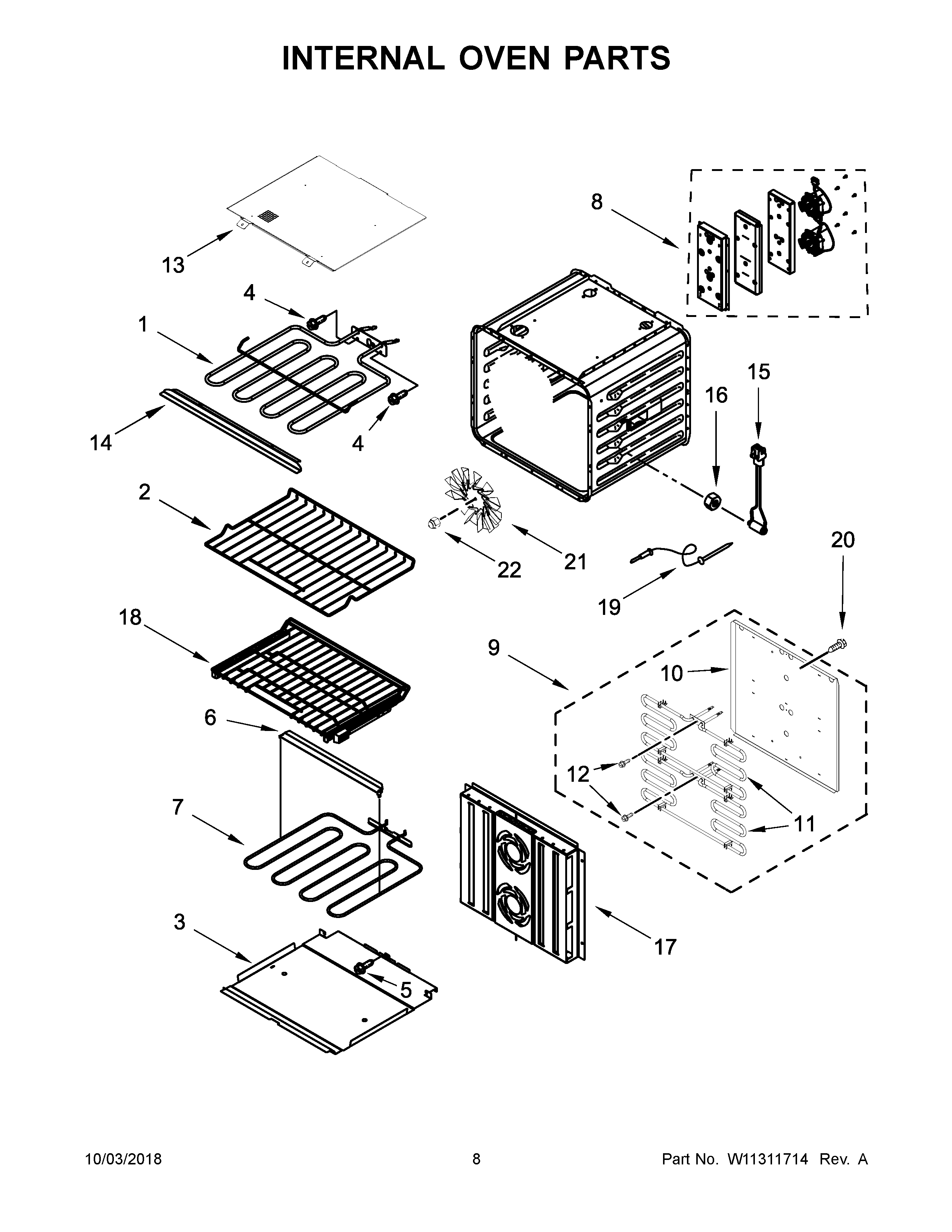

JJW3430DP03 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELEMENT, BROIL
2	RACK, OVEN
3	TRAY, HIDDEN BAKE
4	MAY 7101P434-60
5	MAY 7101P426- 60
6	CROSSBAR, HIDDEN BAKE TRAY
7	MAY W10546517
8	ASSEMBLY, CONVECTION MOTOR
9	ASSEMBLY, CONVECTION ELEMENT
10	SHIELD, CONVECTION
11	ELEMENT, CONVECTION
12	MAY W10236129
13	SHIELD, BROIL ELEMENT
14	SHIELD, BROIL FRONT
15	JACK, MEAT PROBE
16	NUT, LOCKING
17	ASSEMBLY, BAFFLE
18	RACK, SLIDING
19	PROBE-MEAT
20	SCREW
21	BLADE, CONVECTION FAN
22A	NUT, ACORN (RH)
22	MAY W10631504
