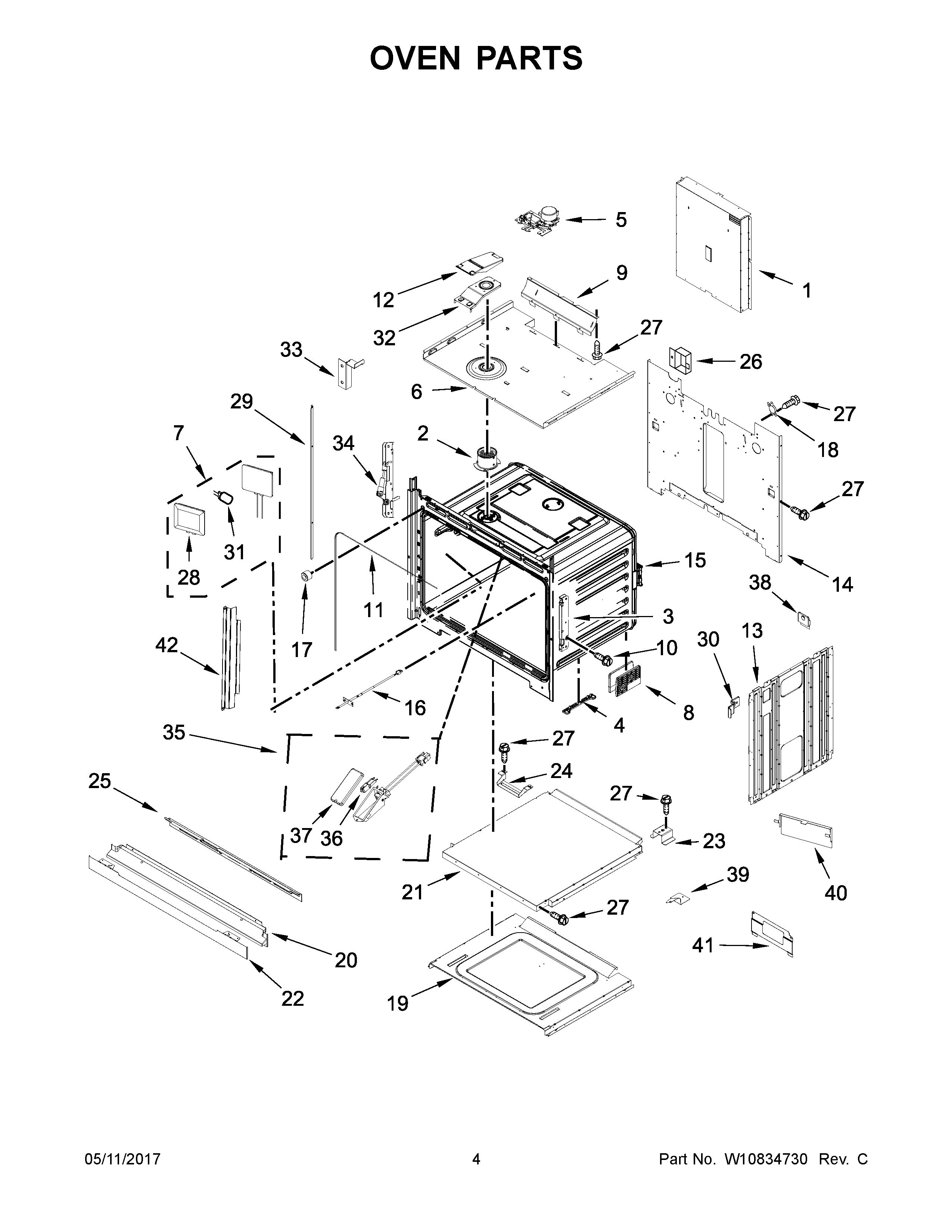

JJW3430DS01 03 – OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, CAVITY
NI	INSULATION, WRAP
1	DUCT, CHASSIS BACK
2	MAY W10282946
3	MAY W10616802
4	SPACER, BASE
5	LATCH, MOTORIZED
6	MAY W10813743
7	ASSEMBLY, OVEN LIGHT
8	FOOT, BASE
9	MAY W10641572
10	MAY W10254050
11	GASKET
12	COVER, VENT EXHAUST
13A	SIDE, CHASSIS (RIGHT)
13	SIDE, CHASSIS (LEFT)
14	MAY W10282992
16	MAY W10622170
17	BUMPER & SCREW
18	THERMOSTAT
19	BASE, CHASSIS
20	ASSEMBLY, BOTTOM VENT (STAINLESS)
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	VENT, TOP 30"
26	MAY 8285593
27	MAY 7101P426- 60
28	LENS, LIGHT
29	COVER, SIDE TRIM (BLACK (LEFT))
29A	COVER, SIDE TRIM (BLACK (RIGHT))
30	SPACERS, FRONT
31	BULB, LIGHT
32	BASE, VENT EXHAUST
33A	BRACKET, SIDE COVER (RIGHT)
33	BRACKET, SIDE COVER (LEFT)
34	RECEIVER, HINGE
35	ASSEMBLY, LIGHT (TOP)
36	BULB, OVEN
37	LENS
38	SPACER, CENTER
39A	SHIELD. BOTTOM (RIGHT)
39	SHIELD. BOTTOM (LEFT)
40	SHIELD, INNER
41	SHIELD, OUTER
42	SHIELD, FRONT FRAME HEAT
