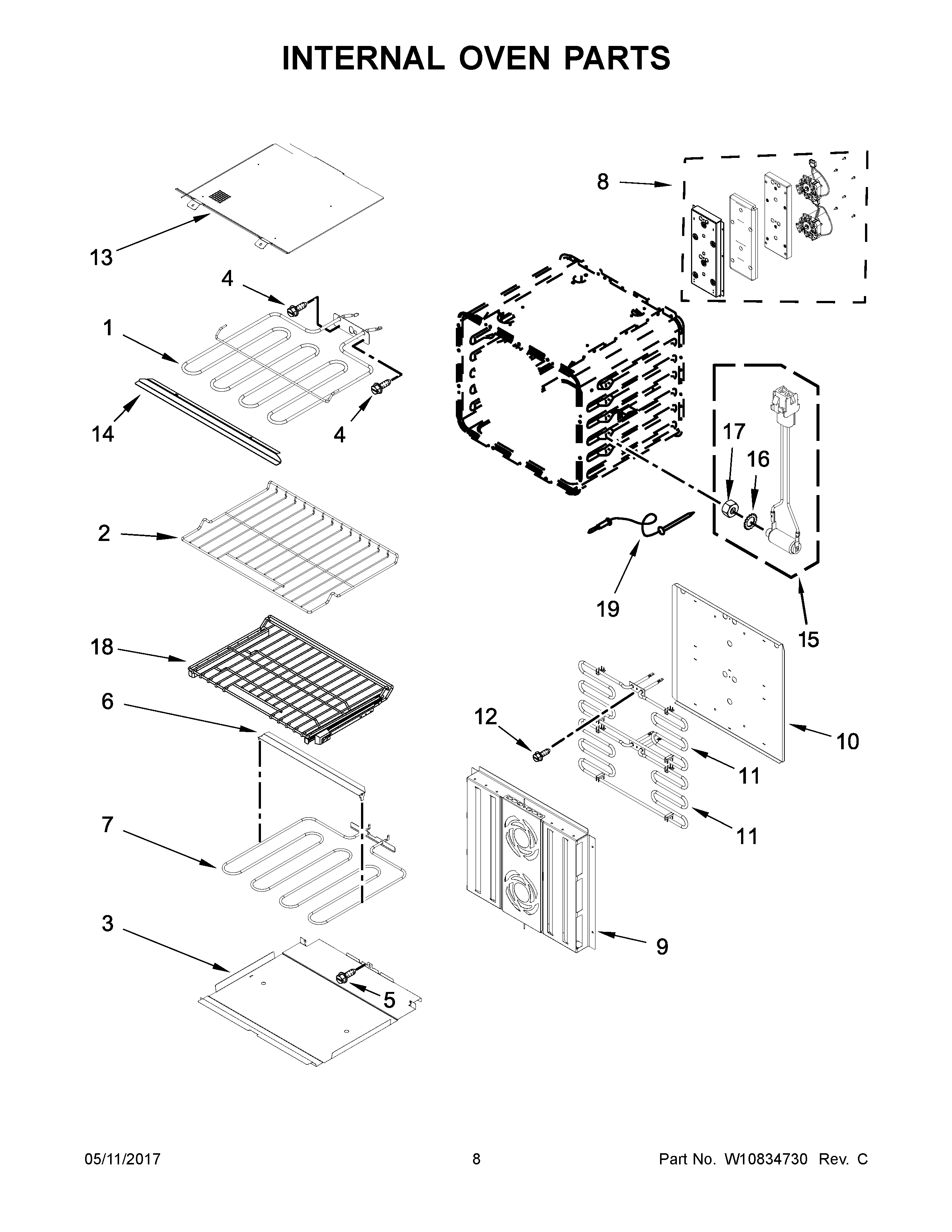

JJW3430DS01 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELEMENT, BROIL
2RACK, OVEN
3TRAY, HIDDEN BAKE
4MAY 7101P434-60
5MAY 7101P426- 60
6CROSSBAR, HIDDEN BAKE TRAY
7MAY W10546517
8ASSEMBLY, CONVECTION MOTOR
9ASSEMBLY, BAFFLE
10SHIELD, CONVECTION
11ASSEMBLY, CONVECTION ELEMENT
12MAY W10236129
13SHIELD, BROIL ELEMENT
14SHIELD, BROIL FRONT
15JACK, MEAT PROBE
16WASHER
17LOCKNUT
18RACK, SLIDING
19PROBE-MEAT
