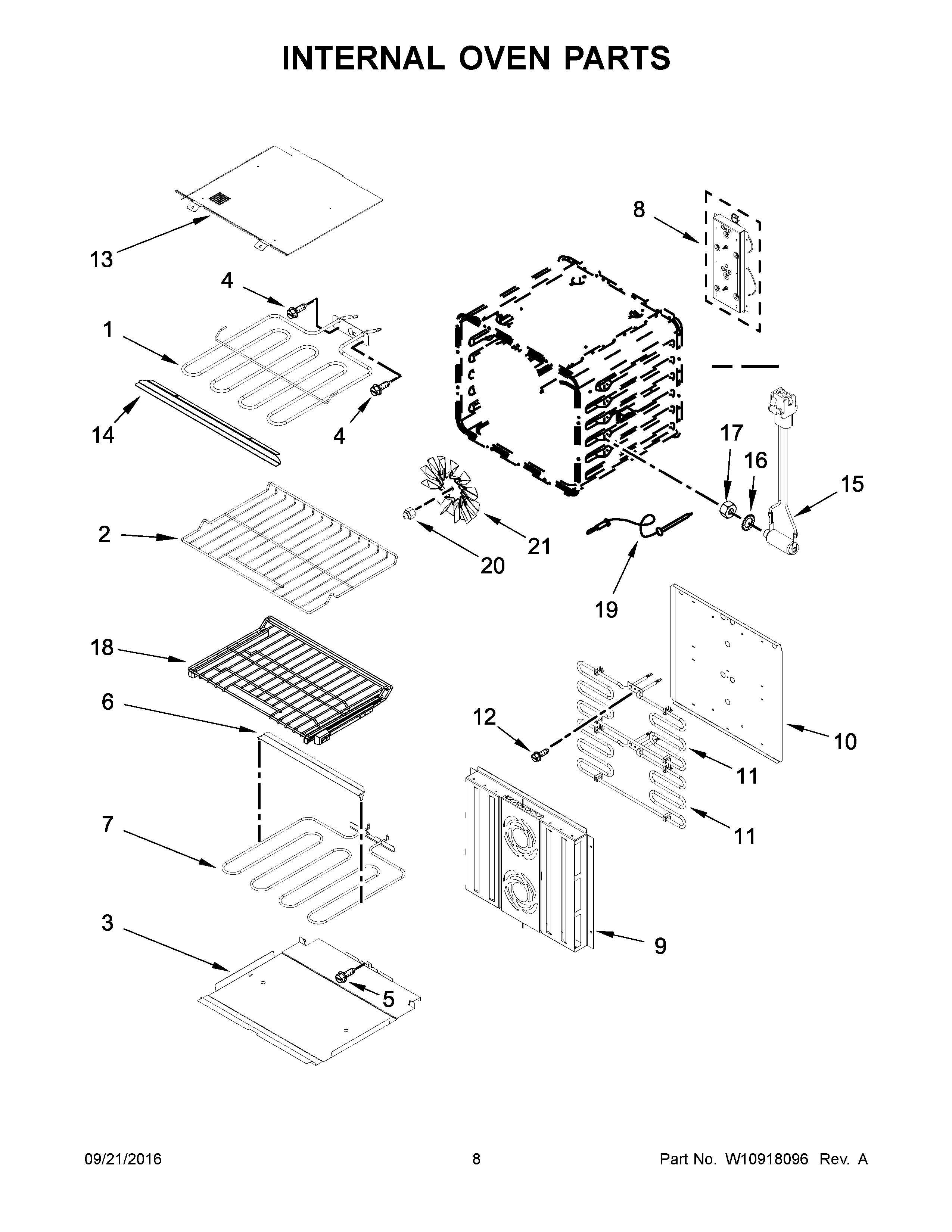

JJW3430DS02 05 – INTERNAL OVEN PARTS

JJW3430DS02 05 – INTERNAL OVEN PARTS

Written by

in

JJW3430DS02 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELEMENT, BROIL
2	RACK, OVEN
3	TRAY, HIDDEN BAKE
4	MAY 7101P434-60
5	MAY 7101P426- 60
6	CROSSBAR, HIDDEN BAKE TRAY
7	MAY W10546517
8	ASSEMBLY, CONVECTION MOTOR
9	ASSEMBLY, BAFFLE
10	SHIELD, CONVECTION
11	ELEMENT, CONVECTION
12	MAY W10236129
13	SHIELD, BROIL ELEMENT
14	SHIELD, BROIL FRONT
15	JACK, MEAT PROBE
16	WASHER
17	LOCKNUT
18	RACK, SLIDING
19	PROBE-MEAT
20	MAY W10631504
20A	MAY W10213749
21	MAY W10213746
