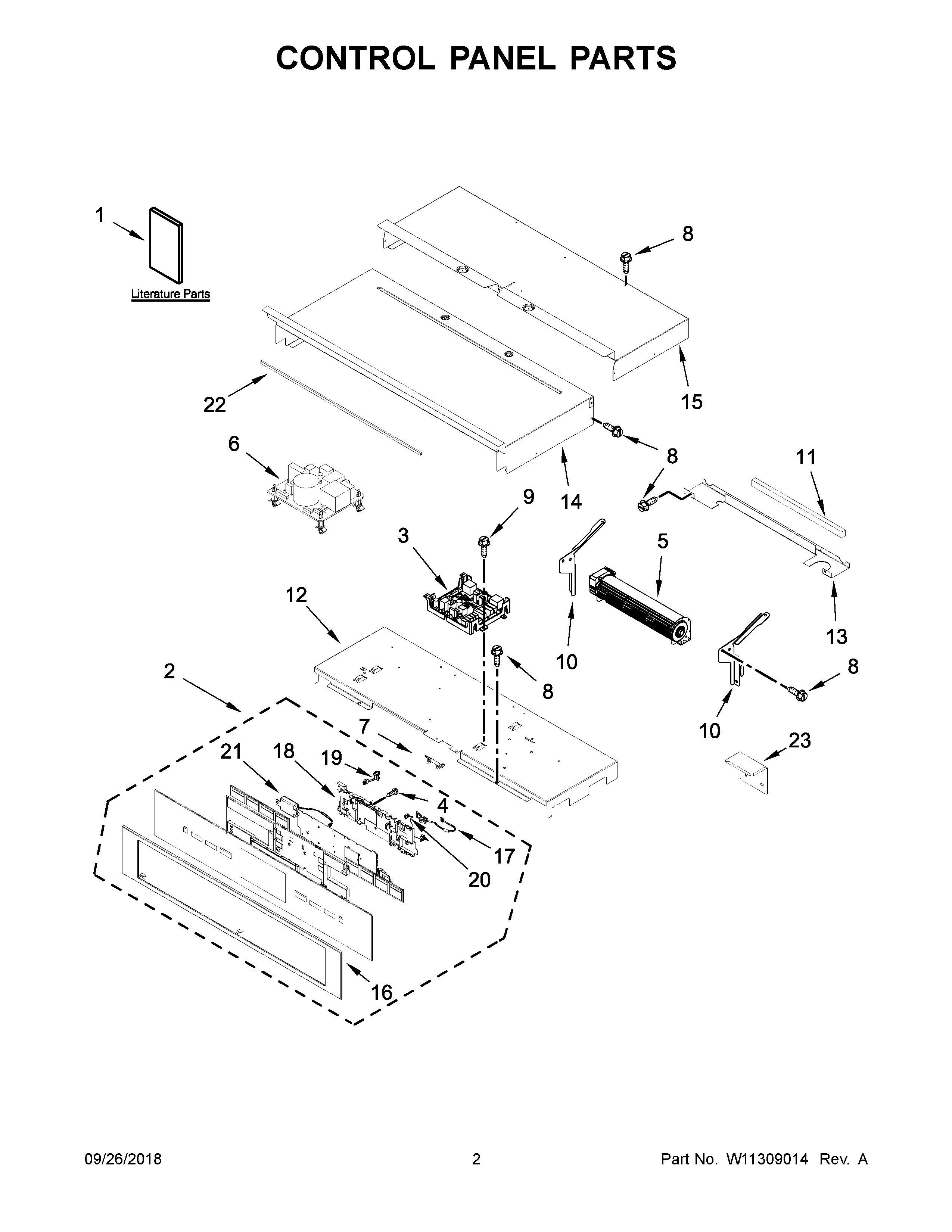

JJW3430DS03 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	TIE, CABLE
NI	CLIP, HARNESS
NI	HARNESS, EOL
NI	BRACKET, HARNESS
NI	STRAP, LEAD GROUND
NI	ASSEMBLY, ANTENNA & HOUSING
NI	HARNESS, DOOR LATCH
NI	HARNESS, SIGNAL
NI	CLAMP, CONDUIT
NI	HARNESS, MAIN
NI	MAY 4450800
NI	LINER (NOT A SERVICEABLE PART)
1D	GUIDE, WIFI CONNECTIVITY
1B	INSTRUCTIONS, UNDERCOUNTER INSTALL
1C	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE & CARE
2	ASSEMBLY, CONTROL PANEL (STAINLESS)
3	MANAGER, APPLIANCE
4	MAY W10489172
5	BLOWER
6	BOARD, POWER SUPPLY
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10A	BRACKET, BLOWER (RIGHT)
10	BRACKET, BLOWER (LEFT)
11	BLOCK, FOAM
12	TRAY, ELECTRONIC
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 30
15	CHASSIS, COVER TOP BACK 30"
16	SKIN, CONTROL PANEL (STAINLESS)
17	JUMPER HARNESS, POWER SUPPLY
18	HOUSING
19	HARNESS, KEYPAD (LEFT TO CENTER)
20	HARNESS, KEYPAD (RIGHT TO CENTER)
21	ASSEMBLY, SPEAKER
22	GASKET, RUBBER
23	SHIELD, WIFI ACCESS
