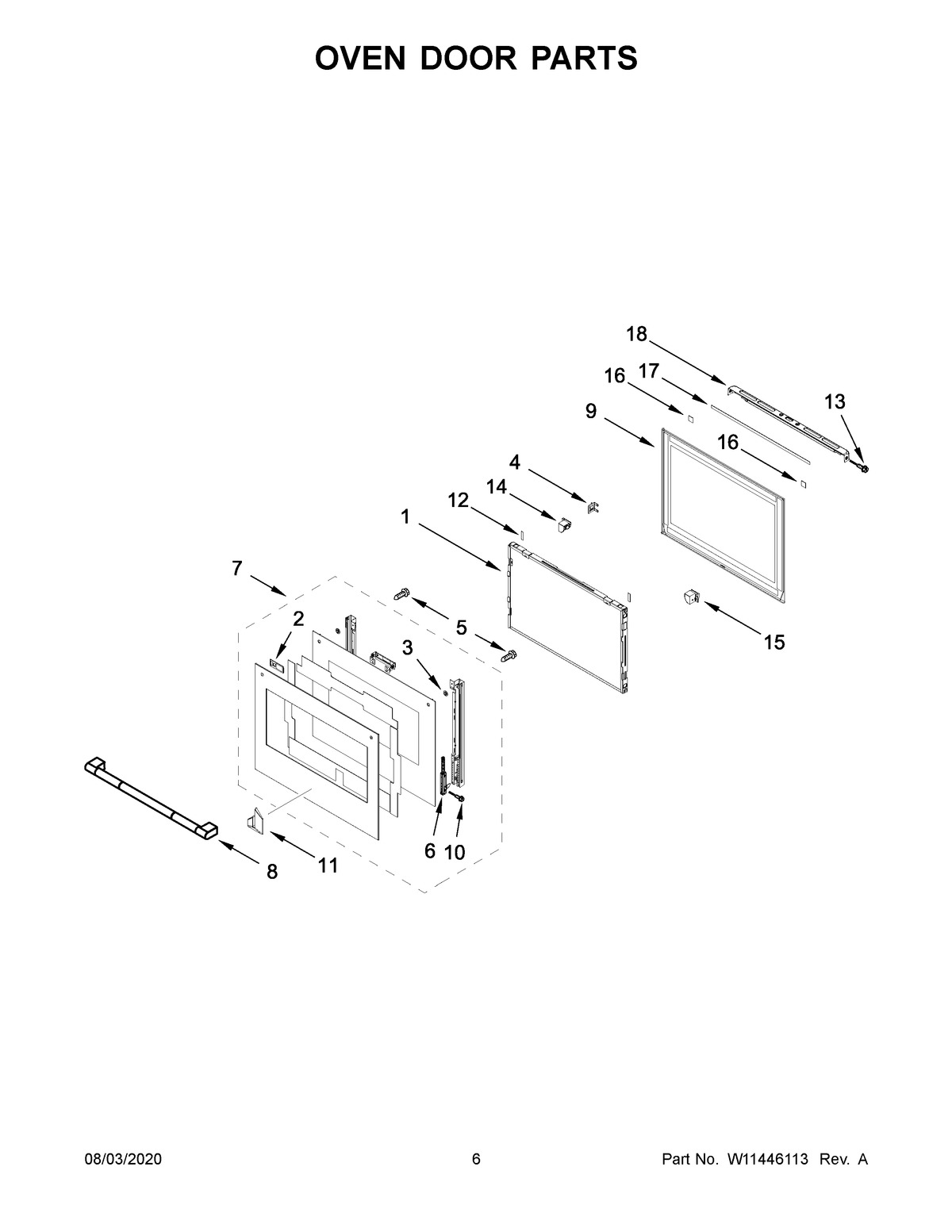

JJW3430IL01 04 – OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, WINDOW PACK
2	SPACER, HANDLE
3	WASHER, DOOR
4	CLIP, SPRING
5	SCREW
6	HINGE, DOOR
7	ASSEMBLY, DOOR (STAINLESS)
8	ASSEMBLY, HANDLE (STAINLESS)
9	ASSEMBLY, GLASS CAVITY
10	SCREW
11	NAMEPLATE (STAINLESS)
12	SPACER
13	SCREW WITH WASHER
14	BRACKET, DOOR (LEFT)
15	BRACKET, DOOR (RIGHT)
16	SPACER, VENT
17	PAD, VENT
18	VENT, TOP METAL
