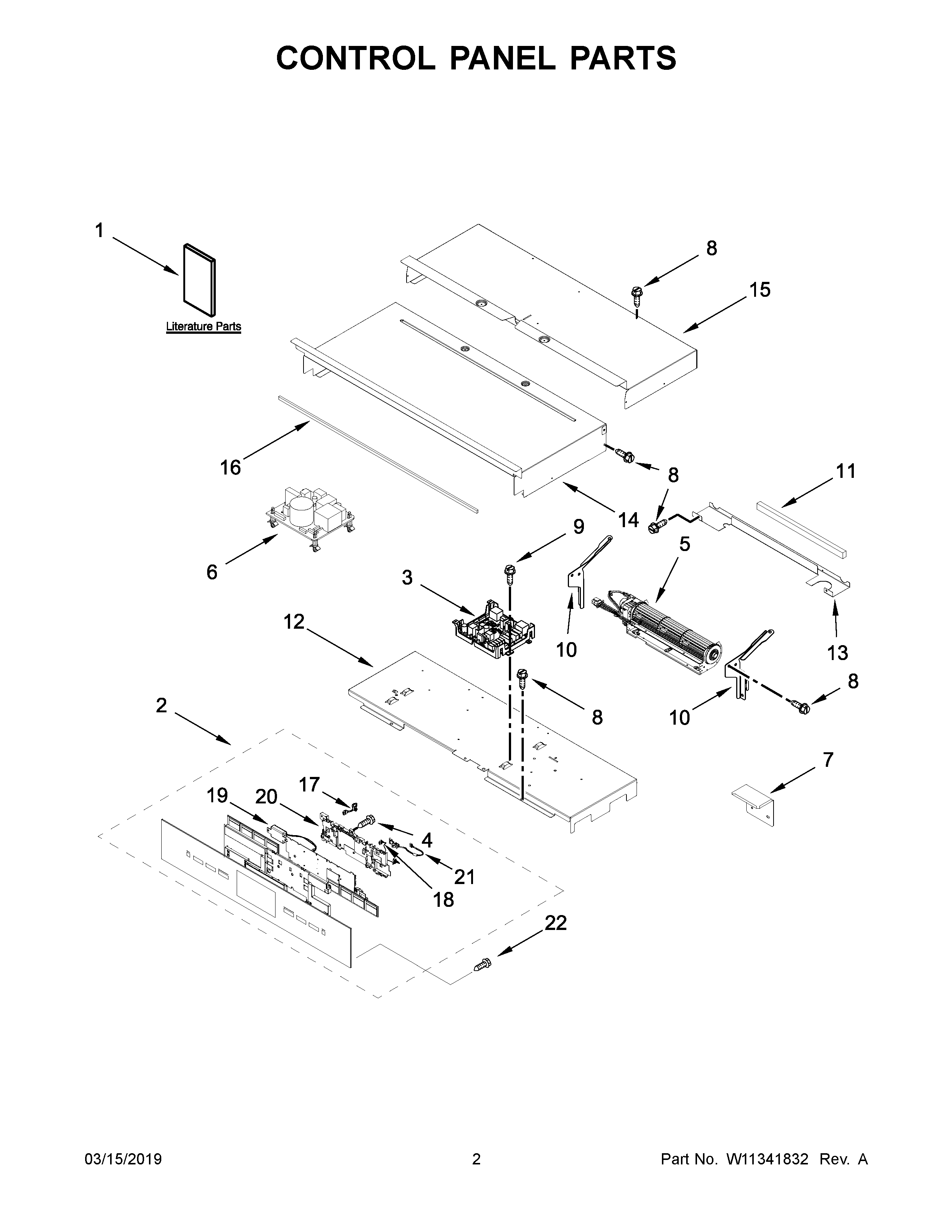

JJW3430IM00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	CLAMP, CONDUIT
NI	TIE, CABLE
NI	CLIP, HARNESS
NI	HARNESS, EOL
NI	BRACKET, HARNESS
NI	STRAP, LEAD GROUND
NI	HARNESS, SIGNAL
NI	ASSEMBLY, ANTENNA & HOUSING
NI	HARNESS, MAIN
NI	HARNESS, DOOR LATCH
NI	MAY 4450800
NI	BAG, HARDWARE
1D	DIAGRAM, WIRING
1E	SHEET, TECH
1	GUIDE, USE & CARE (OVEN)
1A	INSTRUCTIONS, INSTALLATION
1B	INSTRUCTIONS, UNDERCOUNTER INSTALL
1C	GUIDE, INTERNET CONNECTIVITY
2	MAY W11241534
3	MAY W11281213
4	MAY W10489172
5	BLOWER
6	BOARD, POWER SUPPLY
7	SHIELD, WIFI ACCESS
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	TRAY, ELECTRONIC
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 30
15	CHASSIS, COVER TOP BACK 30"
16	GASKET, RUBBER
17	HARNESS, KEYPAD (LEFT TO CENTER)
18	HARNESS, KEYPAD (RIGHT TO CENTER)
19	ASSEMBLY, SPEAKER
20	HOUSING
21	JUMPER HARNESS, POWER SUPPLY
22	Screw (2) (Black)
