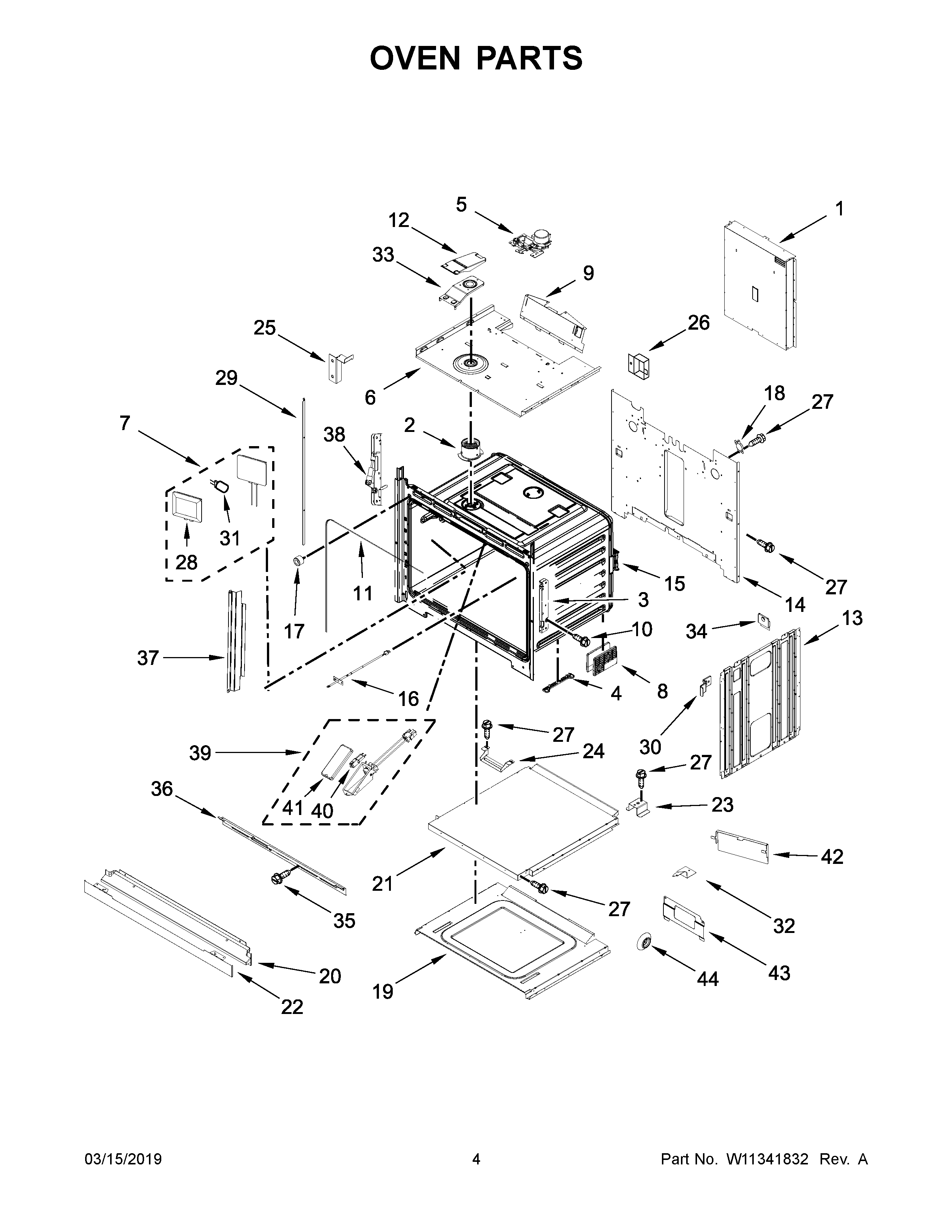

JJW3430IM00 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, CONTROL KNOB
NI	INSULATION, CAVITY
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
1	DUCT, CHASSIS BACK
2	TUBE, VENT
3	RECEIVER, HINGE
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	ASSEMBLY, OVEN LIGHT
8	FOOT, BASE
9	DEFLECTOR, BLOWER
10	MAY W10254050
11	GASKET
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (LEFT)
13A	SIDE, CHASSIS (RIGHT)
16	PROBE, SENSOR
17	BUMPER & SCREW
18	THERMOSTAT
19	BASE, CHASSIS
20	ASSEMBLY, BOTTOM VENT (STAINLESS)
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25A	BRACKET, SIDE COVER (RIGHT)
25	BRACKET, SIDE COVER (LEFT)
26	MAY 8285593
27	MAY 7101P426- 60
28	LENS, LIGHT
29	COVER, SIDE TRIM (BLACK (LEFT))
29A	COVER, SIDE TRIM (BLACK (RIGHT))
30	SPACERS, FRONT
31	BULB, LIGHT
32	SHIELD. BOTTOM (LEFT)
32A	SHIELD. BOTTOM (RIGHT)
33	BASE, VENT EXHAUST
34	SPACER, CENTER
35	MAY 7101P427-60
36	VENT, TOP 30"
37	SHIELD, FRONT FRAME HEAT
38	RECEIVER, SLOW CLOSE HINGE
39	ASSEMBLY, LIGHT (TOP)
40	BULB, OVEN
41	LENS
42	SHIELD, SLOW CLOSE HINGE
43	SHIELD, OUTER
44	SPACER, LATERAL
