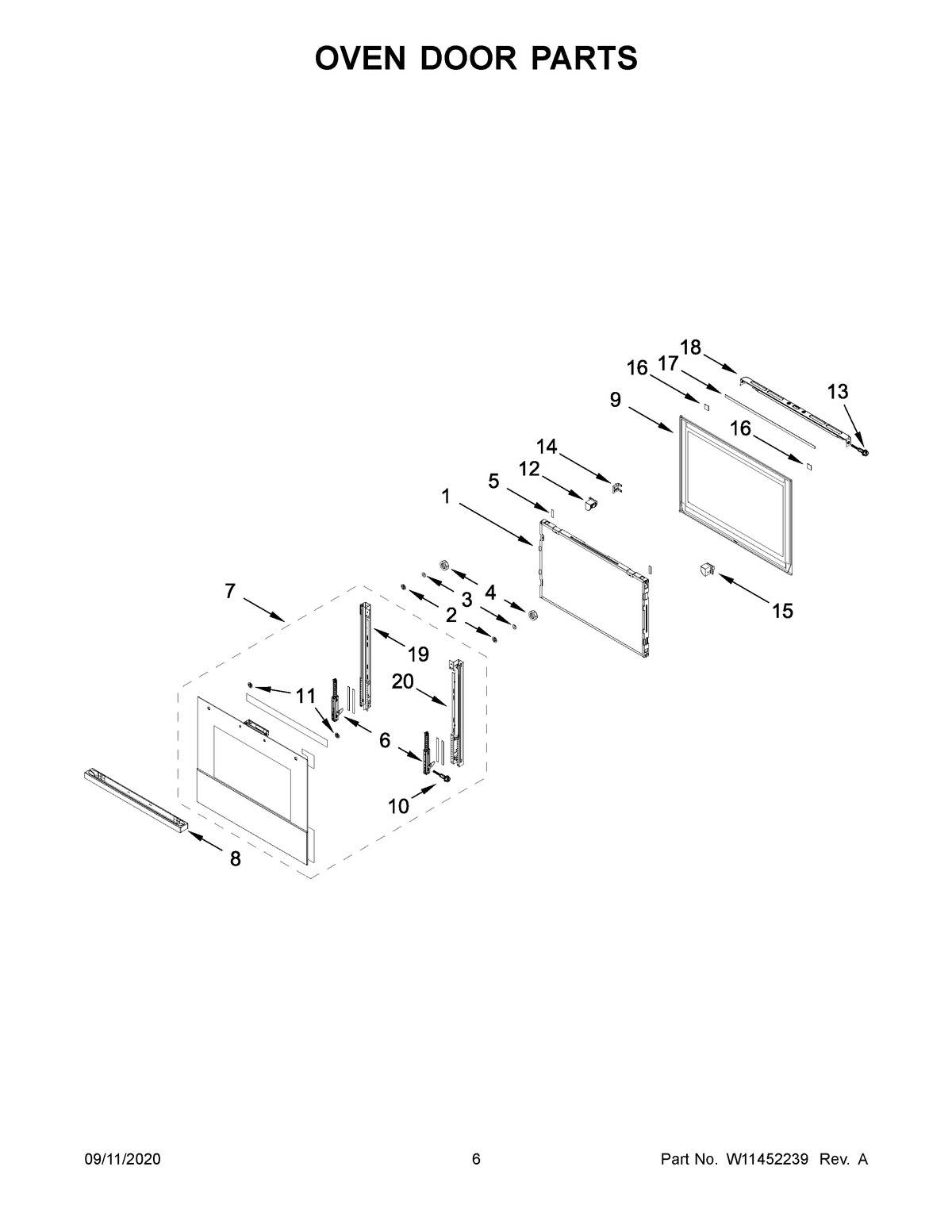

JJW3430IM01 04 – OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, WINDOW PACK
2	MAY W11132942
3	WASHER
4	NUT
5	SPACER
6	HINGE, DOOR
7	MAY W11199290
8	MAY W11250935
9	ASSEMBLY, GLASS CAVITY
10	SCREW
11	WASHER, DOOR
12	BRACKET, DOOR (LEFT)
13	SCREW WITH WASHER
14	CLIP, SPRING
15	BRACKET, DOOR (RIGHT)
16	SPACER, VENT
17	PAD, VENT
18	VENT, TOP METAL
19	RAIL, DOOR SIDE (LEFT)
20	RAIL, DOOR SIDE (RIGHT)
