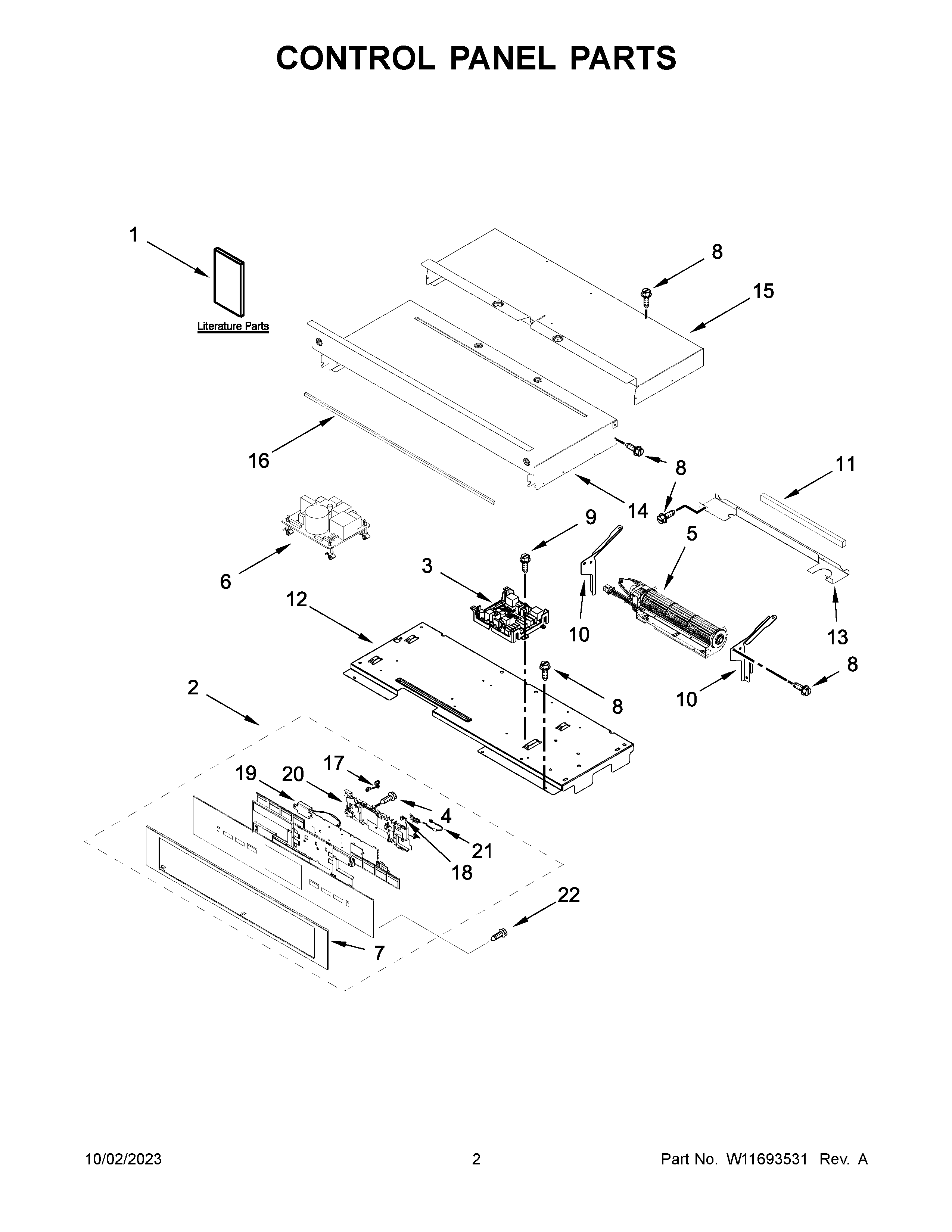

JJW3430LL01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11727826 Whirlpool Wire Harness
NI	W11249914 Whirlpool Wire Harness
NI	W11699910 Whirlpool Wire Harness
NI	W10487999 Whirlpool Clip
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	STRAP, LEAD GROUND
NI	BAG, HARDWARE
NI	4450800 Whirlpool Oven Screw
NI	W11537624 Whirlpool Antenna Assembly
NI	HARNESS, MAIN
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W10655464 Whirlpool Bracket
1	OWNER'S MANUAL
1B	TECH SHEET
1A	QUICK START GUIDE
2	W11598138 Whirlpool Console + Core
3	W11448961-includeCORE Whirlpool W11448961 Refrigerator Electronic Control Board + Core
4	W10489172 Whirlpool Screw
5	BLOWER
6	WPW10260060-includeCORE Whirlpool WPW10260060 Refrigerator Electronic Control Board + Core
7	W11197498 Whirlpool Oven Control Panel
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	TRAY, ELECTRONIC
13	DIVIDER, CHASSIS BACK
14	COVER, CHASSIS TOP FRONT (30")
15	COVER, 30 IN CHASSIS TOP BACK
16	W10728475 Whirlpool Foam Seal
17	W10566973 Whirlpool Wire Harness
18	W10524350 Whirlpool Wire Harness
19	W11123146 Whirlpool Speaker
20	W10668510 Whirlpool Housing
21	W10575307 Whirlpool Wire Harness
22	SCREW (BLACK)
