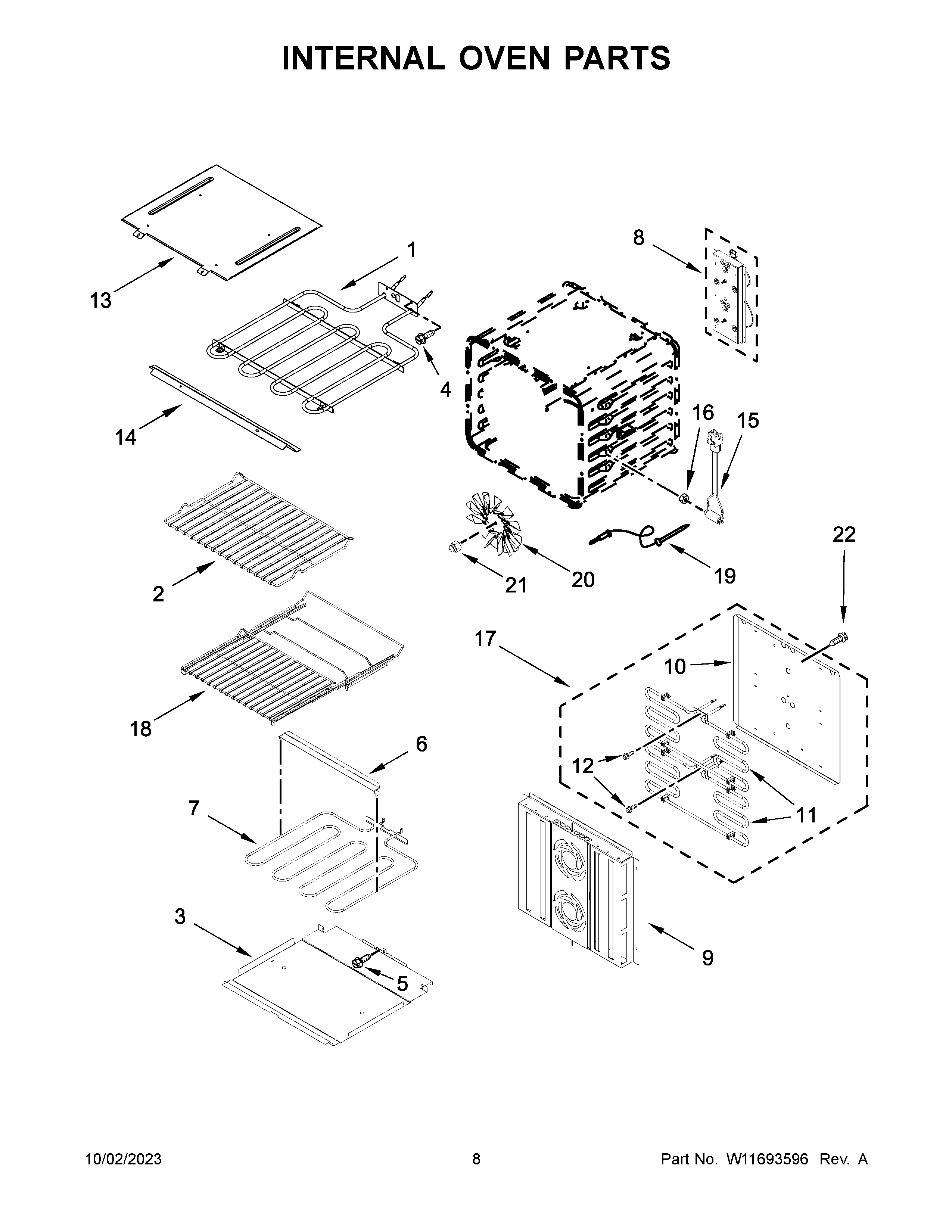

JJW3430LM01 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11598122 Whirlpool Broil Element
2	W11242906 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W11255349 Whirlpool Fan Motor
9	W11313747 Whirlpool Convention Baffle
10	SHIELD
11	W10663735 Whirlpool Element
12	WP489464 Whirlpool Refrigerator Screw
13	TOP-CABNT
14	SHIELD-HT
15	W11252826 Whirlpool Probe Jack
16	W11231343 Whirlpool Lock Nut
17	W11098805 Whirlpool Element
18	W11256305 Whirlpool Oven Rack
19	WP9755542 Whirlpool Oven Meat Probe
20	W11301887 Whirlpool Convection Fan
21	W11548755 Whirlpool Nut
21A	NUT
22	SCREW
