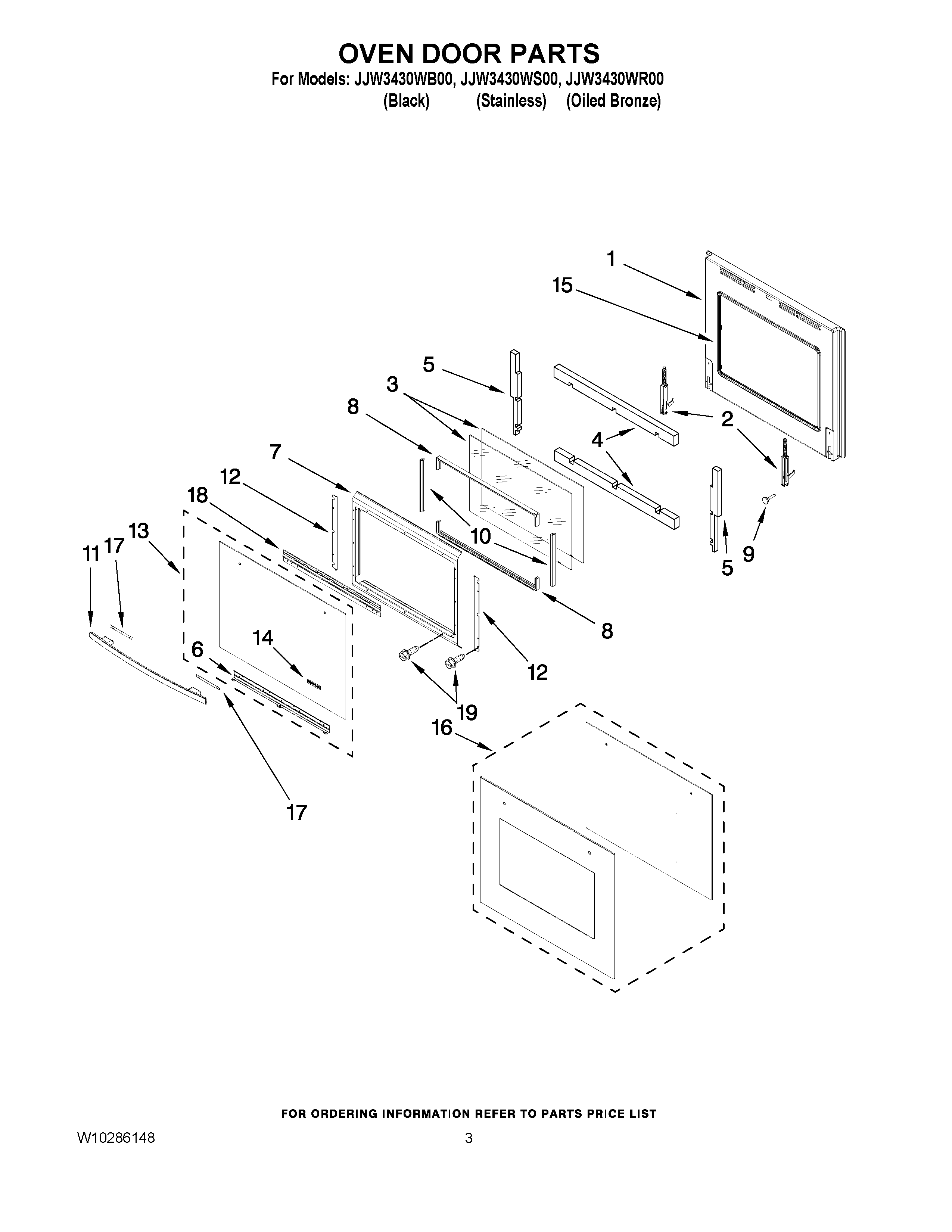

JJW3430WS00 02 – OVEN DOOR PARTS

Products

Position	Product
1	MAY W10187019
2	HINGE, DOOR (2) (STAINLESS)
2	HINGE, DOOR (2) (BLK/WHT/OILD BRNZ)
3	MAY W10176100
4	MAY W10273676
5	MAY W10273591
6	BRACKET, DOOR CLIP
7	MAY W10176103
8	MAY W10213816
9	MAY W10176233
10	MAY W10213806
11	MAY W10186757
11	MAY W10186756
11	MAY W10186755
12	MAY W10186882
13	MAY W10186890
13	GLASS OUTER DOOR ASSY. (BLACK/OILED BRONZE)
14	ASSEMBLY, BADGE (OILED BRONZE)
14	ASSEMBLY, BADGE (STAINLESS)
14	ASSEMBLY, BADGE (BLACK)
15	MAY W10213803
16	MAY W10176224
16	KIT, GLASS ASSY. (STAINLESS)
17	MAY W10213722
18	MAY W10176126
19	MAY 7101P426- 60
