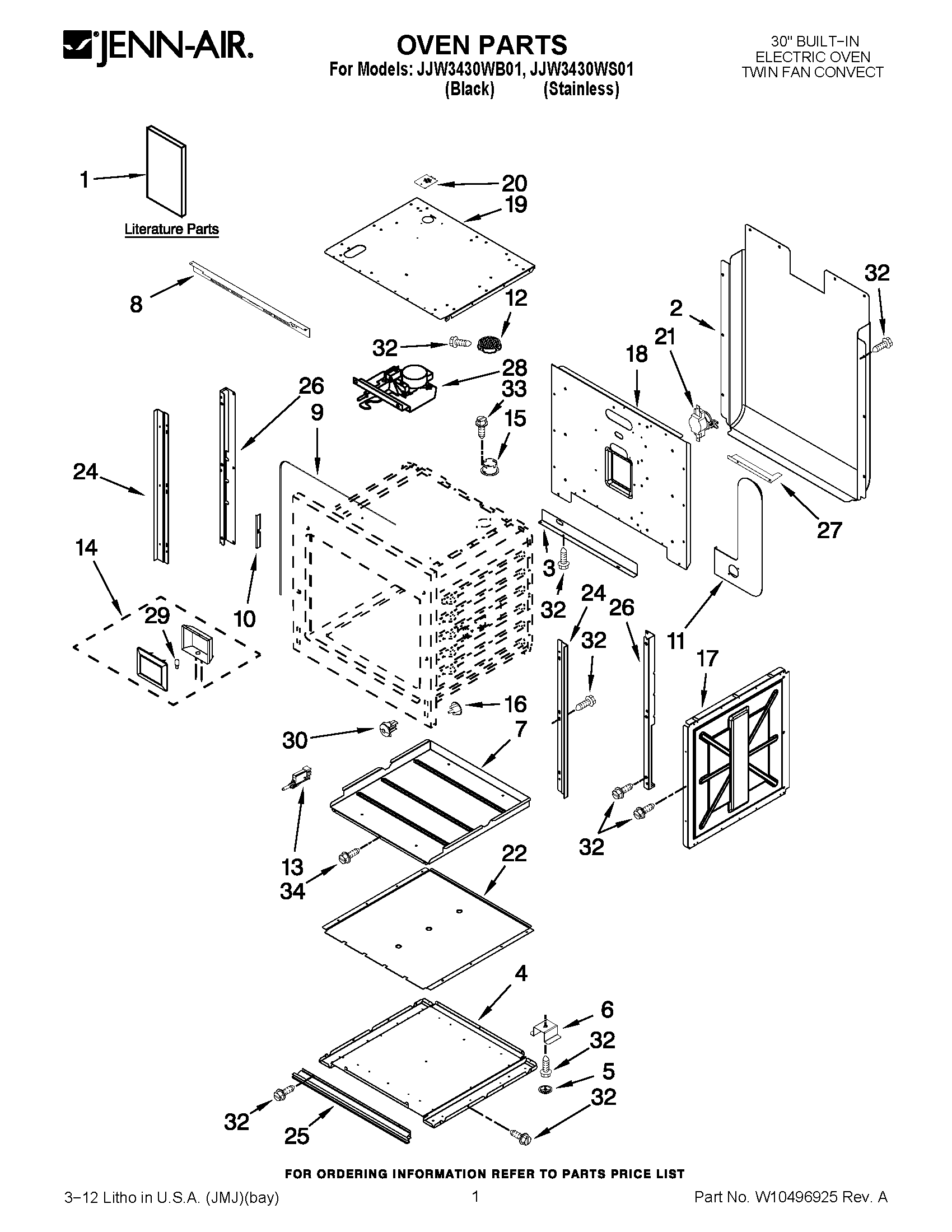

JJW3430WS01 01 – OVEN PARTS

Products

Position	Product
NI	MAY W10186989
NI	MAY W10175994
1	MAY W10213740
1	MAY W10213731
1	MAY W10221386
1	USE & CARE GUIDE
1	TIPS, SAFE COOKING (ENGLISH)
1	TIPS, SAFE COOKING (FRENCH)
2	MAY 2624F043-51
3	BAFFLE, REAR
4	MAY W10280327
5	MAY 8038P035-60
6	MAY W10213759
7	MAY 3401F079-45
8	TRIM, CTRL PNL TOP
9	MAY W10213818
10	MAY W10176218
11	MAY 4006W217-45
12	SCREEN, SMOKE ELM.
13	MAY W10286173
14	MAY W10175989
15	MAY 8026P065-60
16	MAY 7718P033-60
17	MAY W10175995
18	MAY W10175996
19	MAY W10175998
20	MAY W10213792
21	SWITCH, HI LIMIT
22	CHANNEL, BTM AIR BAKE ELEMENT
24	MAY W10277586
25	TRIM, BOTTOM VENT (BLACK/OILED BRONZE)
25	MAY W10176036
26	MAY W10277424
26	MAY W10277423
27	MAY W10186984
28	LATCH, DOOR
29	BULB, OVEN
30	MAY W10213745
32	MAY 7101P426- 60
33	MAY 7101P434-60
34	MAY W10236129
