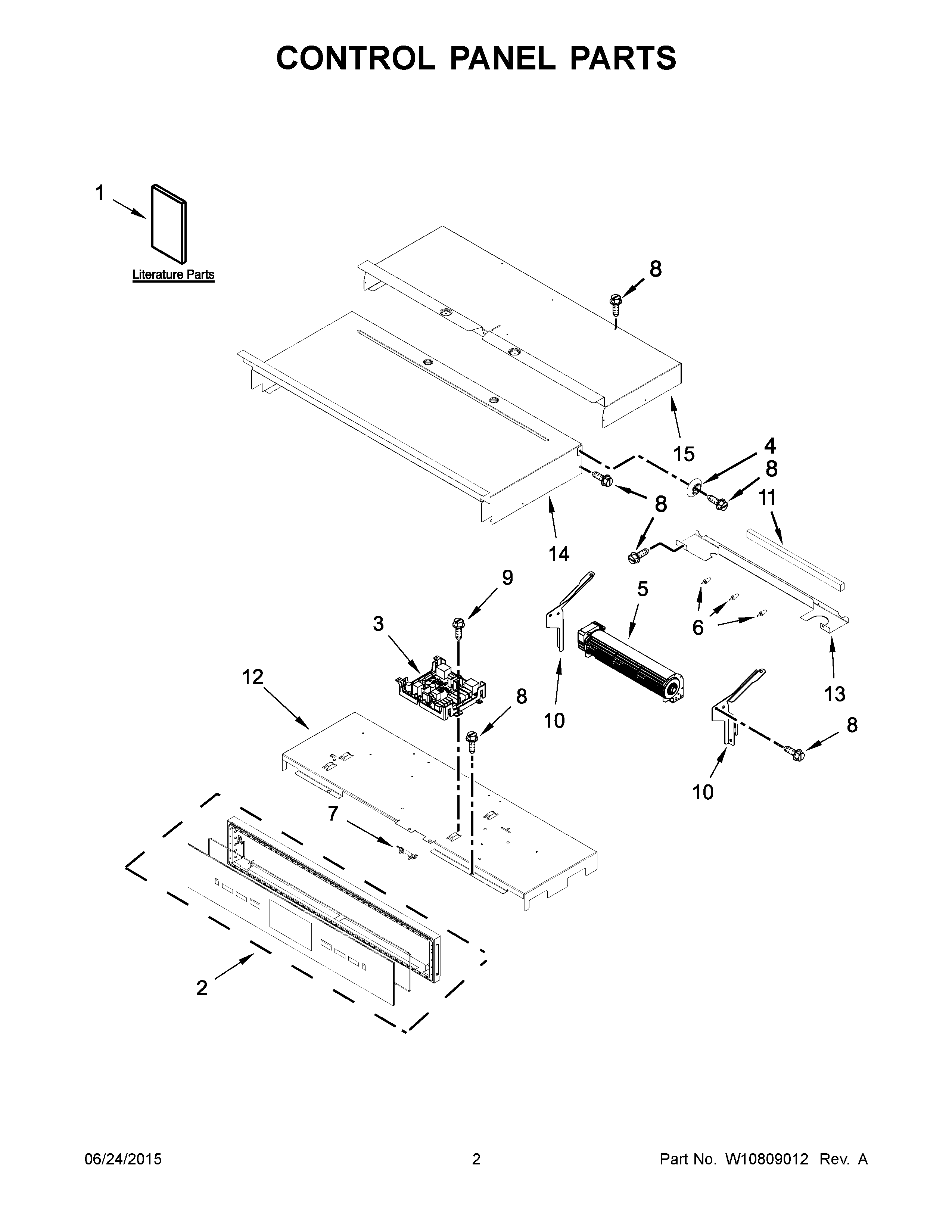

JJW3830DB00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	BRACKET, HARNESS
NI	HARNESS, EOL
NI	CLAMP, CONDUIT
NI	STRAP, LEAD GROUND
NI	HARNESS, DOOR LATCH
NI	MAY W10522152
NI	HARNESS, MAIN
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 4450800
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
2	ASSEMBLY, CONTROL PANEL (BLACK)
3	MANAGER, APPLIANCE
4	SPACER, LATERAL
5	BLOWER
6	MAY W10351295
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10A	BRACKET, BLOWER (RIGHT)
10	BRACKET, BLOWER (LEFT)
11	BLOCK, FOAM
12	MAY W10694467
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 30
15	CHASSIS, COVER TOP BACK 30"
