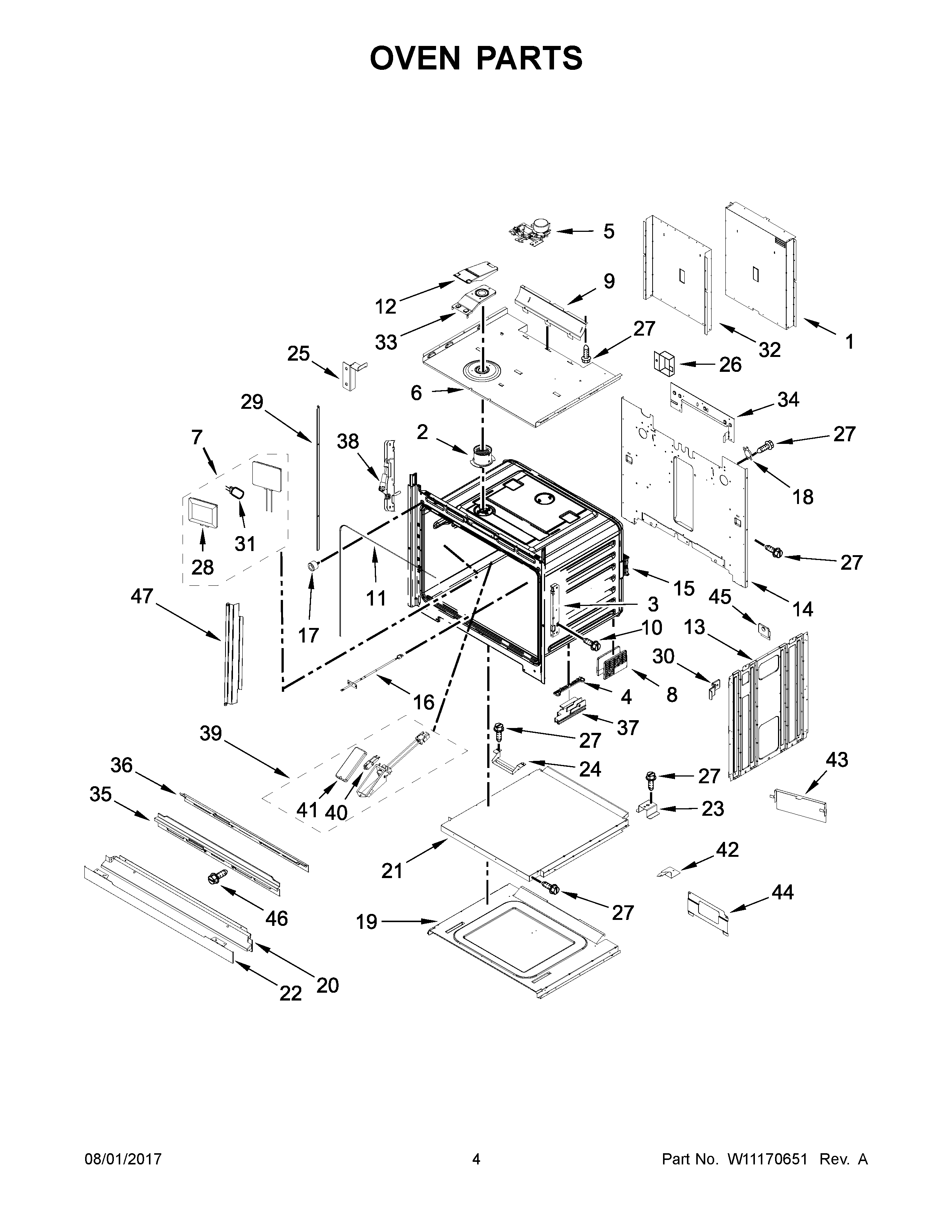

JJW3830DB02 03 – OVEN PARTS

JJW3830DB02 03 – OVEN PARTS

Written by

in

JJW3830DB02 03 – OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, CAVITY
NI	INSULATION, WRAP
NI	INSULATION, CONTROL KNOB
1	DUCT, CHASSIS BACK
2	MAY W10282946
3	MAY W10616802
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	ASSEMBLY, OVEN LIGHT
8	FOOT, BASE
9	DEFLECTOR, BLOWER
10	MAY W10254050
11	GASKET
12	COVER, VENT EXHAUST
13A	SIDE, CHASSIS (RIGHT)
13	SIDE, CHASSIS (LEFT)
16	MAY W10622170
17	BUMPER & SCREW
18	THERMOSTAT
19	BASE, CHASSIS
20	MAY W10351275
21	CHASSIS, BOTTOM DUCT
22	MAY W10351236
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BRACKET, SIDE COVER (LEFT)
25A	BRACKET, SIDE COVER (RIGHT)
26	MAY 8285593
27	MAY 7101P426- 60
28	LENS, LIGHT
29A	COVER, SIDE TRIM (RIGHT)
29	COVER, SIDE TRIM (LEFT)
30	SPACERS, FRONT
31	BULB, LIGHT
32	DUCT, CHASSIS BACK (LOWER)
33	BASE, VENT EXHAUST
34	MAY W10588736
35	MAY W10283040
36	VENT, TOP 30"
37	MAY W10618103
37A	MAY W10618104
38	RECEIVER, HINGE
39	ASSEMBLY, LIGHT (TOP)
40	BULB, OVEN
41	LENS
42A	SHIELD. BOTTOM (RIGHT)
42	SHIELD. BOTTOM (LEFT)
43	SHIELD, INNER
44	SHIELD, OUTER
45	SPACER, CENTER
46	MAY W10607120
47	SHIELD, FRONT FRAME HEAT
