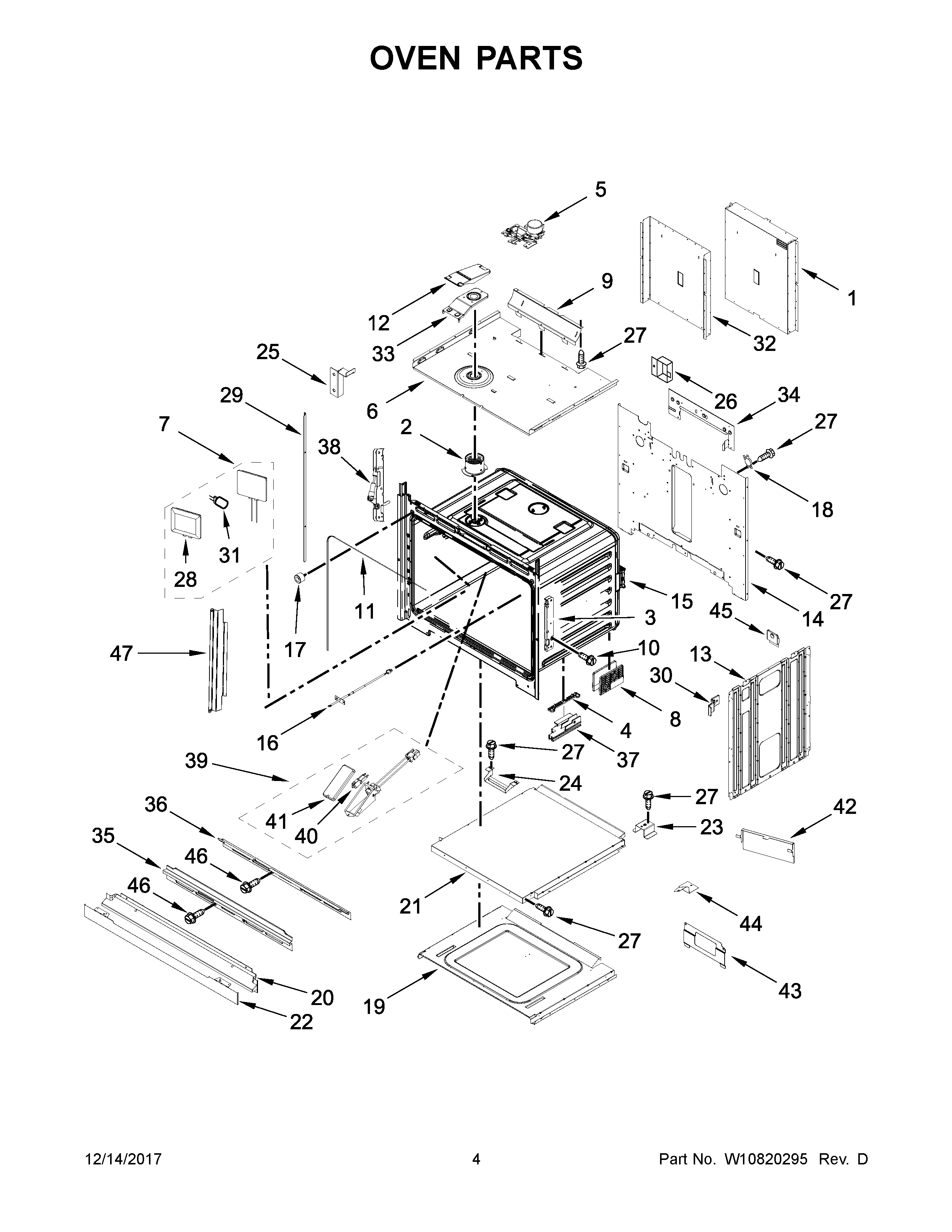

JJW3830DP01 03 – OVEN PARTSadmin2025-04-26T09:31:01+00:00JJW3830DP01 03 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | INSULATION, WRAP |
| NI | INSULATION, CAVITY |
| NI | INSULATION, CONTROL KNOB |
| 1 | DUCT, CHASSIS BACK |
| 2 | MAY W10282946 |
| 3 | MAY W10616802 |
| 4 | SPACER, BASE |
| 5 | LATCH, MOTORIZED |
| 6 | MAY W10813743 |
| 7 | ASSEMBLY, OVEN LIGHT |
| 8 | FOOT, BASE |
| 9 | MAY W10641572 |
| 10 | MAY W10254050 |
| 11 | GASKET |
| 12 | COVER, VENT EXHAUST |
| 13 | SIDE, CHASSIS (LEFT) |
| 13A | SIDE, CHASSIS (RIGHT) |
| 14 | MAY W10282992 |
| 16 | MAY W10622170 |
| 17 | BUMPER & SCREW |
| 18 | THERMOSTAT |
| 19 | BASE, CHASSIS |
| 20 | ASSEMBLY, BOTTOM VENT (STAINLESS) |
| 21 | CHASSIS, BOTTOM DUCT |
| 22 | TRIM, BOTTOM VENT (STAINLESS) |
| 23 | MAY W10213759 |
| 24 | SPACER, CHASSIS BOTTOM DUCT |
| 25 | BRACKET, SIDE COVER (LEFT) |
| 25A | BRACKET, SIDE COVER (RIGHT) |
| 26 | MAY 8285593 |
| 27 | MAY 7101P426- 60 |
| 28 | LENS, LIGHT |
| 29A | COVER, SIDE TRIM (RIGHT) |
| 29 | COVER, SIDE TRIM (LEFT) |
| 30 | SPACERS, FRONT |
| 31 | BULB, LIGHT |
| 32 | DUCT, CHASSIS BACK (LOWER) |
| 33 | BASE, VENT EXHAUST |
| 34 | MAY W10588736 |
| 35 | MAY W10283040 |
| 36 | VENT, TOP 30" |
| 37 | MAY W10618103 |
| 37A | MAY W10618104 |
| 38 | RECEIVER, HINGE |
| 39 | ASSEMBLY, LIGHT (TOP) |
| 40 | BULB, OVEN |
| 41 | LENS |
| 42 | SHIELD, INNER |
| 43 | SHIELD, OUTER |
| 44 | SHIELD. BOTTOM (LEFT) |
| 44A | SHIELD. BOTTOM (RIGHT) |
| 45 | SPACER, CENTER |
| 46 | MAY W10607120 |
| 47 | SHIELD, FRONT FRAME HEAT |
