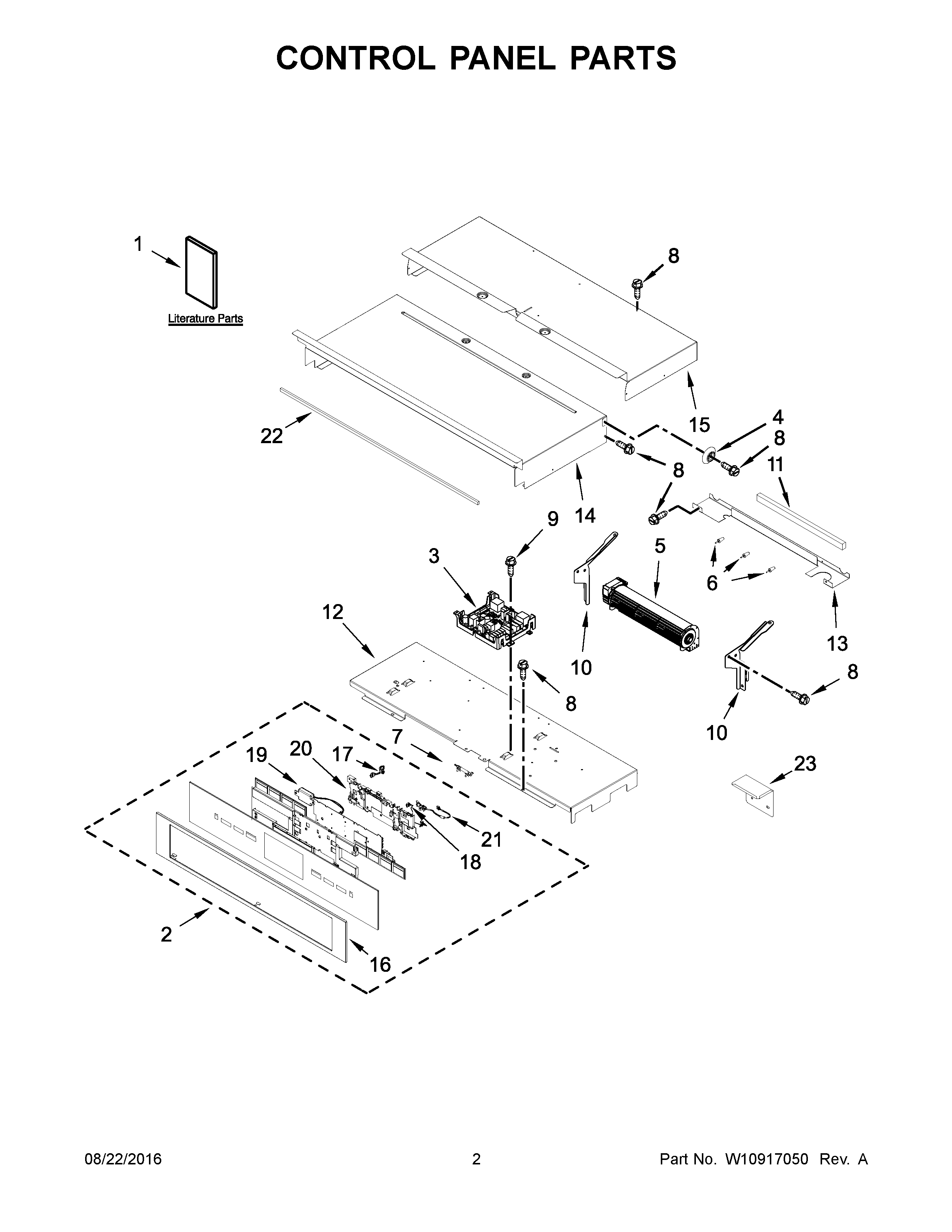

JJW3830DS02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	HARNESS, EOL
NI	BRACKET, HARNESS
NI	MAY W10775068
NI	STRAP, LEAD GROUND
NI	MAY W10679413
NI	MAY W10522152
NI	HARNESS, MAIN
NI	ASSEMBLY, ANTENNA & HOUSING
NI	CLAMP, CONDUIT
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 4450800
1	GUIDE, USE & CARE
1B	GUIDE, WIFI CONNECTIVITY
1C	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION
2	MAY W10876350
3	MANAGER, APPLIANCE
4	SPACER, LATERAL
5	BLOWER
6	MAY W10351295
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	TRAY, ELECTRONIC
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 30
15	CHASSIS, COVER TOP BACK 30"
16	SKIN, CONTROL PANEL (STAINLESS)
17	HARNESS, KEYPAD (LEFT TO CENTER)
18	HARNESS, KEYPAD (RIGHT TO CENTER)
19	ASSEMBLY, SPEAKER
20	HOUSING
21	JUMPER HARNESS, POWER SUPPLY
22	GASKET, RUBBER
23	SHIELD, WIFI ACCESS
