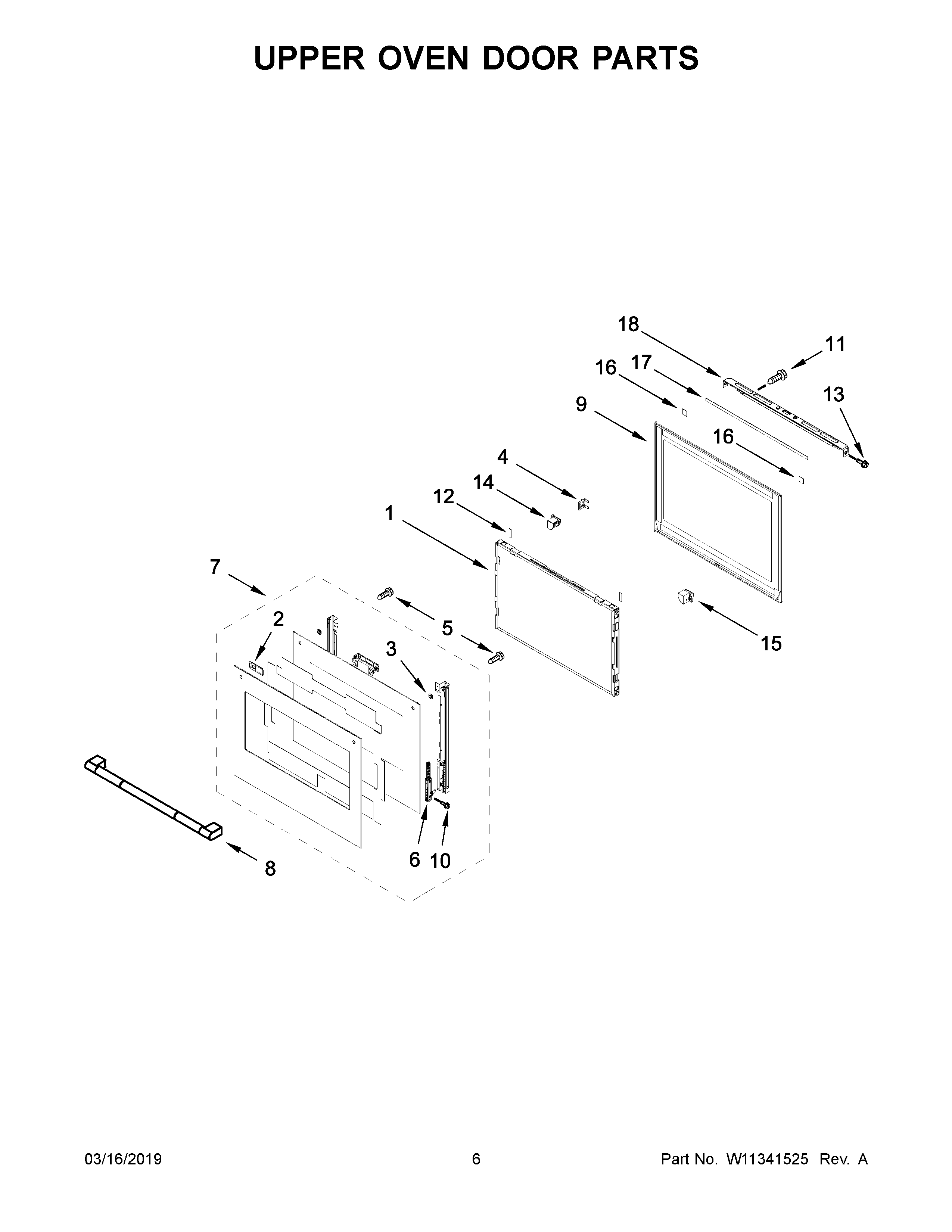

JJW3830IL00 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, WINDOW PACK
2	SPACER, HANDLE
3	WASHER, DOOR
4	CLIP, SPRING
5	SCREW
6	HINGE, DOOR
7	ASSEMBLY, DOOR (STAINLESS)
8	ASSEMBLY, HANDLE (STAINLESS)
9	ASSEMBLY, GLASS CAVITY
10	SCREW
11	MAY 7101P427-60
12	SPACER
13	SCREW WITH WASHER
14	BRACKET, DOOR (LEFT)
15	BRACKET, DOOR (RIGHT)
16	SPACER, VENT
17	PAD, VENT
18	VENT, TOP METAL
