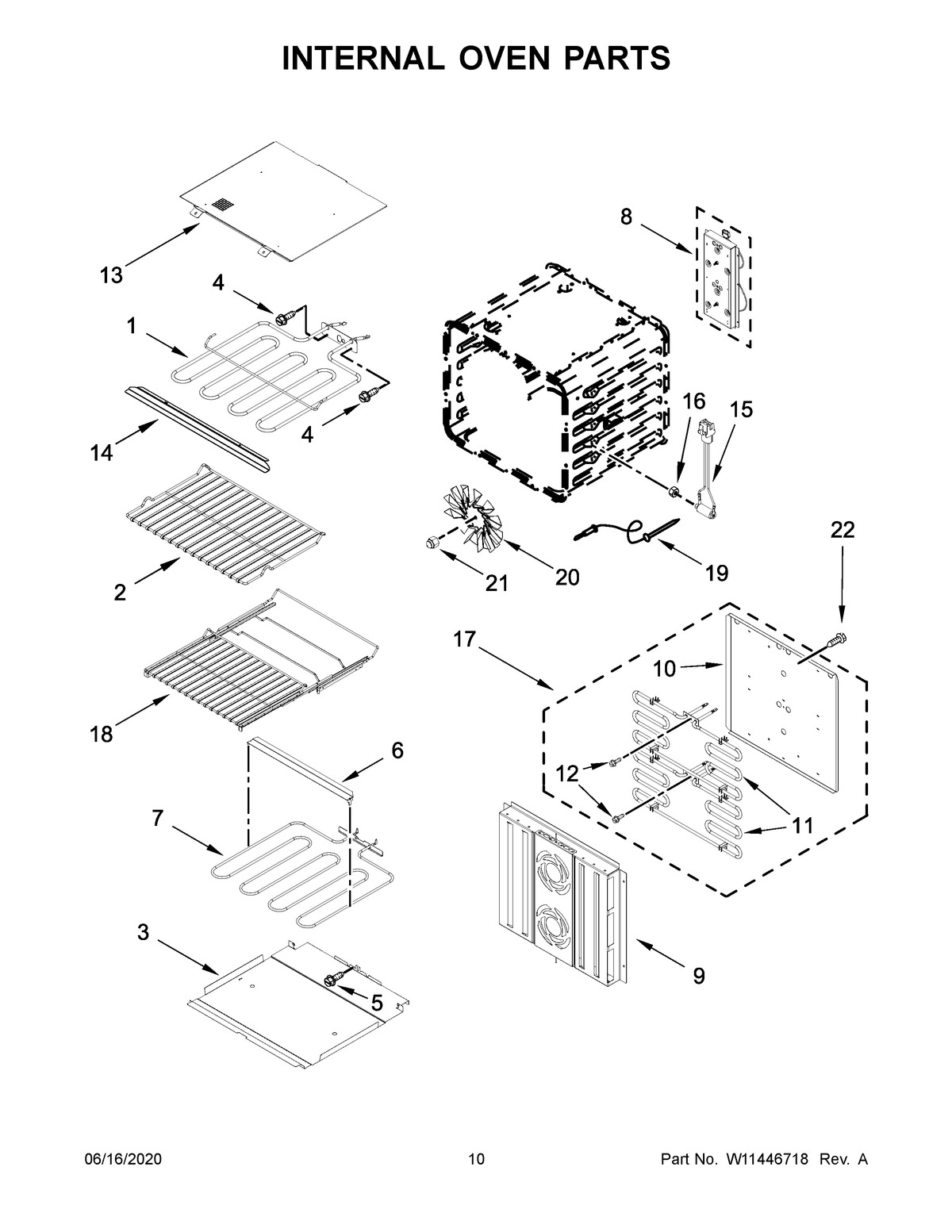

JJW3830IL01 06 – INTERNAL OVEN PARTS

JJW3830IL01 06 – INTERNAL OVEN PARTS

Written by

in

JJW3830IL01 06 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELEMENT, BROIL
2RACK, OVEN
3TRAY, HIDDEN BAKE
4MAY 7101P434-60
5MAY 7101P426- 60
6CROSSBAR, HIDDEN BAKE TRAY
7ELEMENT, BAKE
8ASSEMBLY, CONVECTION MOTOR
9ASSEMBLY, BAFFLE
10SHIELD, CONVECTION
11ELEMENT, CONVECTION
12MAY W10236129
13SHIELD, BROIL ELEMENT
14SHIELD, BROIL FRONT
15JACK, MEAT PROBE
16NUT, LOCKING
17ASSEMBLY, CONVECTION ELEMENT
18RACK, SLIDING
19PROBE-MEAT
20BLADE, CONVECTION FAN
21ANUT, ACORN (RH)
21MAY W10631504
22SCREW
