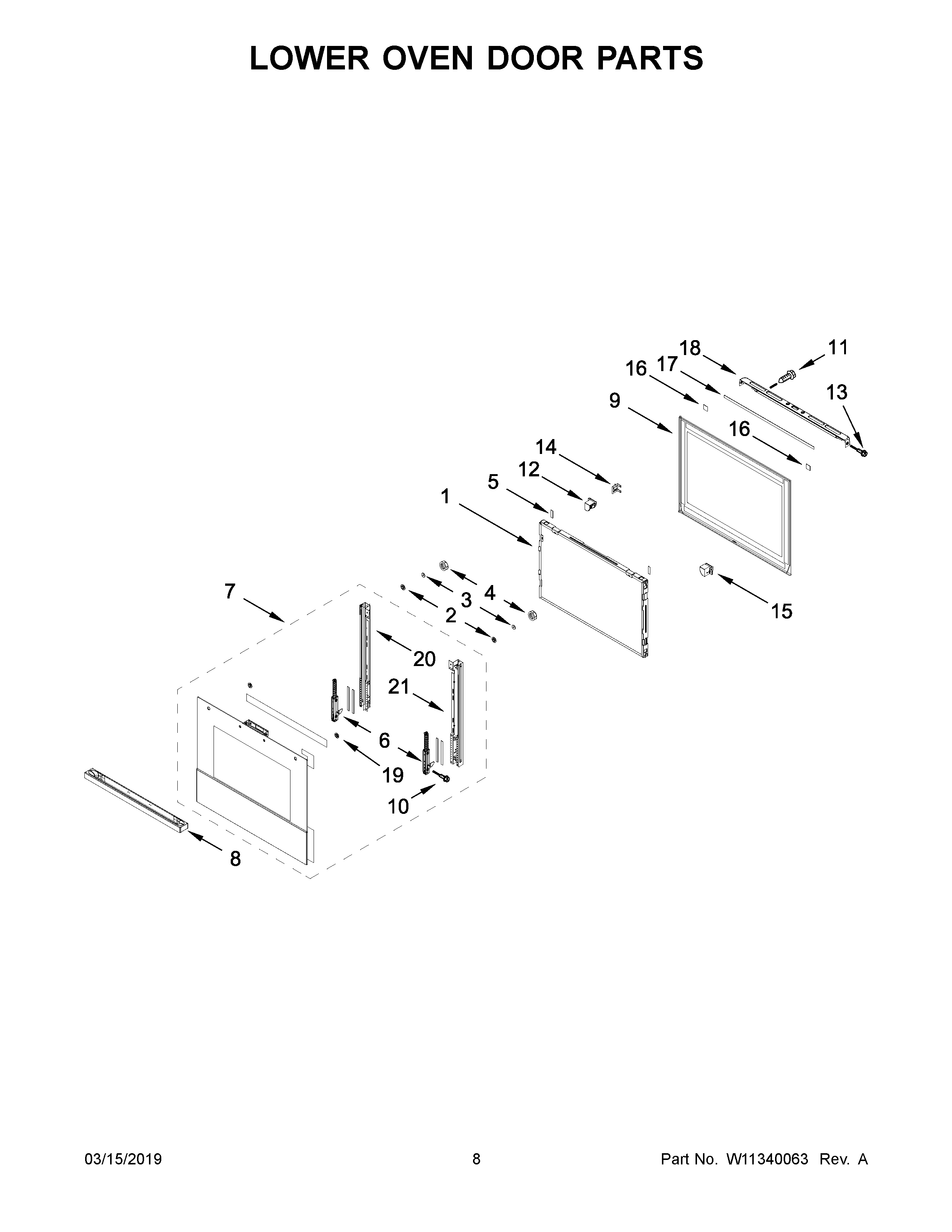

JJW3830IM00 05 – LOWER OVEN DOOR PARTS

JJW3830IM00 05 – LOWER OVEN DOOR PARTS

Written by

in

JJW3830IM00 05 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, WINDOW PACK
2	MAY W11132942
3	WASHER
4	NUT
5	SPACER
6	HINGE, DOOR
7	MAY W11199290
8	MAY W11250935
9	ASSEMBLY, GLASS CAVITY
10	SCREW
11	MAY 7101P427-60
12	BRACKET, DOOR (LEFT)
13	SCREW WITH WASHER
14	CLIP, SPRING
15	BRACKET, DOOR (RIGHT)
16	SPACER, VENT
17	PAD, VENT
18	VENT, TOP METAL
19	WASHER, DOOR
20	RAIL, DOOR SIDE (LEFT)
21	RAIL, DOOR SIDE (RIGHT)
