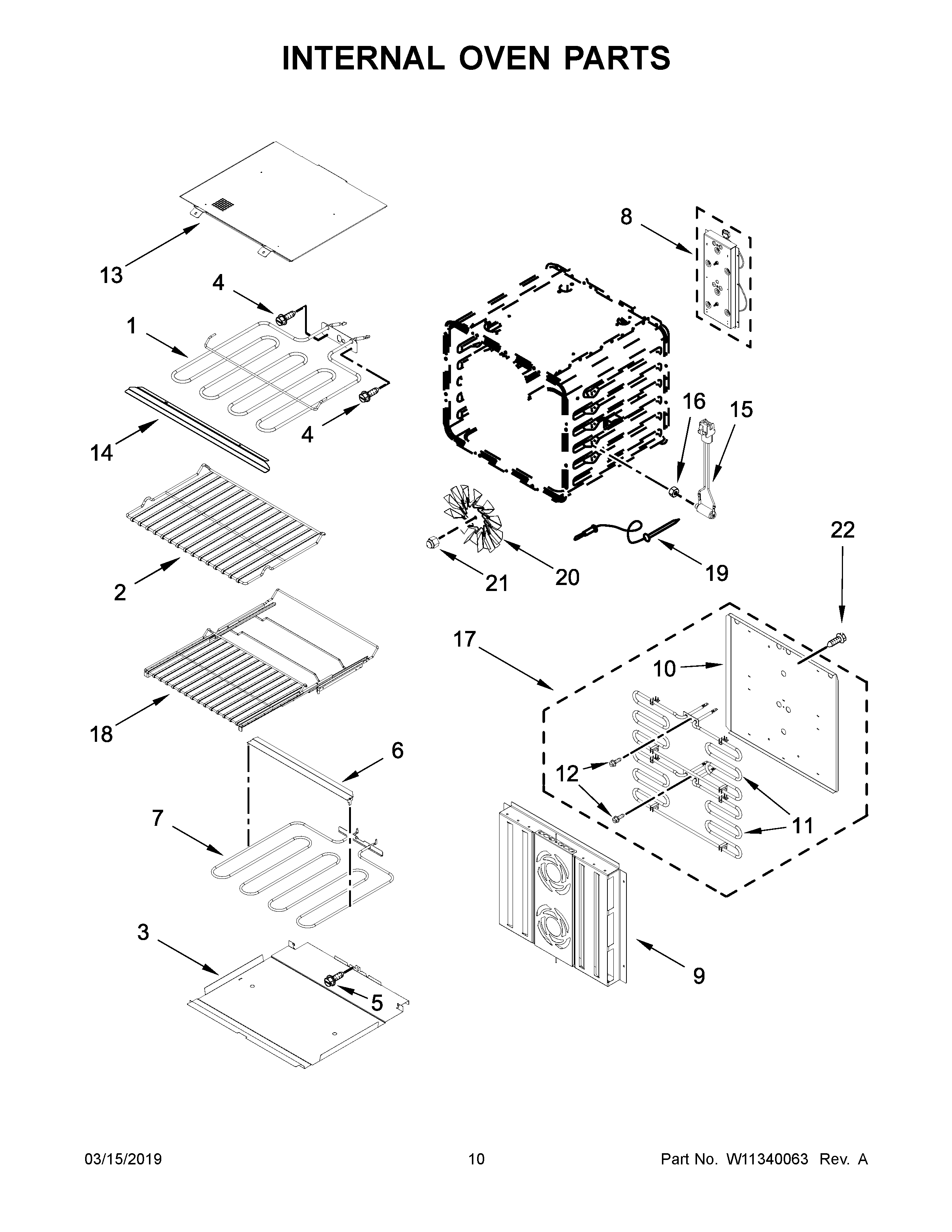

JJW3830IM00 06 – INTERNAL OVEN PARTSadmin2025-04-26T09:34:03+00:00JJW3830IM00 06 – INTERNAL OVEN PARTS
Products
| Position | Product |
|---|
| 1 | ELEMENT, BROIL |
| 2 | RACK, OVEN |
| 3 | TRAY, HIDDEN BAKE |
| 4 | MAY 7101P434-60 |
| 5 | MAY 7101P426- 60 |
| 6 | CROSSBAR, HIDDEN BAKE TRAY |
| 7 | MAY W10546517 |
| 8 | ASSEMBLY, CONVECTION MOTOR |
| 9 | ASSEMBLY, BAFFLE |
| 10 | SHIELD, CONVECTION |
| 11 | ELEMENT, CONVECTION |
| 12 | MAY W10236129 |
| 13 | SHIELD, BROIL ELEMENT |
| 14 | SHIELD, BROIL FRONT |
| 15 | JACK, MEAT PROBE |
| 16 | NUT, LOCKING |
| 17 | ASSEMBLY, CONVECTION ELEMENT |
| 18 | RACK, SLIDING |
| 19 | PROBE-MEAT |
| 20 | BLADE, CONVECTION FAN |
| 21A | NUT, ACORN (RH) |
| 21 | MAY W10631504 |
| 22 | SCREW |
