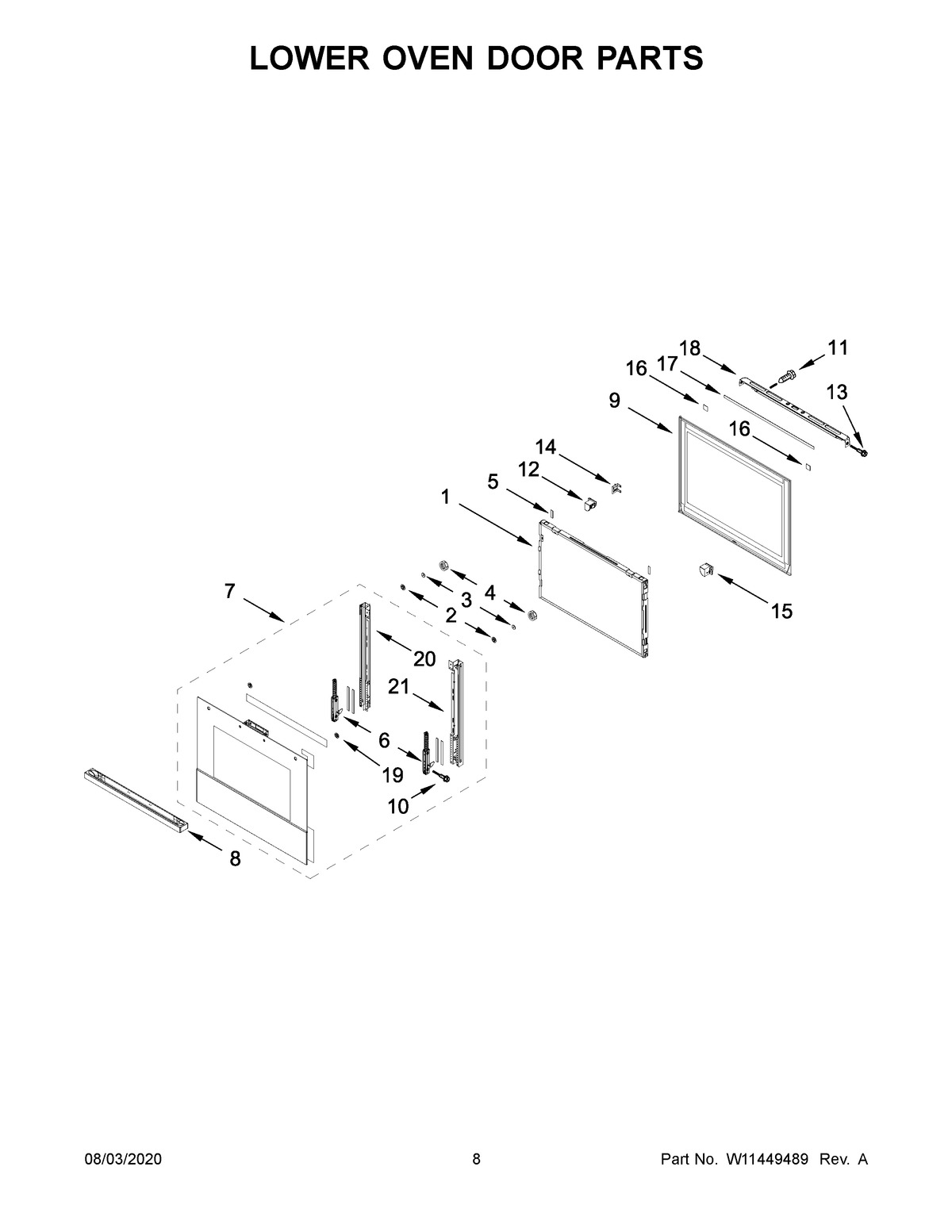

JJW3830IM01 05 – LOWER OVEN DOOR PARTSadmin2025-04-26T09:34:37+00:00JJW3830IM01 05 – LOWER OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | ASSEMBLY, WINDOW PACK |
| 2 | MAY W11132942 |
| 3 | WASHER |
| 4 | NUT |
| 5 | SPACER |
| 6 | HINGE, DOOR |
| 7 | MAY W11199290 |
| 8 | MAY W11250935 |
| 9 | ASSEMBLY, GLASS CAVITY |
| 10 | SCREW |
| 11 | MAY 7101P427-60 |
| 12 | BRACKET, DOOR (LEFT) |
| 13 | SCREW WITH WASHER |
| 14 | CLIP, SPRING |
| 15 | BRACKET, DOOR (RIGHT) |
| 16 | SPACER, VENT |
| 17 | PAD, VENT |
| 18 | VENT, TOP METAL |
| 19 | WASHER, DOOR |
| 20 | RAIL, DOOR SIDE (LEFT) |
| 21 | RAIL, DOOR SIDE (RIGHT) |
