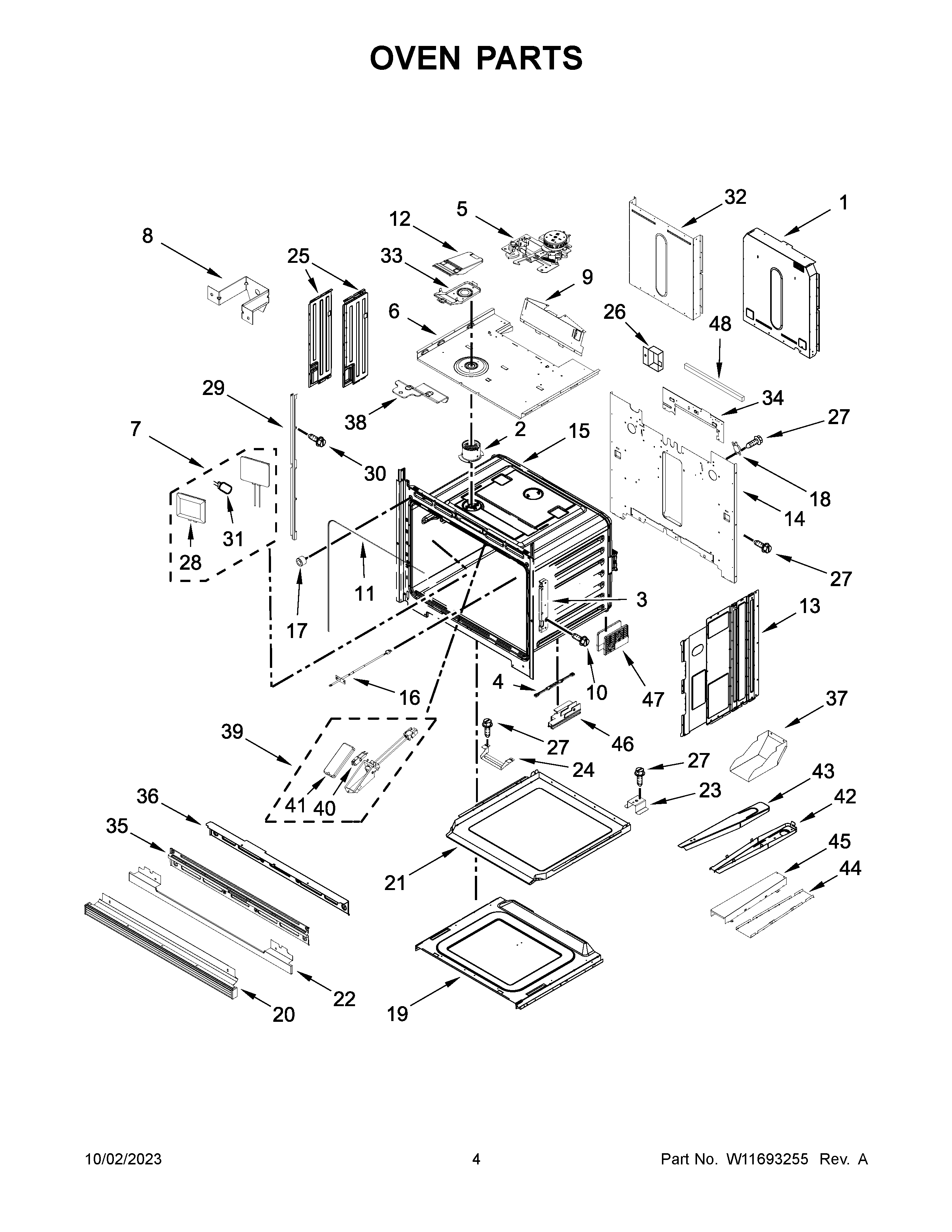

JJW3830LL01 03 – OVEN PARTS

JJW3830LL01 03 – OVEN PARTS

Written by

in

JJW3830LL01 03 – OVEN PARTS

Products

PositionProduct
NIINSULATION, TOP BACK
NIFOLLOWING PARTS NOT ILLUSTRATED
NIINSULATION, WRAP
1W11165250 Whirlpool Rear Cover
2W11240525 Whirlpool Vent Tube
3W11712405 Whirlpool Receiver Hinge
3AW11712406 Whirlpool Receiver Hinge
4W11598152 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11292252 Whirlpool Oven Light
8HAT BRACKET, VENT
9W10904163 Whirlpool Vent Deflector
10WPW10254050 Whirlpool Screw
11W11692454 Whirlpool Gasket
12COVER, VENT EXHAUST
13W11165274 Whirlpool Side Panel
14BACK, CHASSIS (NOT SERVICED)
15LINER, OVEN (NOT SERVICEABLE)
16W11598120 Whirlpool Thermostat
17W11598125 Whirlpool Bumper
18WP4449751 Whirlpool Range Oven Thermostat Fix
19COVR-ACESS
20W11369889 Whirlpool Heat Deflector
21COVR-ACESS
22W11598135 Whirlpool Trim
23SUPPORT, AIR CHANNEL
24SPACER, CHASSIS BOTTOM DUCT
25W11598150 Whirlpool Side Cover
25AW11598151 Whirlpool Side Cover
268285593 Whirlpool Oven Wire Cover
27SCREW
28WPW10519866 Whirlpool Light
29W11235460 Whirlpool Mounting Rail
29AW11235461 Whirlpool Rail Mounting
30W11602623 Whirlpool Screw
31WPW10472384 Whirlpool Light Bulb
32W11134657 Whirlpool Rear Cover
33BASE, VENT EXHAUST
34BRACKET, U-SHAPE
35W11235482 Whirlpool Exhaust Vent
36W11715951 Whirlpool Vent Trim
37DEFLECTOR, LOWER BACK EXHAUST
38BRACKET, TOP FRONT
39W11325525 Whirlpool Oven Light
40BULB-LIGHT
41W10169756 Whirlpool Light Lens
42BASE, TOP BACK EXHAUST
43COVER, TOP BACK EXHAUST
44BASE, LOWER BACK EXHAUST
45COVER, LOWER BACK EXHAUST
46W11598169 Whirlpool Foot Level Assembly
46AW11598168 Whirlpool Leveling Foot
47W11598170 Whirlpool Level Foot
48FOAM, U-BRACKET
