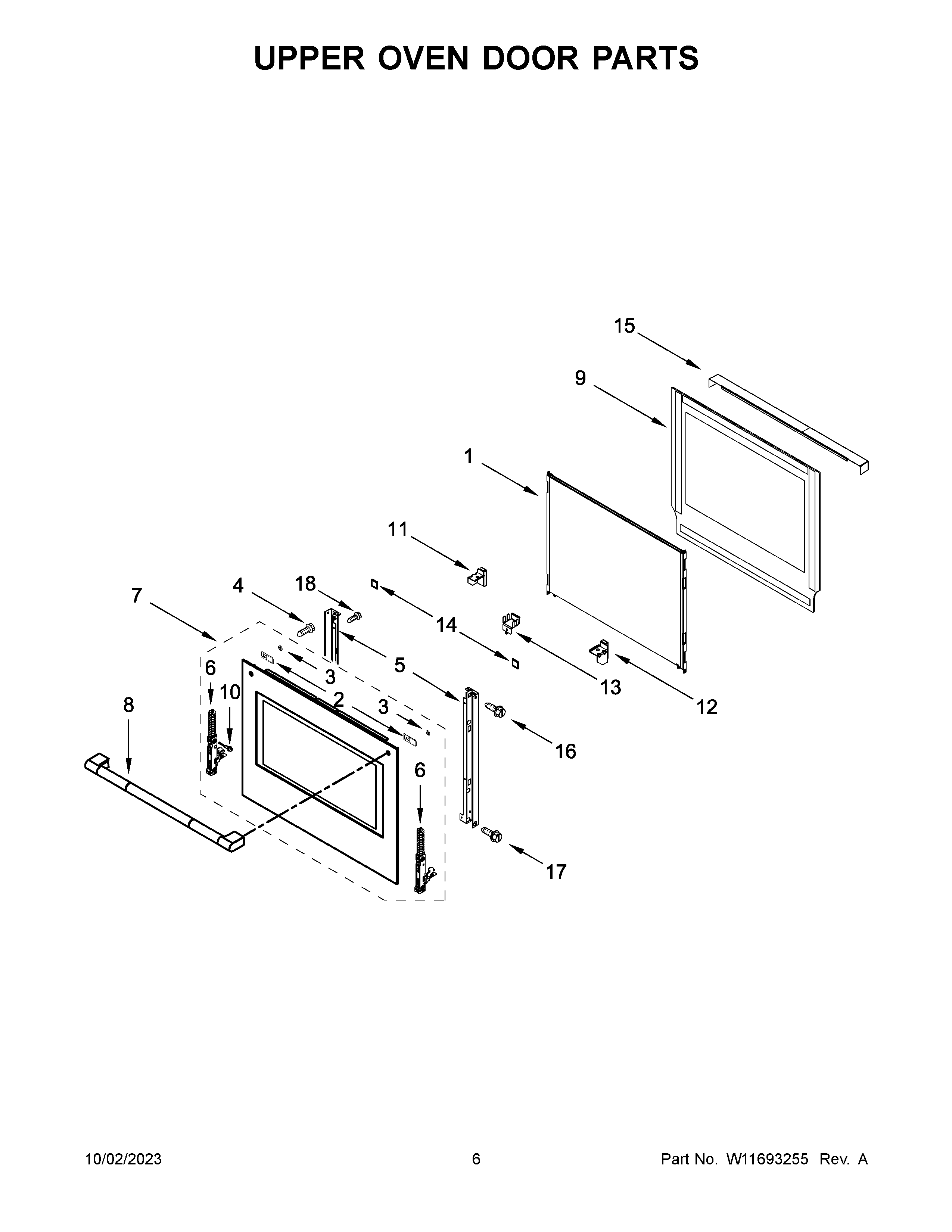

JJW3830LL01 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	W11600213 Whirlpool Oven Door Glass
2	W10650497 Whirlpool Spacer
3	W11676355 Whirlpool Washer
4	W11602624 Whirlpool Oven Screw
5	W11598126 Whirlpool Support Bracket
5A	W11598127 Whirlpool Support Bracket
6A	W11111222 Whirlpool Oven Door Hinge
6	W11111221 Whirlpool Oven Door Hinge
7	W11602609 Whirlpool Door Glass Assembly
8	W11342060 Whirlpool Door Handle
9	W11602610 Whirlpool Oven Glass Door
10	WP3196183 Whirlpool Screw
11	W11598130 Whirlpool Oven Support Bracket
12	W11598128 Whirlpool Oven Support Bracket
13	W11598131 Whirlpool Oven Clip
14	WPW10517428 Whirlpool Spacer
15	TRIM-VENT
16	WP694091 Whirlpool Screw
17	W11617225 Whirlpool Oven Screw
18	W10443110 Whirlpool Screw
