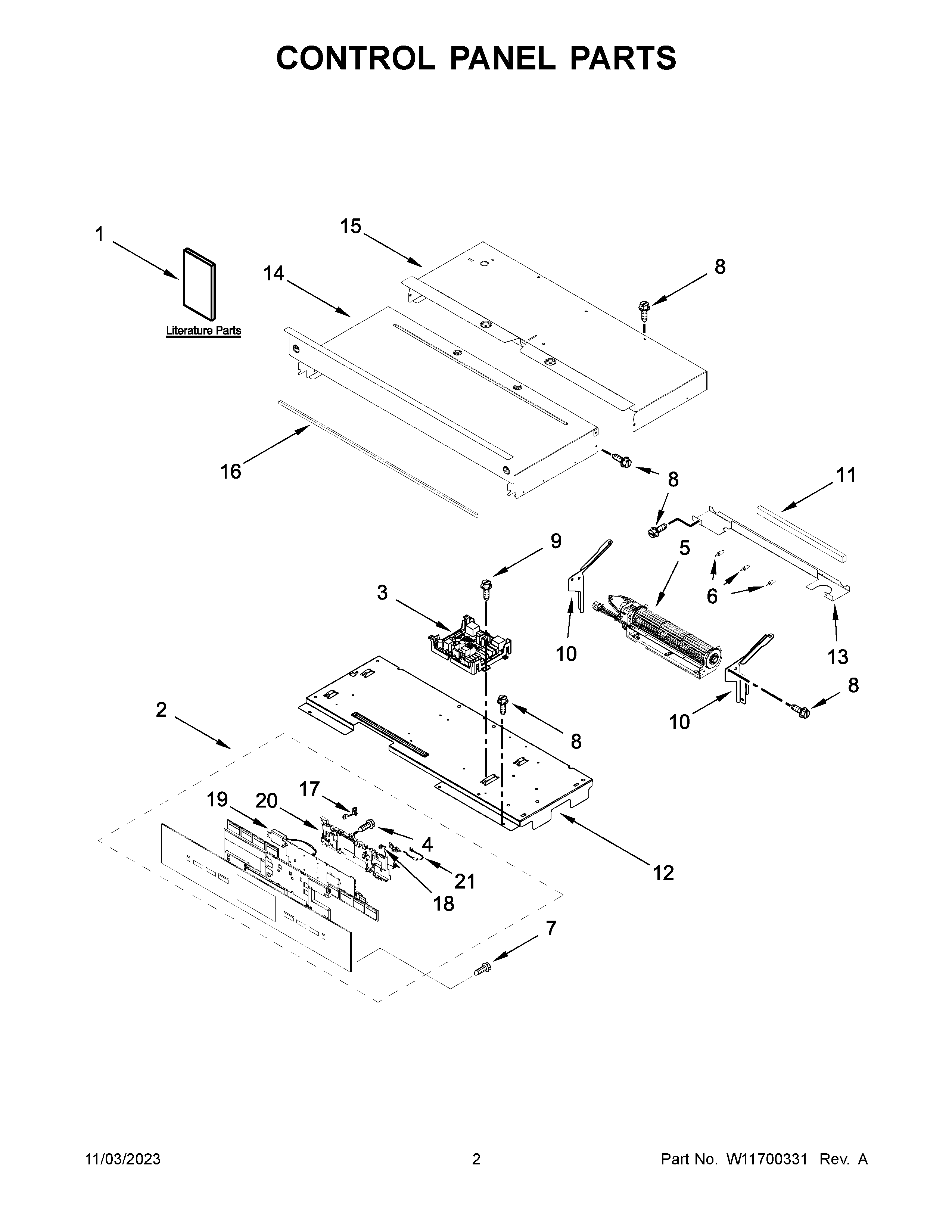

JJW3830LM01 02 – CONTROL PANEL PARTS

JJW3830LM01 02 – CONTROL PANEL PARTS

Written by

in

JJW3830LM01 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIHARNS-WIRE
NI4448664 Whirlpool Oven Mounting Bracket
NI4450800 Whirlpool Oven Screw
NIW10655464 Whirlpool Bracket
NIW11699910 Whirlpool Wire Harness
NIW11727826 Whirlpool Wire Harness
NIFOLLOWING PARTS NOT ILLUSTRATED
NISTRAP, LEAD GROUND
NI16515 Whirlpool Clip
NIHARNS-WIRE
NIW11602626 Whirlpool Oven Microwave Hardware
NIW11537624 Whirlpool Antenna Assembly
1BTECH SHEET
1OWNER'S MANUAL
1AQUICK START GUIDE
2W11598132 Whirlpool Console + Core
3W11448961-includeCORE Whirlpool W11448961 Refrigerator Electronic Control Board + Core
4W10489172 Whirlpool Screw
5BLOWER
6W10351295 Whirlpool Bumper Assembly
7SCREW (BLACK)
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12TRAY, ELECTRONIC
13DIVIDER, CHASSIS BACK
14COVER, CHASSIS TOP FRONT (30")
15COVER, 30 IN CHASSIS TOP BACK
16W10728475 Whirlpool Foam Seal
17W10566973 Whirlpool Wire Harness
18W10524350 Whirlpool Wire Harness
19W11123146 Whirlpool Speaker
20W10668510 Whirlpool Housing
21W10575307 Whirlpool Wire Harness
