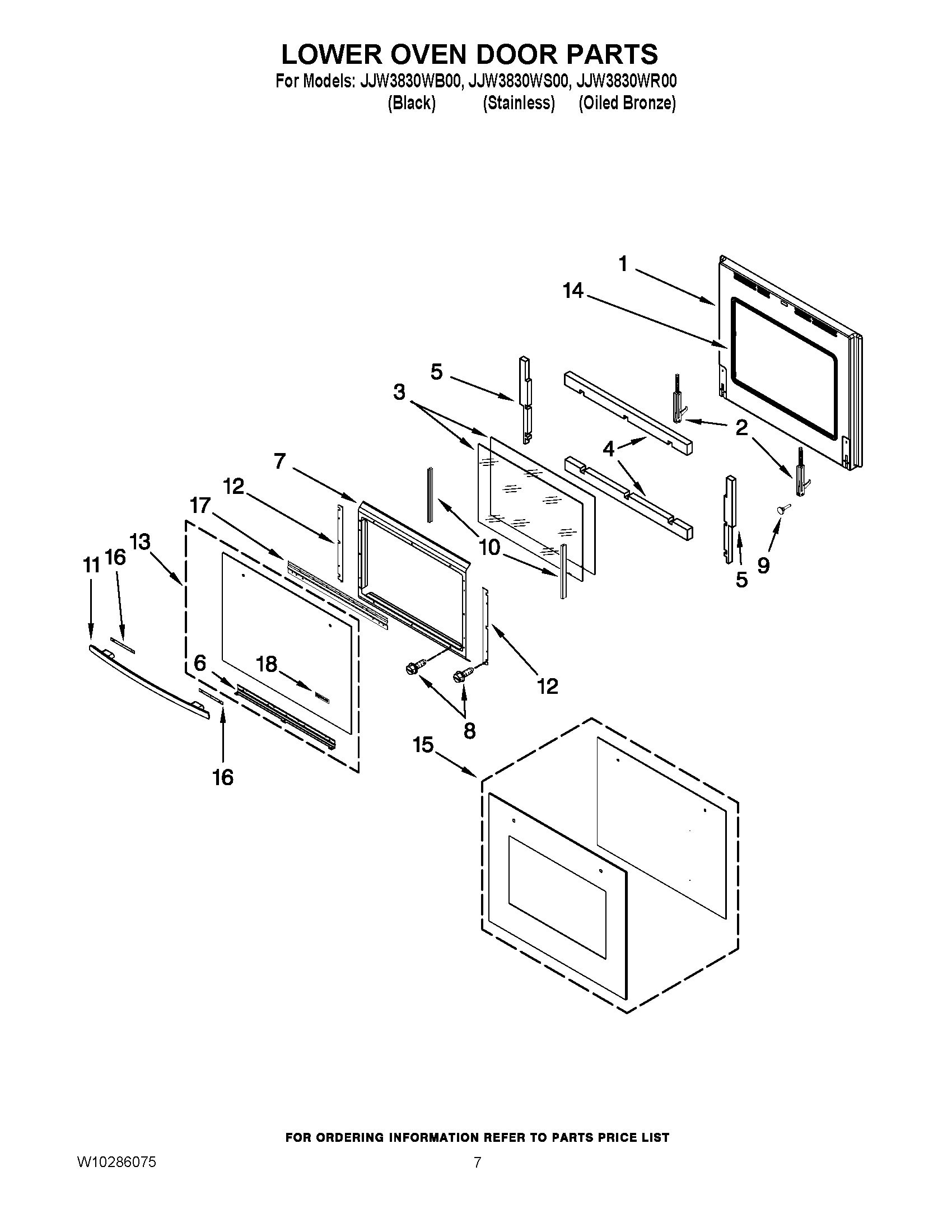

JJW3830WB00 04 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	MAY W10187019
2	HINGE, DOOR (2) (BLK/WHT/OILD BRNZ)
2	HINGE, DOOR (2) (STAINLESS)
3	MAY W10176100
4	MAY W10273676
5	MAY W10273591
6	BRACKET, DOOR CLIP
7	MAY W10176103
8	MAY 7101P426- 60
9	MAY W10176233
10	MAY W10277621
11	MAY W10186755
11	MAY W10186756
11	MAY W10186757
12	MAY W10186882
13	GLASS OUTER DOOR ASSY. (BLACK/OILED BRONZE)
13	MAY W10186890
14	MAY W10213803
15	MAY W10176224
15	KIT, GLASS ASSY. (STAINLESS)
16	MAY W10213722
17	MAY W10176126
18	ASSEMBLY, BADGE (BLACK)
18	ASSEMBLY, BADGE (OILED BRONZE)
18	ASSEMBLY, BADGE (STAINLESS)
