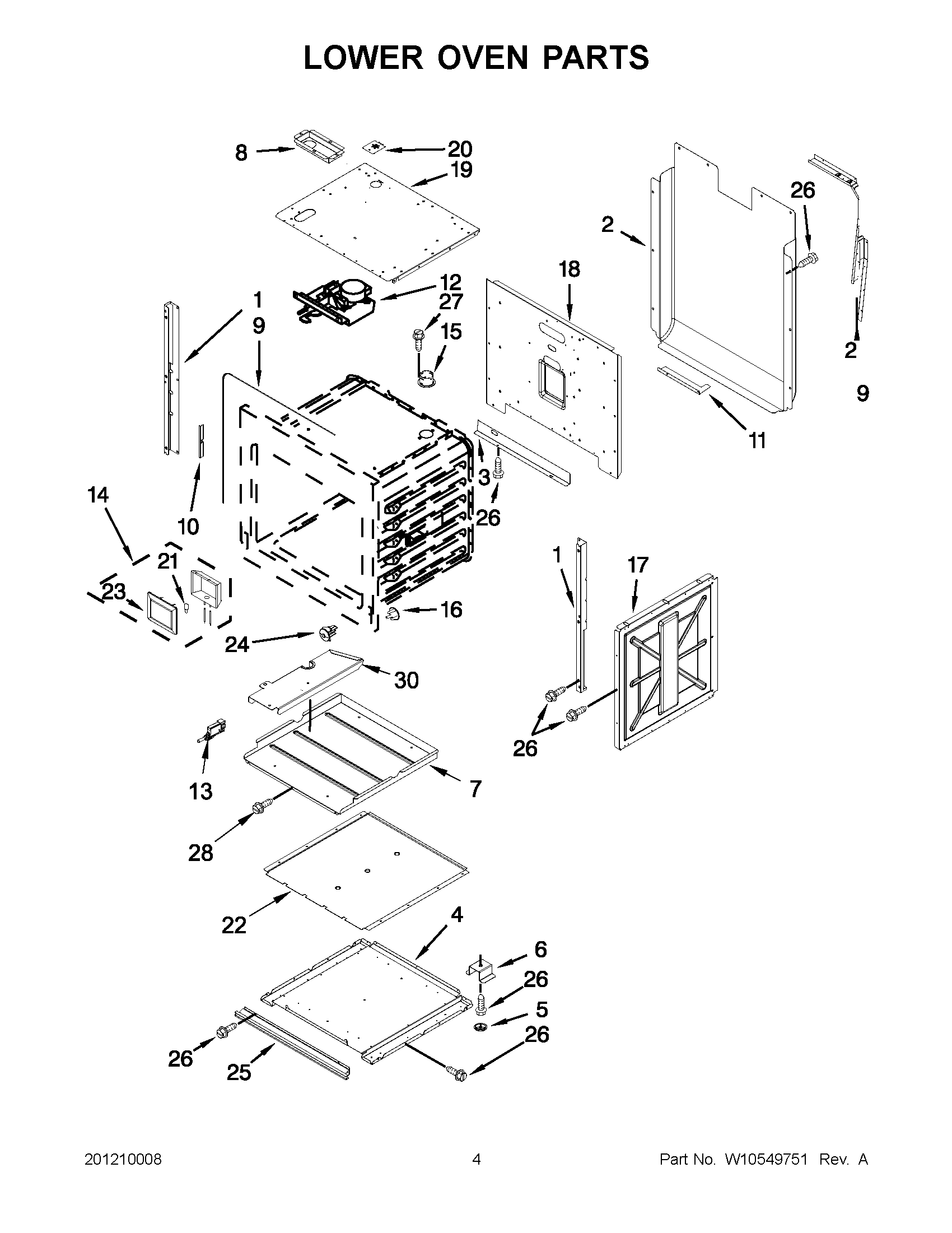

JJW3830WP02 02 – LOWER OVEN PARTS
Written by
in
JJW3830WP02 02 – LOWER OVEN PARTS
Products
Position
Product
NI
MAY W10186989
NI
LINER (NOT A SERVICEABLE PART)
NI
MAY W10175994
NI
MAY 7002P276-60
1
MAY W10277424
1
MAY W10277423
2
MAY 2624F043-51
3
BAFFLE, REAR
4
MAY W10280327
5
MAY 8038P035-60
6
MAY W10213759
7
MAY 3401F079-45
8
MAY 4006F236-45
9
MAY W10213818
10
MAY W10176218
11
MAY W10186984
12
LATCH, DOOR
13
MAY W10286173
14
MAY W10175989
15
MAY 8026P063-60
16
MAY 7718P033-60
17
MAY W10175995
18
MAY W10175997
19
MAY W10176000
20
MAY 4005F721-45
21
BULB, OVEN
22
CHANNEL, BTM AIR BAKE ELEMENT
23
MAY W10187003
24
MAY W10213745
25
MAY W10176036
26
MAY 7101P426- 60
27
MAY 7101P434-60
28
MAY W10236129
29
MAY W10251054
30
MAY W10254027
←
