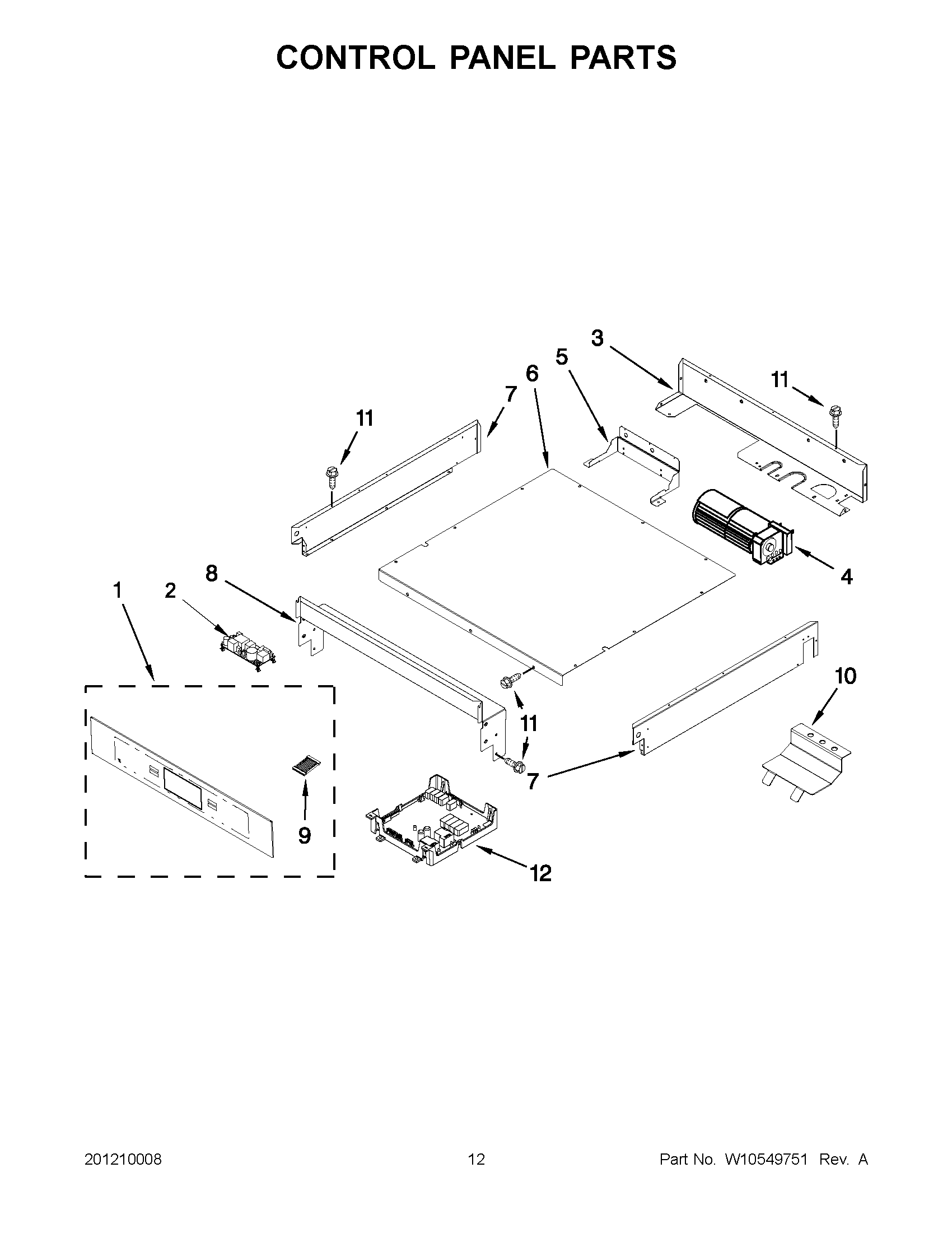

JJW3830WP02 06 – CONTROL PANEL PARTS

JJW3830WP02 06 – CONTROL PANEL PARTS

Written by

in

JJW3830WP02 06 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10517903
2CONTROL, ELEC
3MAY W10187048
4MAY W10273666
4BLOWER (UPPER)
5BRACKET, COOLING FAN UPPER
5MAY W10187016
6MAY W10176180
7PANEL, CONTROL BOX (RIGHT SIDE)
7PANEL, CONTROL BOX (LEFT SIDE)
8MAY W10512901
9MAY W10175829
10MAY W10176243
11MAY 7101P426- 60
12MANAGER, APPLIANCE
